Our store offers a curated selection of genuine Japanese products. You can shop with complete peace of mind knowing that all our items are authentic. Please note that the instructions and manual for this product may only be available in Japanese.
1. KEY FEATURES:
- MG90D Micro Servo - MG90D digital micro servo motor, MG90S SG90 9g servo motor upgrade.

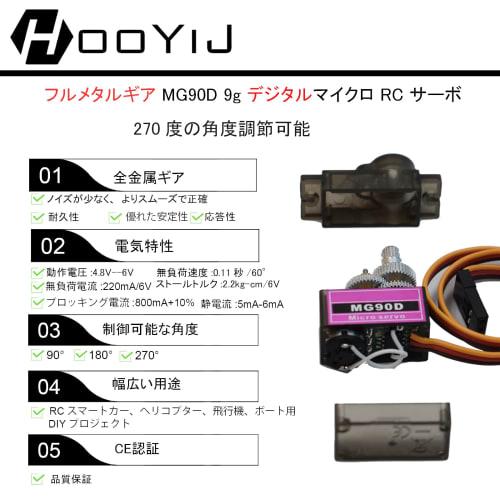

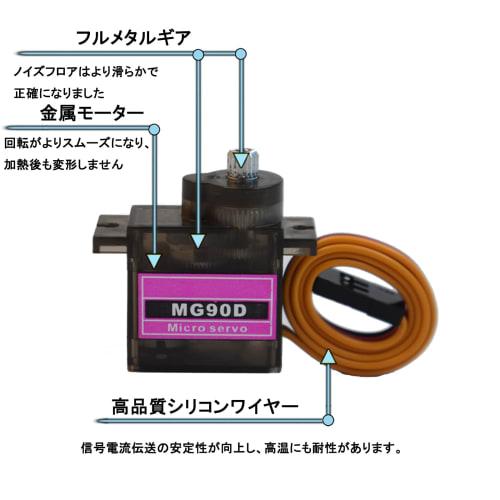

- Aluminum Metal Gear Servo - The internal structure is made of high quality all-metal material for better performance.Low noise, smooth, and highly accurate.Copper bearings - more stable and less wear.
- Wide Application - MG90D digital micro servo is perfect for those looking for a high quality, versatile and affordable servo motor.Widely used for RC planes, helicopters, fixed wings, quadcopters, RC cars, boats, automobiles, gliders, electronic DIY, small robots, robot kits, etc.
- Torque and Speed - Working voltage: 4.8V-6.0V, peak stall torque: 2.2kg/cm (6V).No-load speed: 0.12s/60°(4.8V)/ 0.09s/60°(6V);

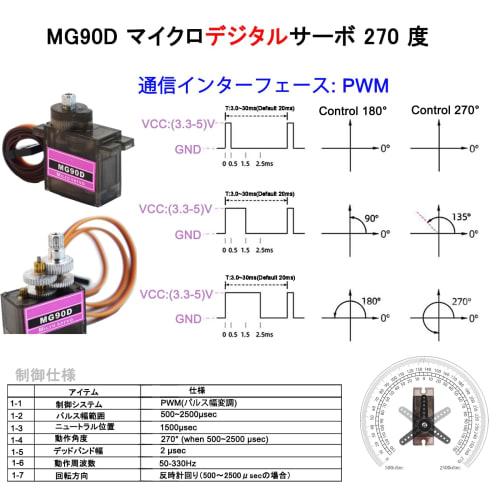

- PWM control system - The control system is PWM (pulse width modification).Pulse width range is 500-2500μs.Maximum working angle: 270°±3° for 500-2500μs.
2. PRODUCT DESCRIPTION:

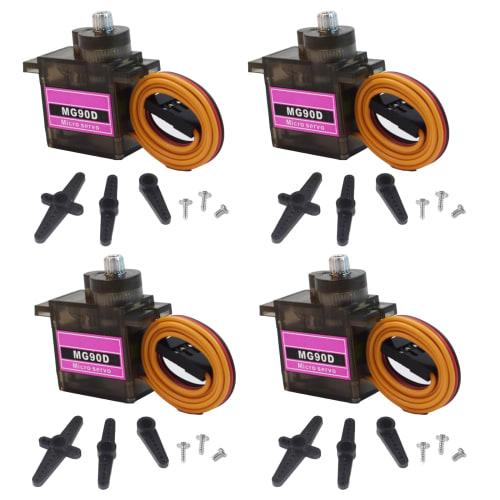

Product Description 4pcs MG90D 9G Digital Micro RC Servo Full Metal Gear Mini Servo Motor Upgrade SG90 for Arduino RC Smart Car Robot Arm 450 Aircraft Boat DIY Project Compatible with PWM500-2500 (270 Degree Angle Controllable) Product Specifications: Product Name: MG90D Digital Micro Servo Applicable Environmental Conditions Storage Temperature Range: -30°C to 80°COperating Temperature Range: -25°C~70°C Humidity Range: 65%±10% Mechanical Specifications Size: 22.4*12.1*22.8mm/ 0.88x0.47x 0.89in Weight: 13.5g±5% Gear Type: Full Metal Limiting Angle: 360° Bearing: None Horn Gear Spline: 20T (Diameter:4.9mm /0.19'') Horn Type: Plastic, POM Case: Engineering Plastic (PBT) Connector Wire: 250mm±5mm / 9.84''±0.02'' Motor: Carbon Brush Motor Splash Waterproof: None Electrical Characteristics Working Voltage: 4.8V -6.0V No Load Speed: 0.12sec/60° (4.8V), 0.09 seconds/60° (6V) No-load current: 90mA Peak stall torque: 2.2kg/cm (6V) Stall current: Max. 750mA ±10% (4.8V), Max. 860mA ±10% (6V ) Control characteristics Command signal: Pulse width change Amplifier type: Digital controller Signal period: 20ms Pulse width range:500 to 2500μsec Neutral position: 1500μsec Operating angle: 270°±3° (for 500 to 2500μsec) Operating angle: 135°±3° (for 500 to 1500μsec) Operating angle: 135°±3° (for 2500 to 1500μsec) Dead band width: 5μsec Rotation direction:Counterclockwise (when 1000-2000μsec) Connection: Red wire: Positive + Black wire: Negative - Brown wire: Signal S Package contents: 4 X MG90D 9g Digital Micro RC Servo 270° 4 X Accessories Set Friendly Reminder Please use standard PWM control signal.The signal period is 20 ms, and the high level time is 0.5 to 2.5 ms.The control angle of 270° MG90D 9g servo is adjustable.Can be stopped at any angle.The pulse width ranges from 500 to 2500 μsec.PWM500 to 2500 remote controls can only have half a stroke.Safety Warning Not applicable
3. PRODUCT DIMENSIONS & WEIGHT:
- Weight: 0.06 kg
- Dimensions: 13.6 x 10.4 x 2.3 cm
4. SPECIFICATIONS:
