Feature:
1. Adopt aluminum alloy heat sink shell, which is integrally formed for better heat dissipation
2. Silicone potting has better thermal conductivity, and resin potting is completely sealed, firm and stable
3. High frequency and high ripple filter capacitor, which is special customized electrolytic capacitor
4. High magnetic flux density filter inductance, and adopt high temperature imported iron silicon aluminum magnetic ring
5. Adopting SMT process, the resistance and capacitance MOS tubes are all SMD originals, which have high integration, high reliability and high stability
Specification:

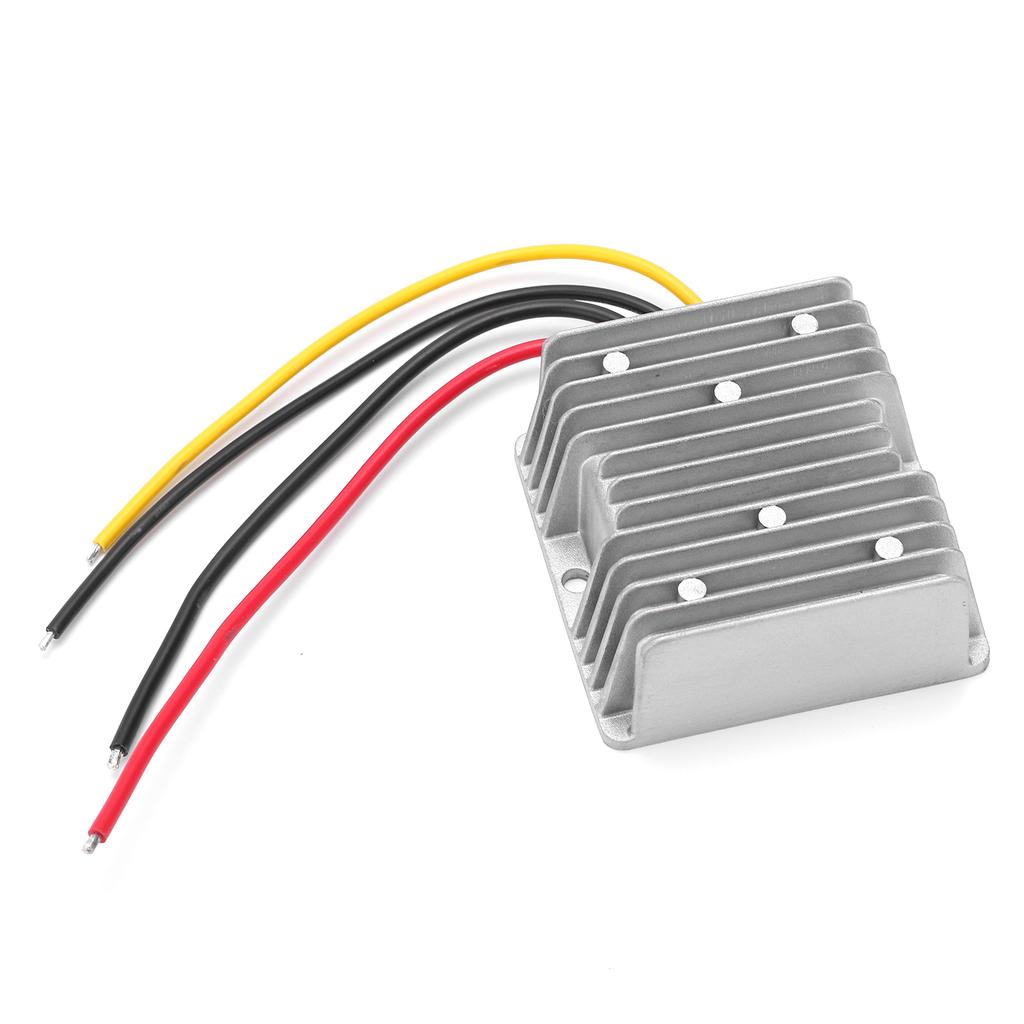

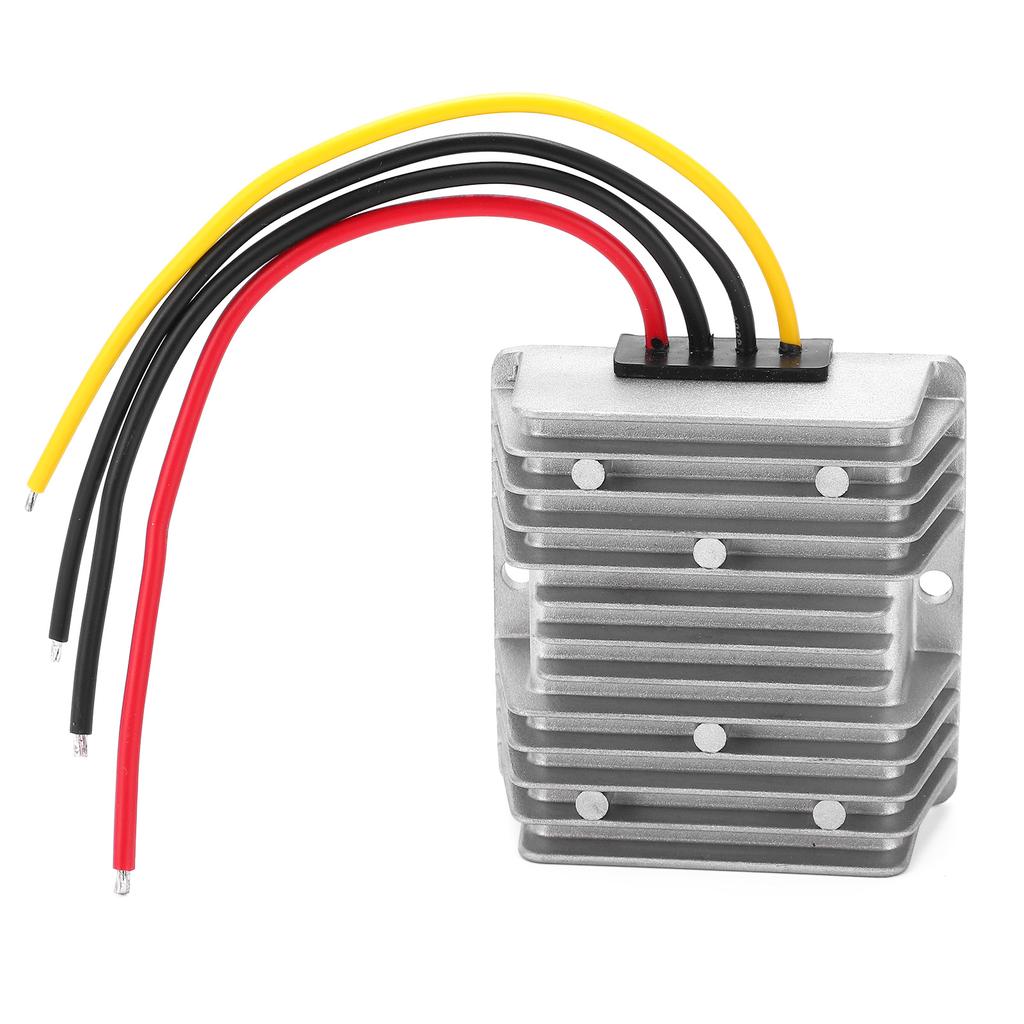

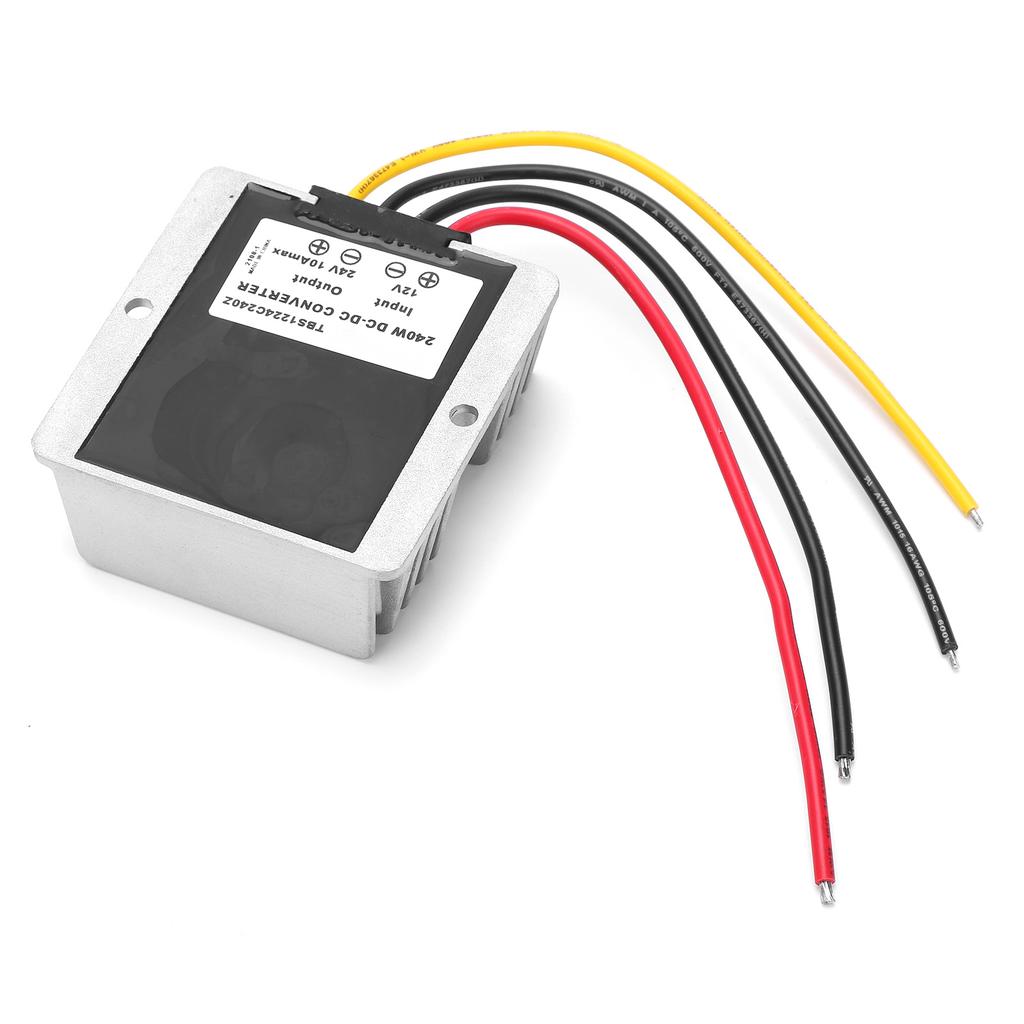

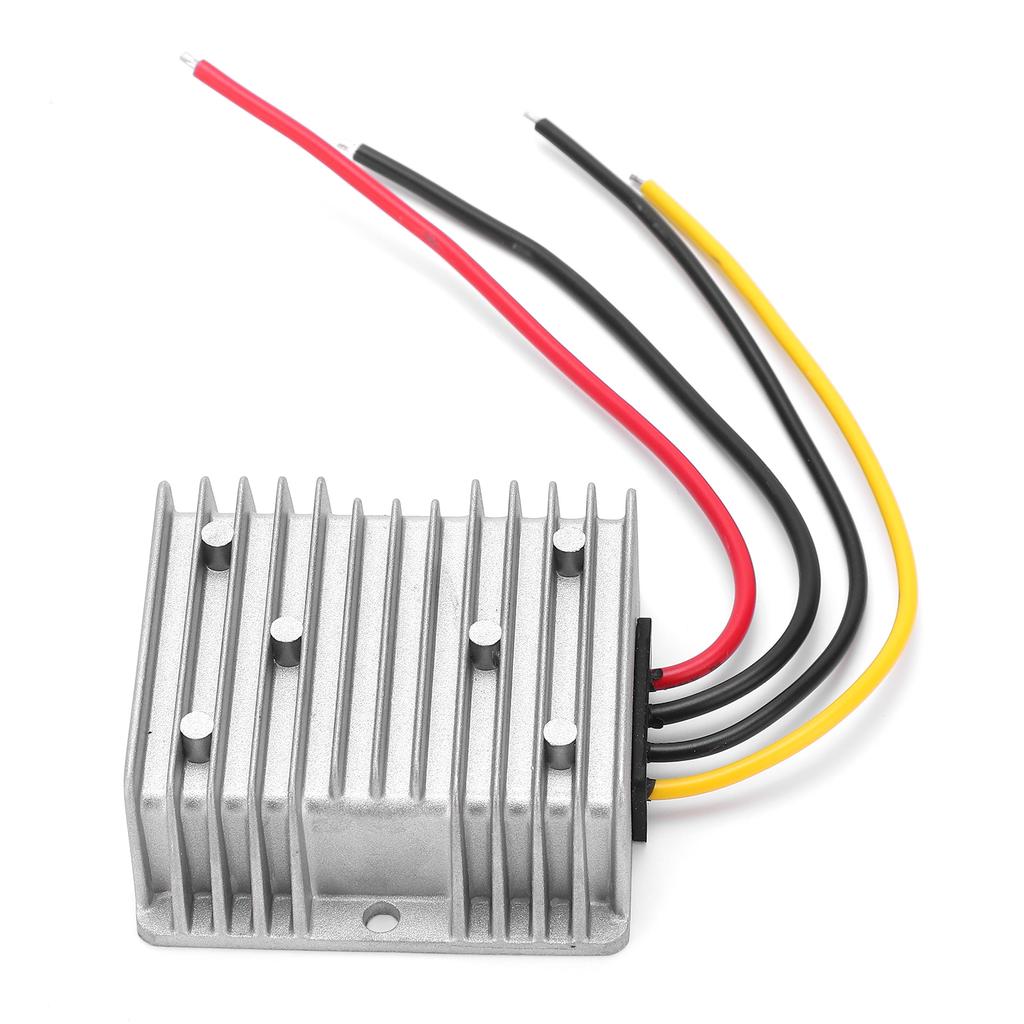

Item Type: DC Boost Voltage Converter
Model: TBS1224C240Z
Material: Diecast aluminum
Input Voltage Range: 1016V
Output Voltage: 24V
Output Current: 10A
Output Power: 240W
Product Shell Size: Approx. 74 x 74 x 32mm 2.9 x 2.9 x 1.3in
Working Temperature: 4080 celsius
Waterproof Rating: IP68
Uses: Motors, car navigation systems, recorders, photovoltaic panels, LED strips, bulbs, fans, cameras.
Package List:
1 x DC Boost Voltage Converter
Note:
1. Please correct wiring and installation, and confirm that the positive and negative polarities of the input and output are correct before powering on to work.2. The battery power at the input end is within the input voltage range and the power is sufficient to ensure the normal operation of the power converter.3. Please install in a well?ventilated environment to avoid over?temperature protection of the power converter due to heat accumulation.Adopt aluminum alloy heat sink shell, which is integrally formed for better heat dissipation
Silicone potting has better thermal conductivity, and resin potting is completely sealed, firm and stable
High frequency and high ripple filter capacitor, which is special customized electrolytic capacitor
High magnetic flux density filter inductance, and adopt high temperature imported iron silicon aluminum magnetic ring
Adopting SMT process, the resistance and capacitance MOS tubes are all SMD originals, which have high integration, high reliability and high stability
