Product Name

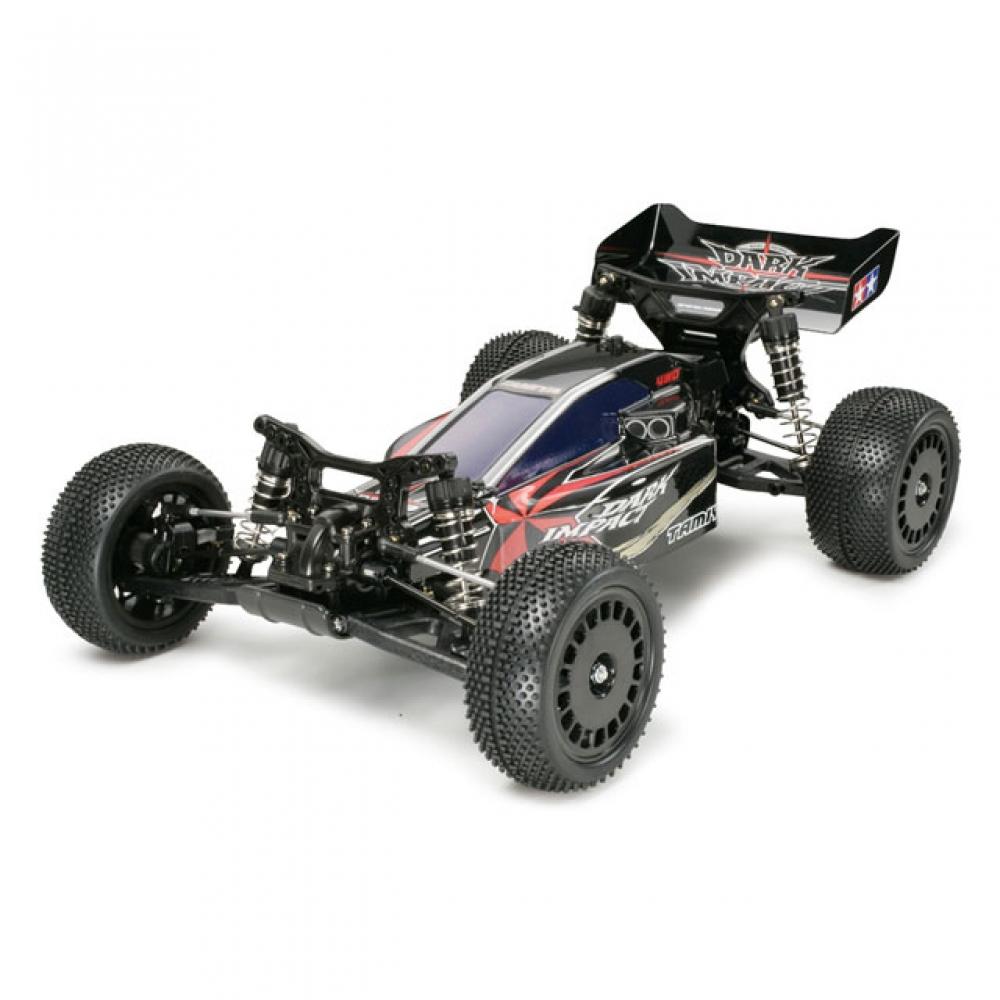

Tamiya 1/10RC Dark Impact Model DF-03
Brand Introduction
Tamiya is a Japanese brand renowned for its high-quality RC models and plastic models, boasting top-tier model manufacturing technology. It offers a diverse range of radio control cars and kits, recognized worldwide.
Product Description
【 Origin and Development 】 From the prototype stage, it was entrusted to the hands of works drivers, developed based on substantial data accumulated through many real battles. This is an electric radio-controlled buggy assembly kit born to compete in off-road races. While inheriting Tamiya's traditional shaft drive 4WD, it has been developed with a concept of efficiency in the driveline, optimal weight balance, and ample suspension stroke. The compact chassis allows for a slim and tightened body, while the rear wing is a large type integrated with the end plate, generating downforce to stabilize the rear. It is equipped with high-density spike K tires that offer excellent grip on various surfaces.
Instructions for Use
After assembly, connect the RC transmitter and receiver, install the required battery in the transmitter, and perform a test run to check performance. Recharge the battery as necessary before driving.
Specifications
- Overall Length: 387mm
- Overall Width: 250mm
- Overall Height: 145mm
- Minimum Ground Clearance: 24mm
- Wheelbase: 272mm
- Vehicle Weight: 1.156kg
- Tread: F217mm, R203mm
- Tire Width/Diameter: F33/87mm, R43/87mm
- Frame: Monocoque Design
- Drive Method: Shaft Drive 4WD
- Differential Gears: Front and Rear Ball Differential
- Steering: 3-Split Tie Rod Type
- Suspension: 4-Wheel Double Wishbone
- Dampers: F:CVA Oil Damper Mini, R:CVA Oil Damper Short
- Gear Ratio: 9.17:1
- Motor: RS540 Type
- Speed Controller: ESC Specification
Warnings
- Please note that a separate purchase of the following is necessary: Prop Set (transmitter, receiver, ESC, servo), battery, charger, paint for polycarbonate, and power supply for transmitter.
Additional Information
- Origin: Japan
- Color: No proper color indication due to mechanical parts characteristics
- Weight: 1.156kg
]]>
