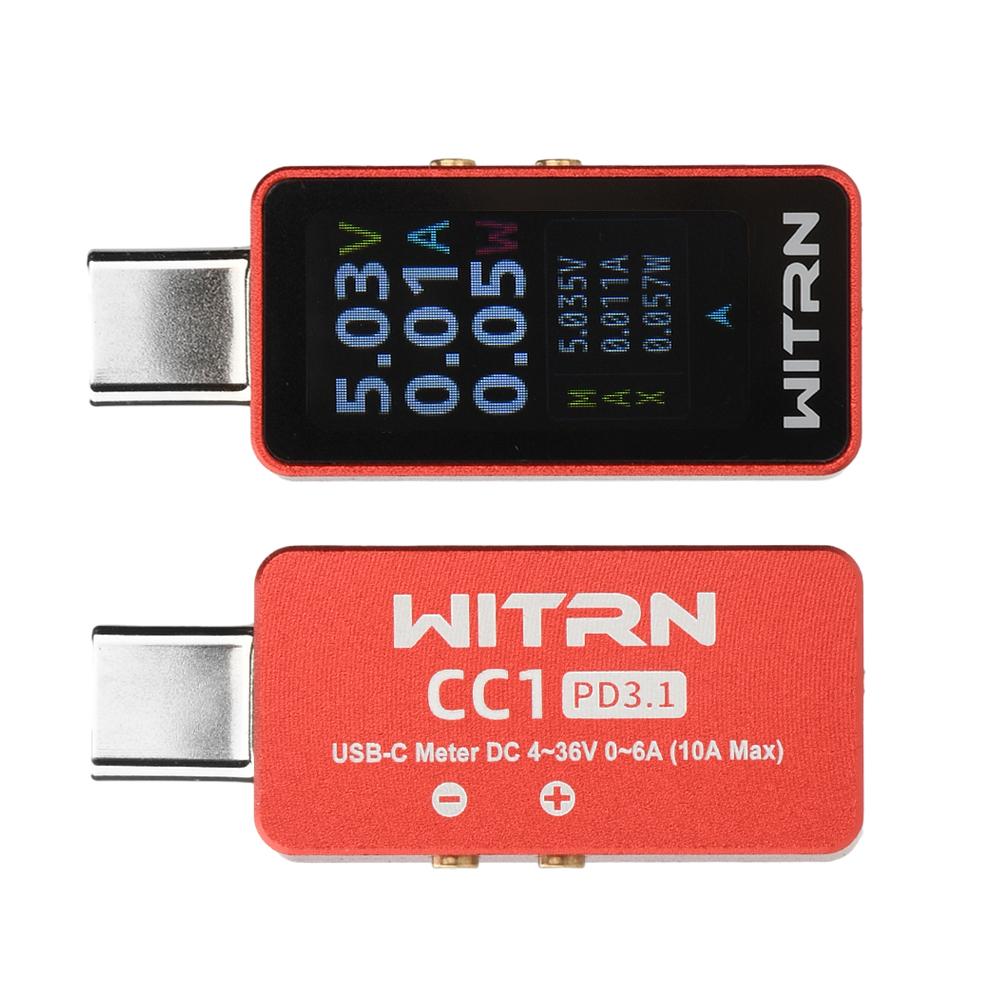

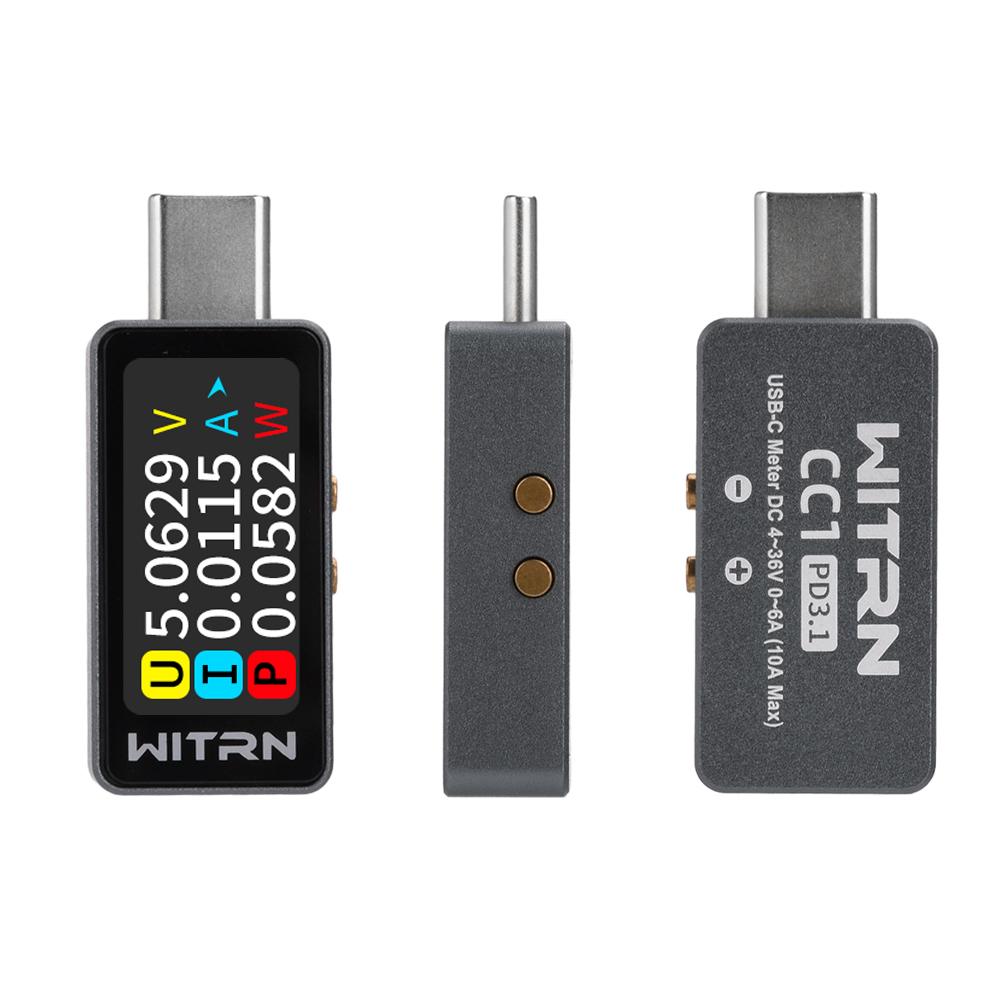

IPS Real Time Voltages and Current Readout Meter Module USB Type- C Interface for Battery Performances Analysis

High-concerned chemical : none Supply Voltage : As Description Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New

IPS Real Time Voltages and Current Readout Meter Module USB Type- C Interface for Battery Performances Analysis Features: 1. 0.96-inch IPS color screen: Wide viewing angle, clear readings even in dimly lit rooms. 2. Integrated voltage, current, power, capacity, and other electrical parameters for real-time viewing. 3. Current measurement: Bidirectional current measurement function (reverse insertion will measure and display the operating current). 4. Fast charging protocol display: Inferred from the D+D- voltage and the operating voltage and current, for reference only. 5. The screen will go black when plugged directly into a PD charger. It must be connected to a power device for operation.

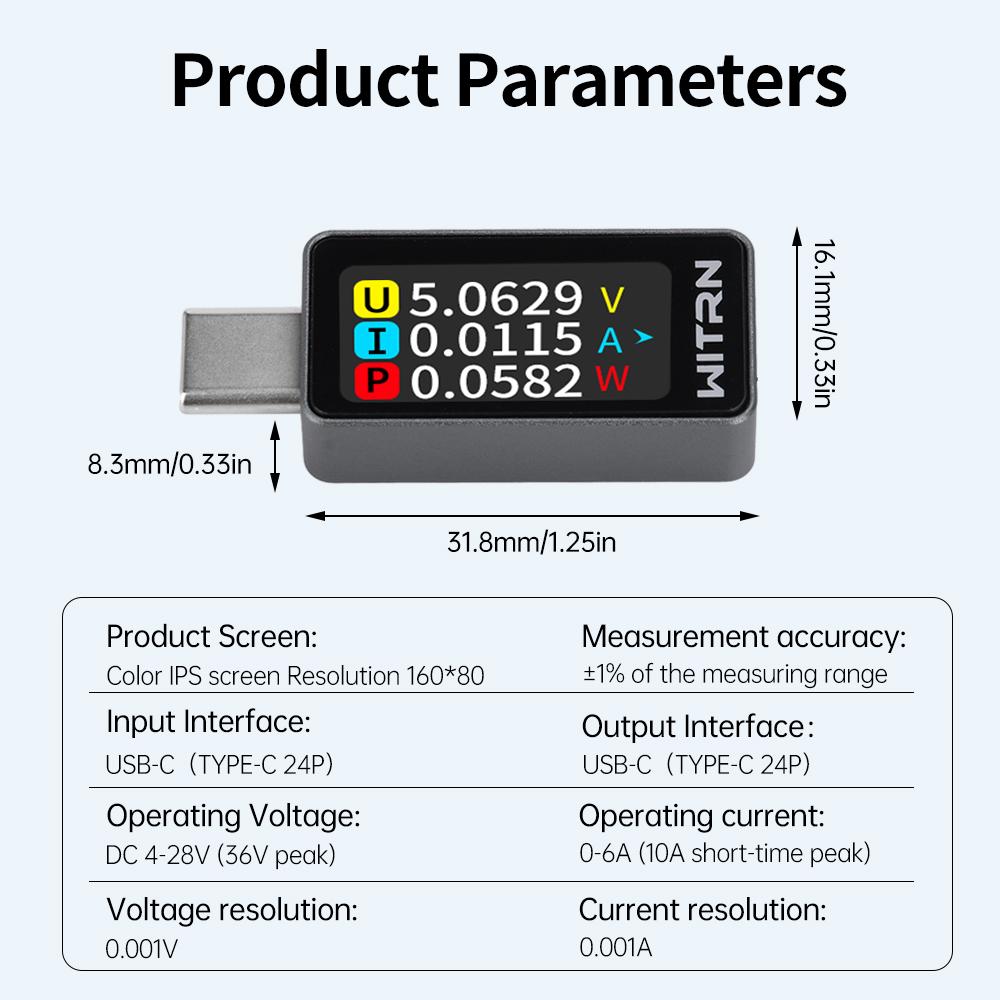

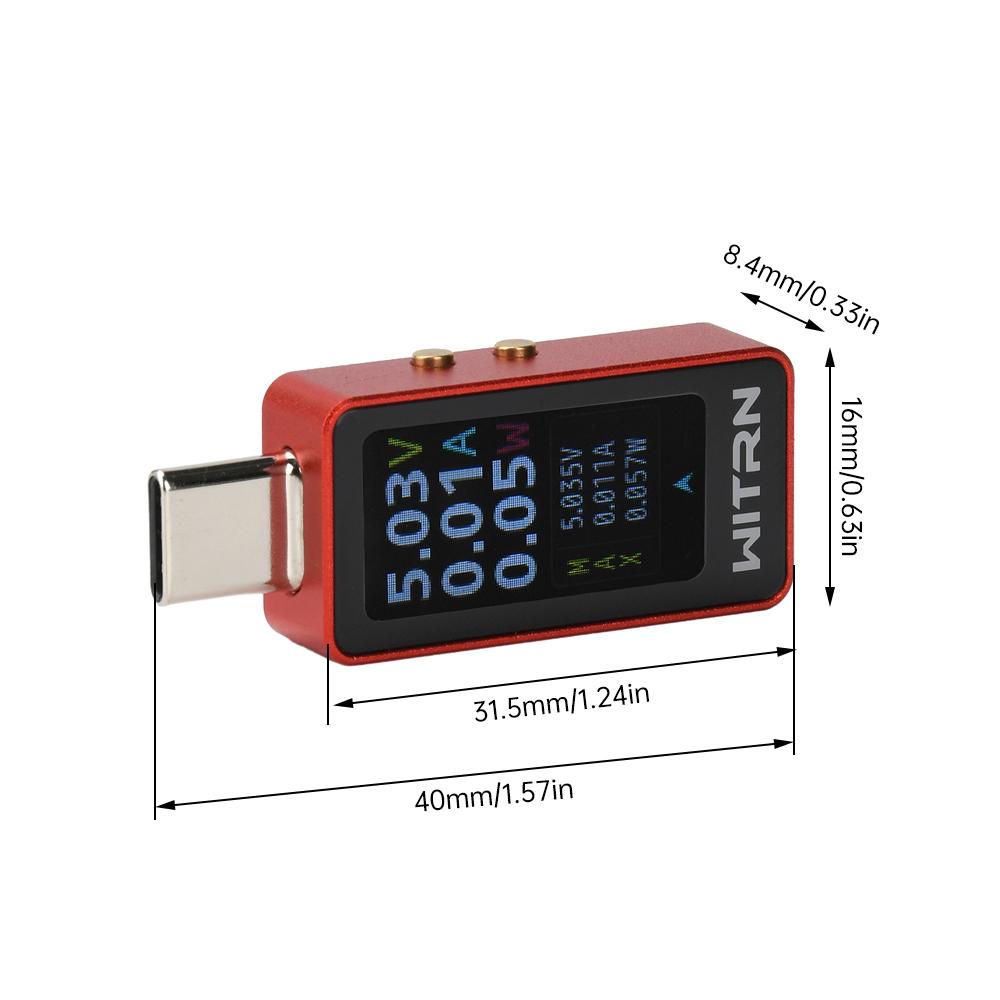

Product Specifications: Screen: Color IPS screen, 160*80 resolution Input: USB-C (Type-C 24P) Output: USB-C (Type-C 24P) Operating Voltage: DC 4-28V (peak 36V) Operating Current: 0-6A (short-term peak 10A) Voltage Resolution: 0.001V Current Resolution: 0.001A Capacity Recording: 0-9999Wh Measurement Accuracy: ±1% of range Dimensions: Approximately 31.8 x 16.1 x 8.1mm (excluding Type-C male connector)

Power = Voltage * Current, 36V * 10A = 360W (peak)

Package Included: Tester * 1 label:yes

Battery capacity: 43200 Charge indicator: No Number of ports: 1 port Quick charge: No Voltage: 1.5
