Quantity : 1
High-concerned chemical : none
Package : SOP
is_d : Yes
Supply Voltage : 5V
Type : Module
Brand Name : diymore
Origin : Mainland China
Condition : New
Operating Temperature : 0-50C
wholesale : support
dropshipper : support

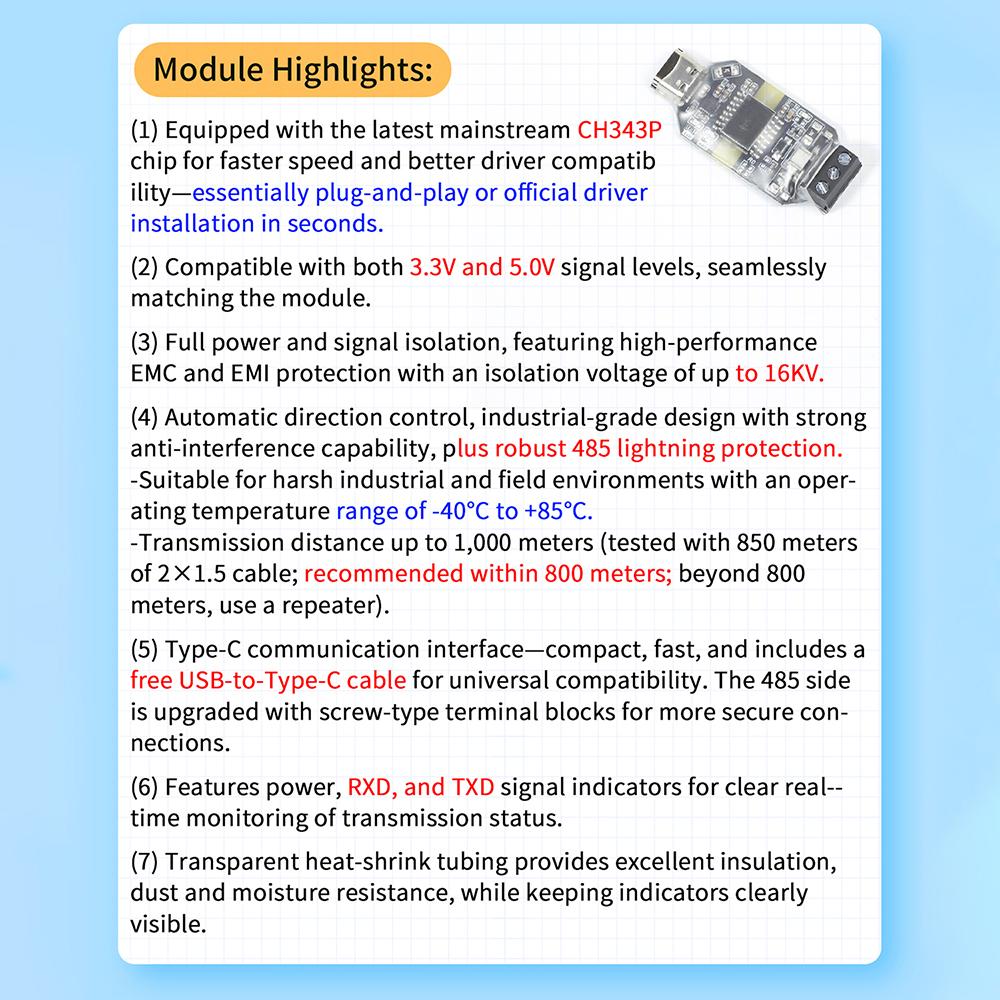

Features
1. Utilizes the latest mainstream CH343P chip for faster speeds and better driver compatibility
2. Compatible with both 3.3V and 5.0V signals
3. Power and signal isolation with up to 16KV isolation voltage
4. Automatic flow control, industrial-grade design with strong anti-interference capability
5. Type-C communication interface: compact size, high speed, compatible with most devices
6. Power indicator and RXD/TXD signal indicators provide clear transmission status visibility
7. Transparent heat-shrink tubing ensures excellent insulation, dust/moisture protection, and clear indicator visibility
Product Description
This product utilizes the latest mainstream CH343P chip with a maximum data rate of 6Mbps, offering superior driver compatibility. It requires minimal or no drivers, with official drivers installing instantly. Paired with a high-end isolated RS485 chip, it achieves power and signal isolation between TTL and RS485, delivering strong anti-interference capability. The device employs automatic flow control technology, automatically switching transmission and reception directions for simple operation. Baud rate: 10~256000bps
Important Notes
This transparent transmission module enables bidirectional conversion between USB-to-TTL signals and RS485 signals. However, it is crucial to understand that RS485 operates as half-duplex communication. This communication mode allows two-way data exchange but cannot transmit simultaneously in both directions; data flow must alternate sequentially. In other words, each end of the communication channel can function as either a transmitter or a receiver, but only one direction of data transmission is possible at any given moment.
Package include
Transparent Module*1
Data Cable*1
label:yes
