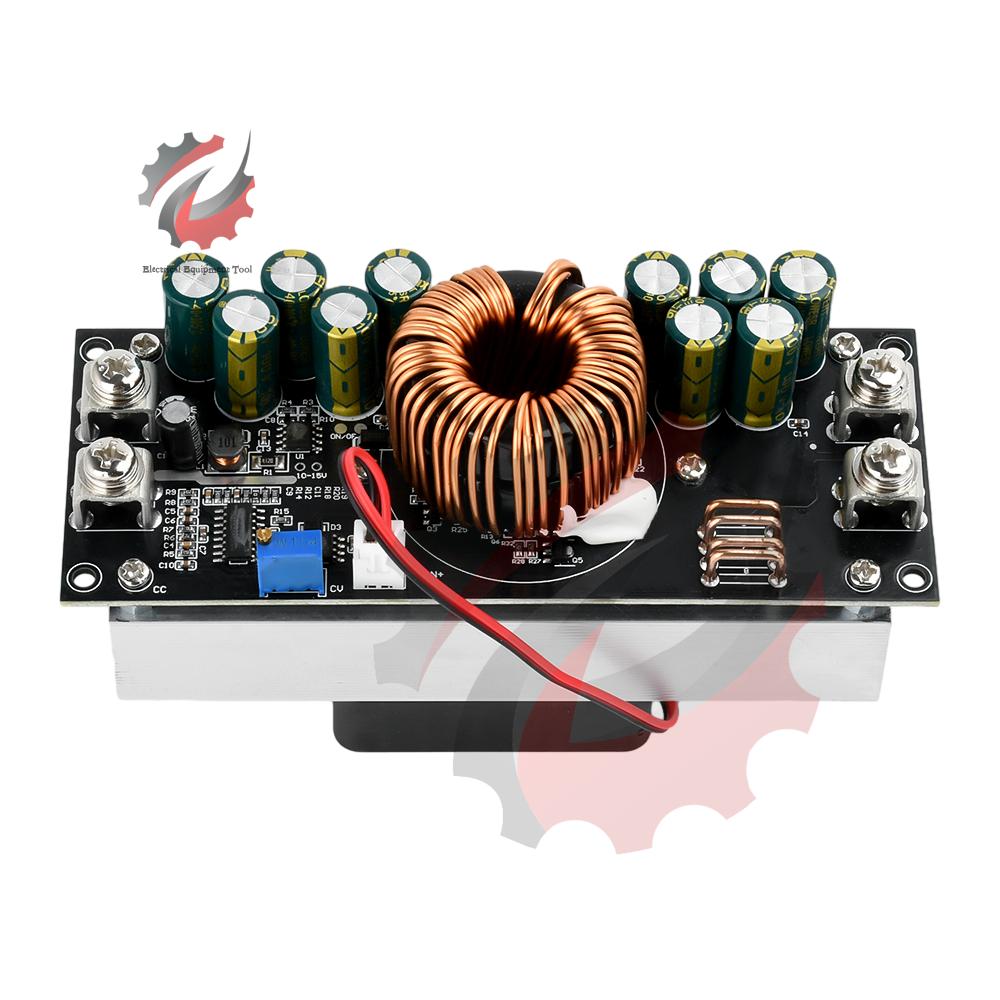

High Power 1500W Adjustable Step-Down Power Supply Module DC15V-90V to DC2.5V-72V 50A Constant Voltage Power Supply Board

Semi-finishedproduct : No Data Record : No High-concerned chemical : none Electronic : No Material : Plastic Size : Power Module Type : Power Module Model Number : Power Module DIY Supplies : Electrical Brand Name : Aideepen Origin : Mainland China Output Voltage : Power Module Style : Power Module Certification : NONE

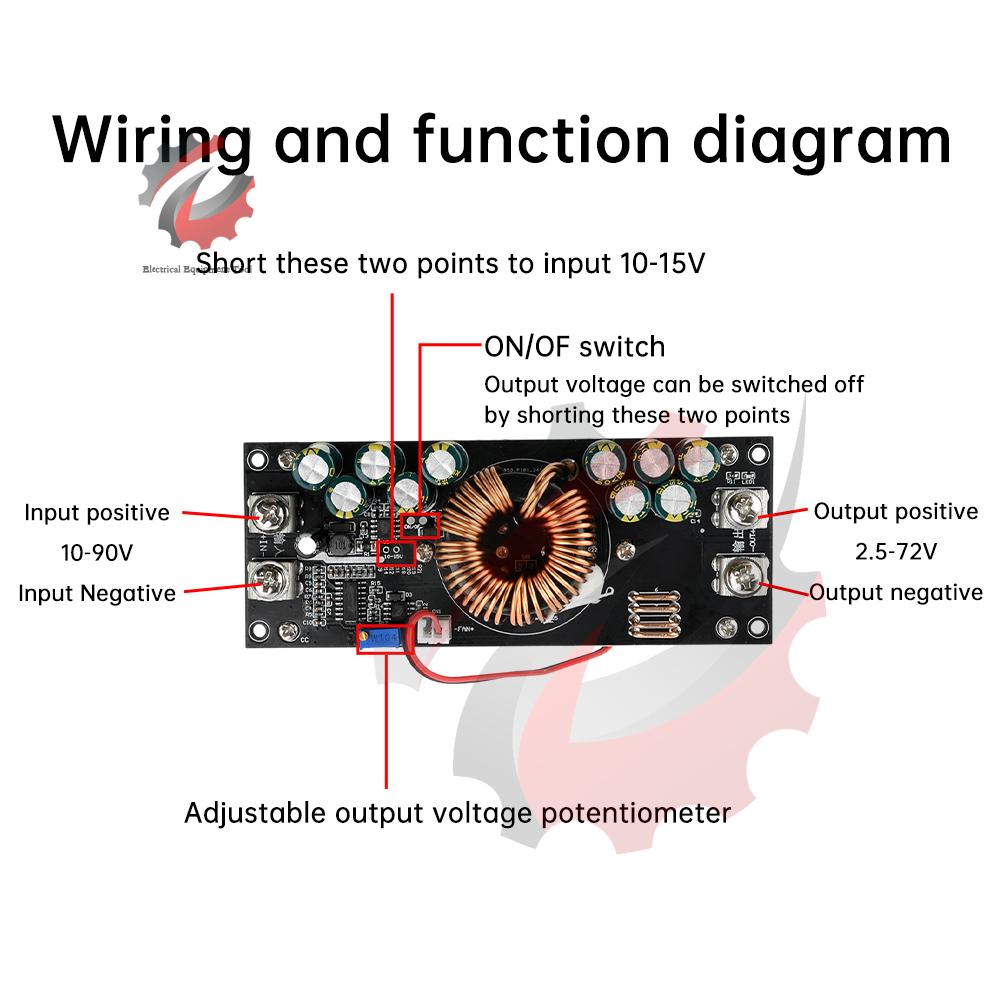

Features: 1. Input voltage 15V-90V, output voltage 2.5V-72V, adapt to a variety of power supply and equipment needs 2. Maximum support for 1500W power output, suitable for high power equipment, to ensure stable power supply 3. Wide range of applications, ideal for electronic enthusiasts and professional engineers 4. Adjustable output voltage, flexible to meet the needs of different application scenarios, enhance the convenience of use 5. High-efficiency step-down conversion, reduce energy loss, improve system efficiency, reduce heating Parameter: Module nature: non-isolated buck module (BUCK) Input voltage: DC15-90V (can also input 10-15V, must be shorted “12-15V” shorted only input 10-15V, if the input 15V or more will cause damage to the module, shorted “10-15V” ON / OF failure) Output voltage: DC15-90V (can also input 10-15V, must be shorted “12-15V” shorted only input 10-15V, if the input 15V or more will cause damage to the module, shorted “10-15V” ON / OF failure) (OF failure) Output voltage: 2.5-72V (must meet the buck conditions, IN input multiplied by 0.8 equals to the maximum output voltage) Output minimum voltage: 2.5V Output maximum voltage: 72V (when input 90V) input voltage * 0.8 equals output voltage Maximum output power: 1500W (working environment must be well ventilated) Continuous operation rated power: 1200W (ventilated environment) Continuous rated current: 45A Maximum output current: 50A Heat dissipation mode: air-cooled heat dissipation Input anti-reverse connection: No (strictly prohibit input reversal) Input under-voltage protection: No Input over-voltage protection: No (prohibit over-voltage) Output ON/OF switch interface: Yes (user wiring) Operating temperature: -10+65°C Operating frequency: 80KHz Conversion efficiency: up to 97% (efficiency and input and output voltage, current, differential pressure related) Short-circuit protection: No (can limit current to 50A) Heat dissipation: air-cooled cooling (temperature-controlled fan, open around 45 ℃) Output anti-reflux: No (output connected to inductive loads, such as connected to the motor must add anti-reflux diode) Package include: 1500W step-down module * 1 label:yes
