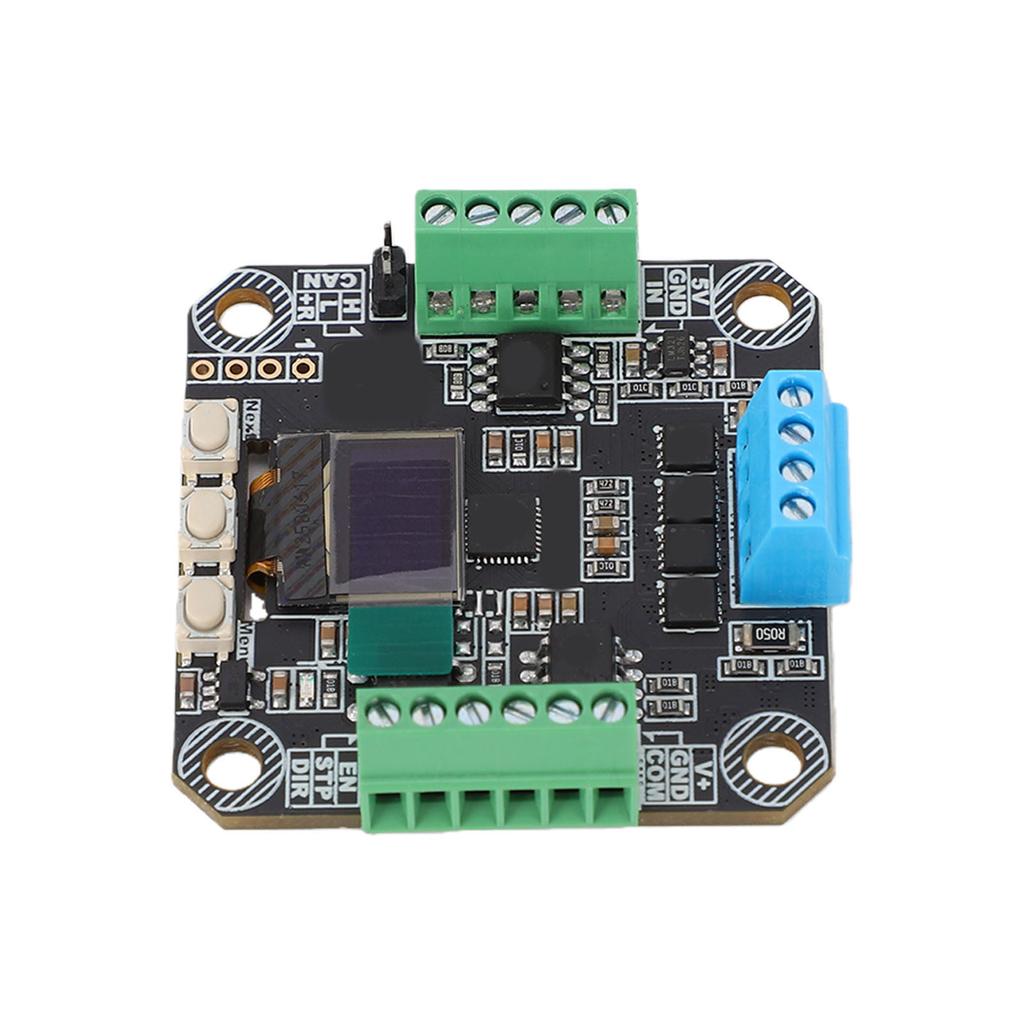

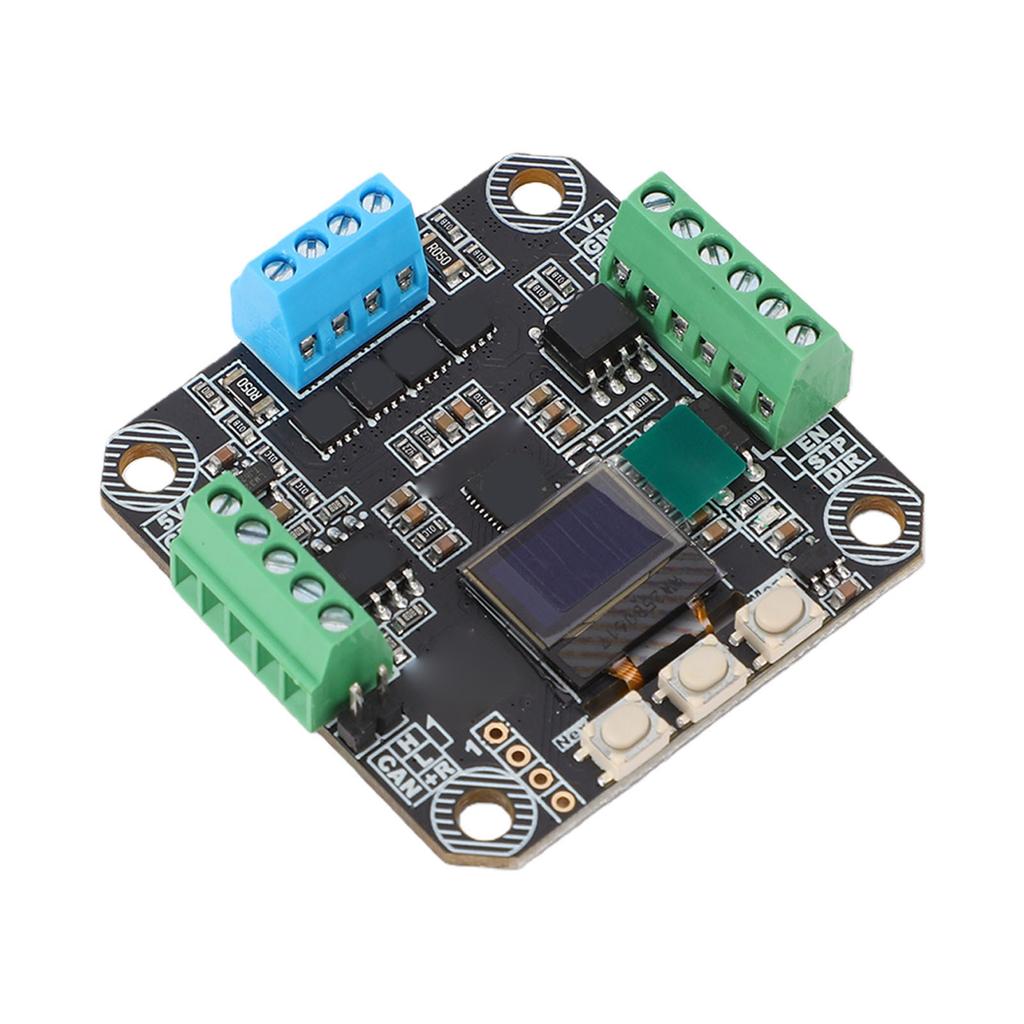

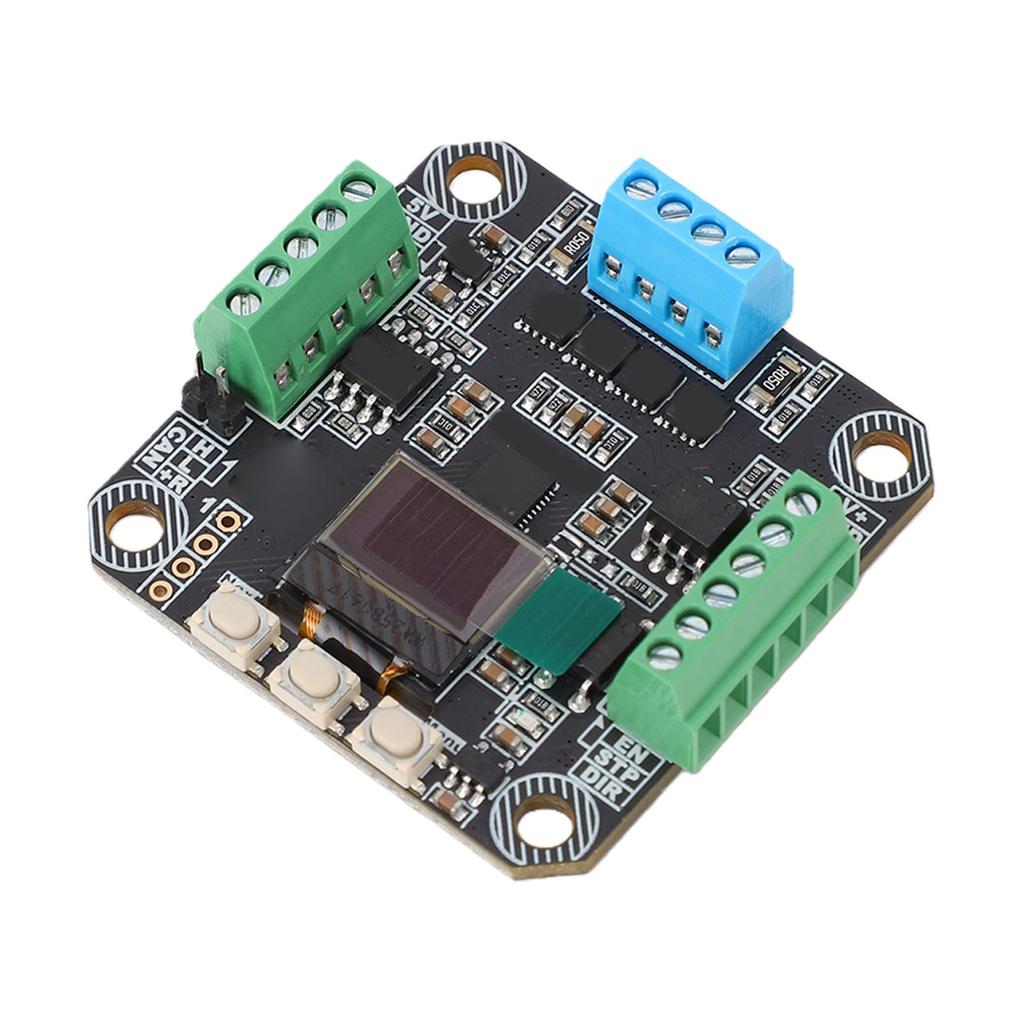

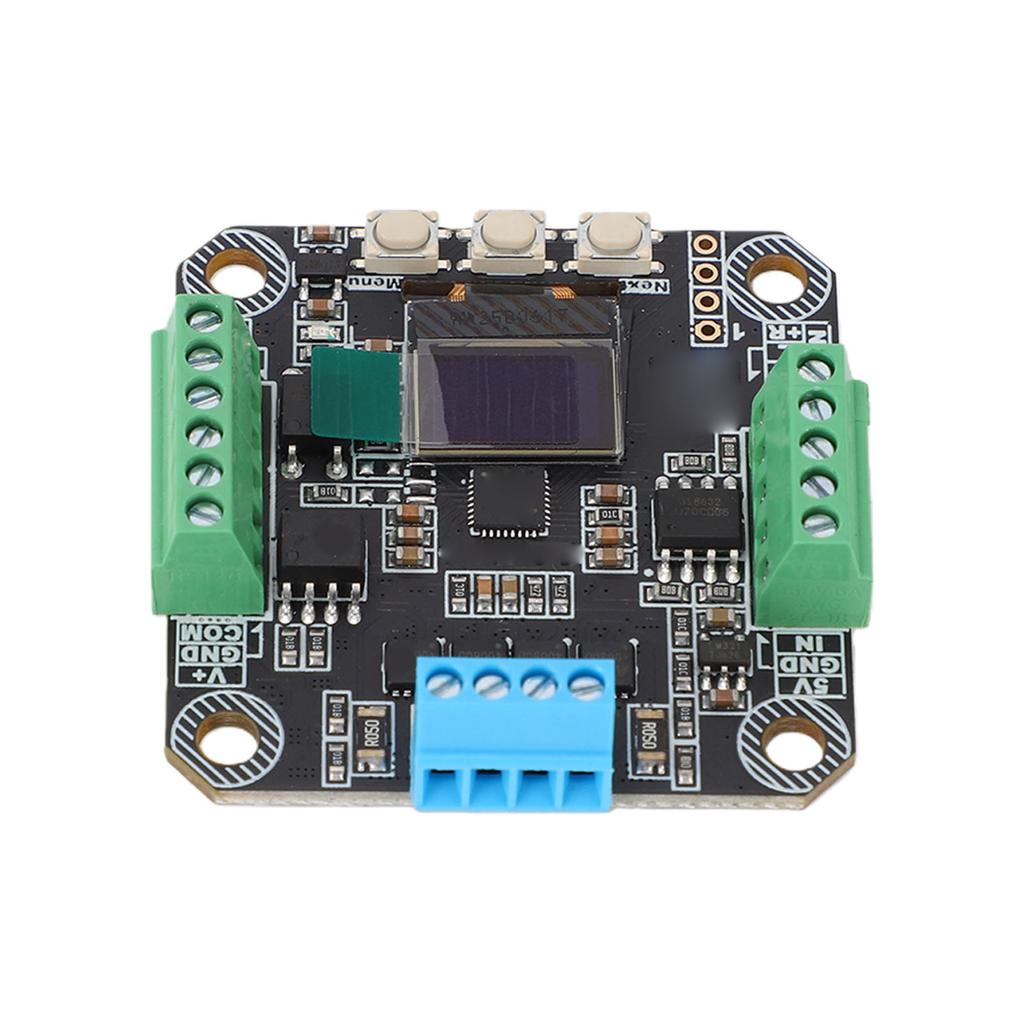

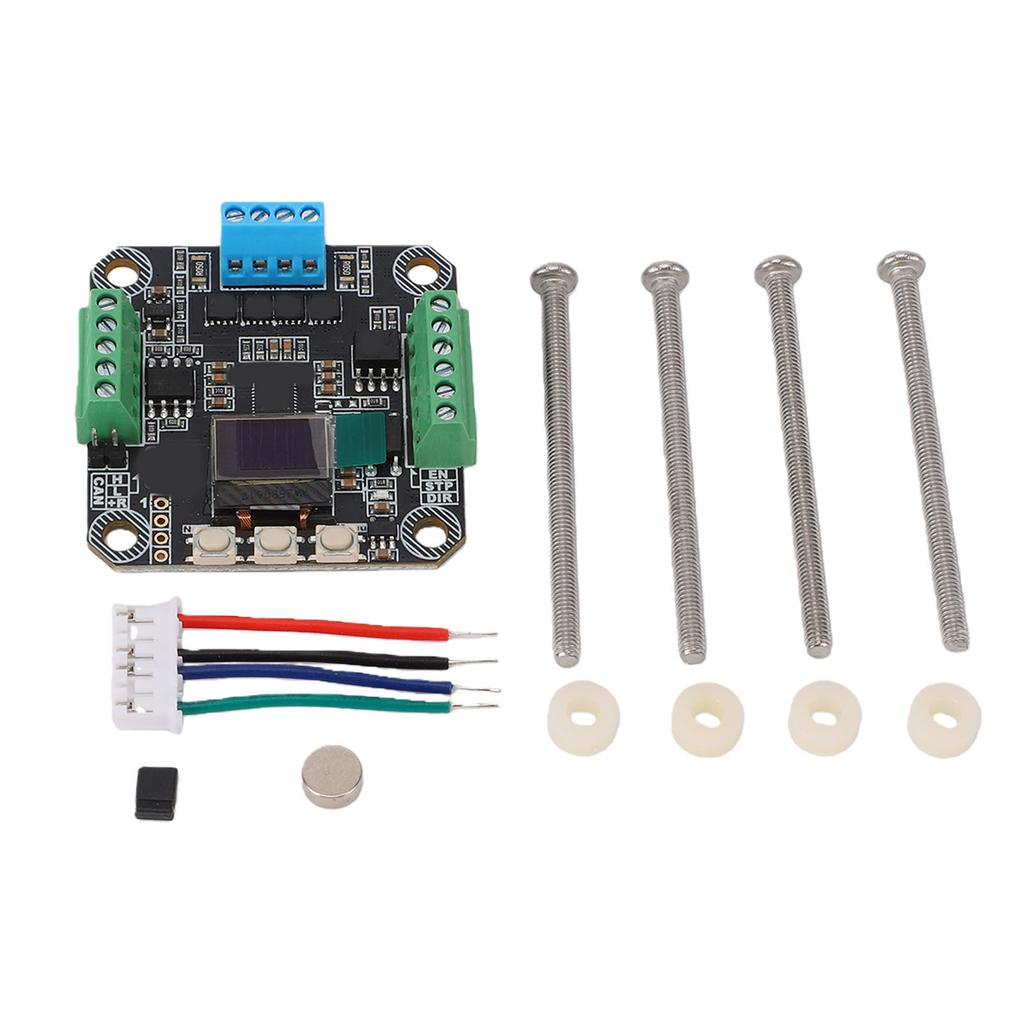

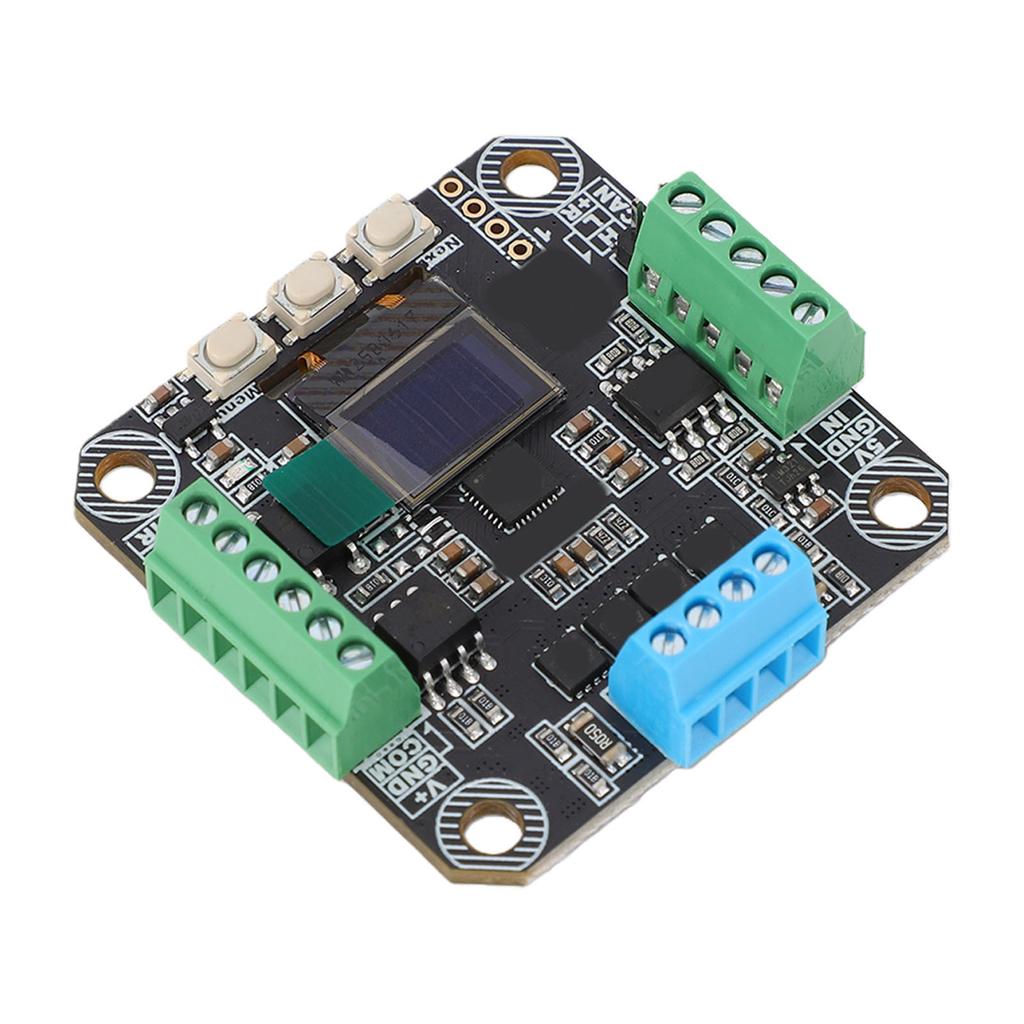

Stepper Motor Driver High Speed 42 Closed Loop Driver Control Board 256 Microsteps 6 Work Modes

Feature: 1. [Versatile Control Modes] The motor driver offers 6 operational modes including pulse interface (open loop, closed loop, FOC) and serial interface (open loop, closed loop, FOC), support for MODBUS RTU protocol support for 485 versions, ensuring flexible integration into diverse systems. 2. [Precision Motion Control] This stepper motor driver features advanced FOC with torque, speed, and position triple loop regulation, along with curved acceleration deceleration for ultra smooth motor starts and stops, enhancing operational accuracy. 3. [High Speed Performance] Engineered with 1 256 microstep interpolation and 160kHz pulse input, the driver achieves 3000+ RPM speeds while maintaining ultra low vibration and near silent operation, ideal for demanding applications. 4. [Robust Connectivity] The servo driver module support for 485 CAN interfaces supporting for 256 2048 slave addresses respectively, maximum working current: 3.0A, with group addressing capability and industrial grade MOSFETs (20A) for high current operation in networked environments. 5. [User Centric Design] With an onboard display, buttons for parameter adjustment, and features like encoder self calibration stall protection, this closed loop stepper module ensures effortless setup and stable performance under abrupt stops. Specification: Item Type: Stepper Motor DriverMaterial: PCB MCU: N32L403 (Cortex M4) MOSFET: AP4008QD (20A) Magnetic Encoder: MT6816 (14 bit) Operating Current: 0 3000mA Closed Loop Feedback Frequency: Torque loop 20KHz; Speed loop 20KHz; Position loop 20KHz Maximim Speed: 3000RPM+ Microstepping Support: 1 256 Microstepping Noise Vibration: Ultra quiet, Ultra low vibration Motor Temperature: FOC control mode, motor does not heat up Pulse Signal Input: Common anode input Pulse Signal Frequency: Up to 160KHz Interface Transceiver: TJA1051T Interface Rate: 125K 250K 500K Interface Address: 1 broadcast address, 2047 slave addresses. Package List: 1 x Stepper Motor Driver Module 4 x Screw 4 x Spacer 1 x Magnet 1 x Motor Cable 1 x Short Cap Note:
