Lift Button - White 1 x NO (XB2)
Reliable and extremely durable white control button, designed for professional workshop machines such as car lifts, tire changers, and wheel balancers. Components from the highly regarded XB2 series are characterized by the highest quality of workmanship, guaranteeing excellent resistance to difficult and demanding working conditions prevailing in an everyday workshop environment.
Detailed technical data and dimensions
The presented product was created with attention to precision, which is confirmed by compliance with the rigorous IEC60947-5-1 standard and the CE certificate. Below are its key technical parameters and exact dimensions that will facilitate a trouble-free fit of the element to your control panel:
• Model designation: ZB2-BE101
• Contact type: 1 x NO (Normally Open)
• Conventional thermal current (Ith): 10A
• Rated insulation voltage (Ui): 600V
• Rated impulse withstand voltage (Uimp): 6kV

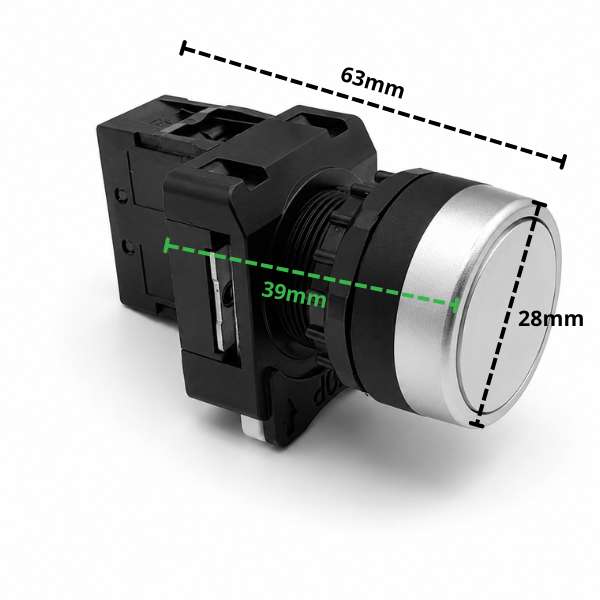

• Total length: 63 mm
• Mounting depth (from the flange to the inside): 39 mm
• Button front diameter: 28 mm
Original spare parts supplied by the azwarsztat.pl store guarantee the highest precision, safe operation, and extended life of your equipment. By choosing our proven electrical components, you ensure the trouble-free operation of your machines for many years!
Versatile and reliable: The button is equipped with a high-quality modular contact block 1 x NO (Normally Open). It is an ideal, fully compatible spare part for control systems in most professional workshop equipment available on the market, guaranteeing their smooth and safe operation.
