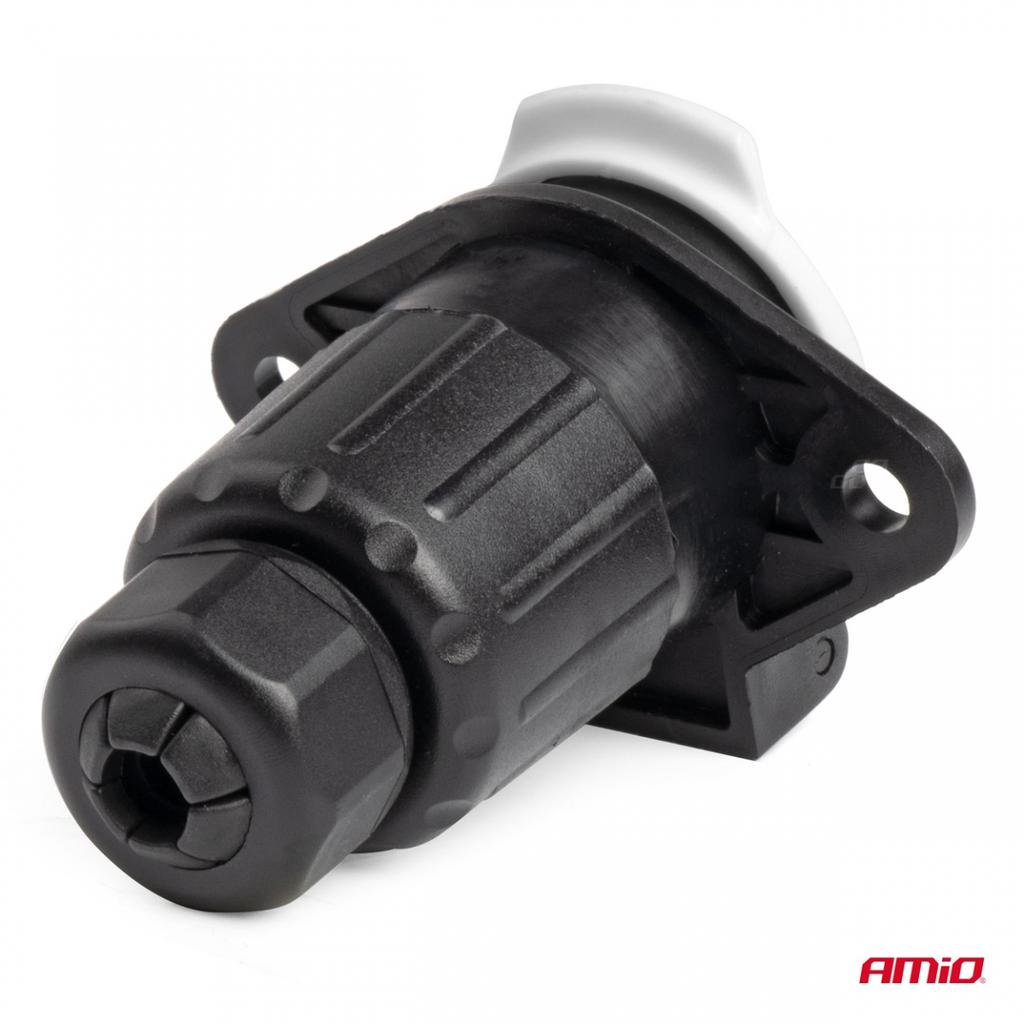

Trailer Socket 7 Pin Type 24V Tir Amio-03223

Plastic trailer socket 7-pin type S 24V

Universal 7-pin type S socket designed for connecting and powering 24V electrical installations in semi-trailers, heavy-duty trailers and other heavy vehicles.

Ensures a permanent connection between the trailer's electrical installation and the towing vehicle, guaranteeing uninterrupted operation of available functions (e.g. lighting).

The 7-pin 24V connector is Currently the most common system for making electrical connections between trailers and tractors in standard applications.

• Universal, fits any type of semi-trailer / trailer

• The design allows for easy assembly and disassembly

• Closed with a flap protecting against accidental opening and flooding when the cable is not connected

• Durable, damage-resistant and weather-resistant metal housing

• Metal contacts guarantee correct electrical connection in all conditions

• Rubber cover protects the interior against dirt (applied to the back of the housing)

• Cable entry from the back of the socket through the hole in the cover

• It has two mounting holes

• Type: 7-pin trailer socket type S

• Voltage: 24V

• Connector: 7-pin socket type S, male connector without pin (white)

• Housing: plastic

• Connection: screwed

• Mounting holes: 2

• Max cable diameter (rubber cover): 10.3 mm

• Color: black

• Total length: 85 mm

• Connector diameter: 45 mm

• Mounting hole spacing: 75 mm

• Weight: 180 g

Size: S
