Feature:
1. [NON CONTACT] The detector supports smart induction electric field, safe and fast, does not need to worry about the detection of indoor wiring cables.

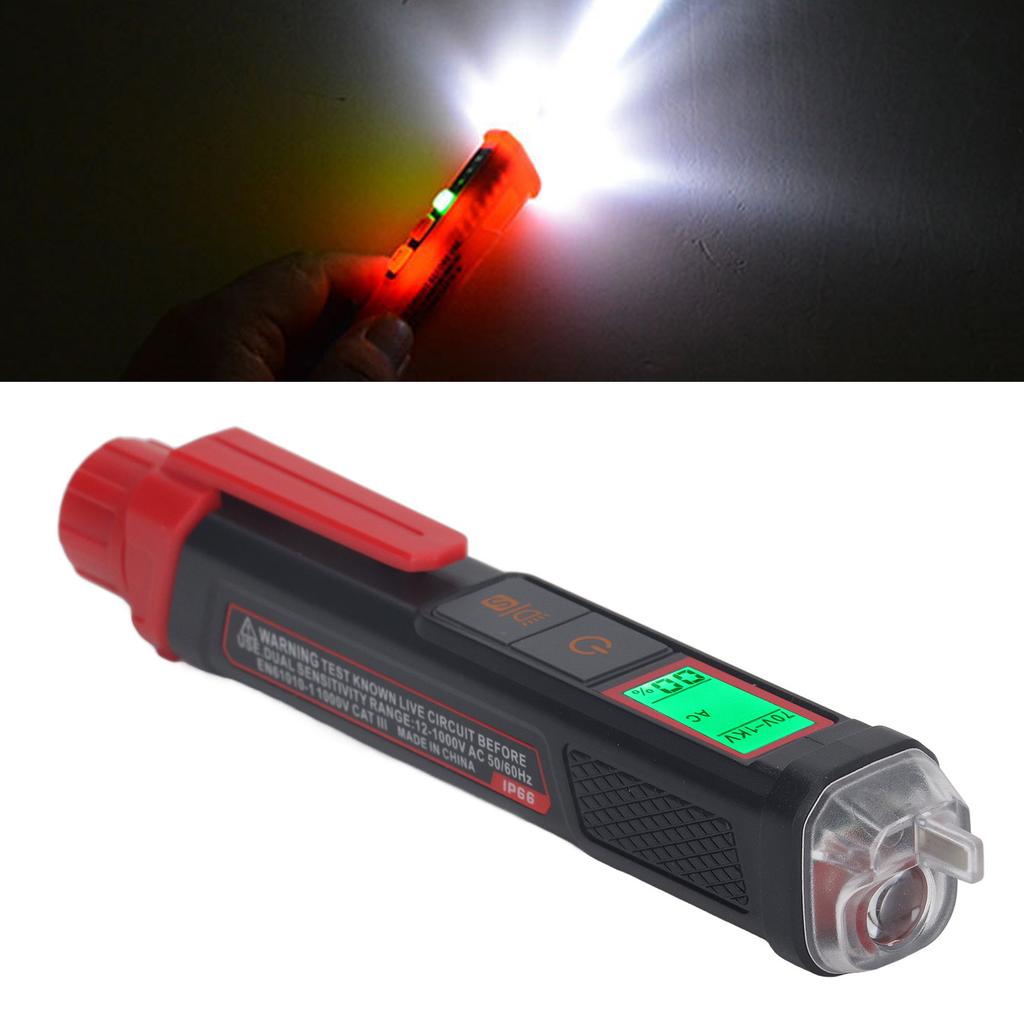

2. [WITH LED LIGHT] The electric detector is equipped with LED for lighting, and can be used at night or other dark environments for measurement.
3. [MAIN PURPOSES] The test pen can be used to detect AC voltage, neutral and live line judgment, breakpoint induction test, convenient and practical.
4. [MULTIPLE FUNCTION] The electric test pen has the functions of adjustable sensitivity, LED light, audible and visual alarm, automatic shutdown.
5. [PORTABLE DESIGN] The non contact detector has a pen holder design, compact in size, can be put in a bag or clip in a pocket to prevent loss.
Specification:

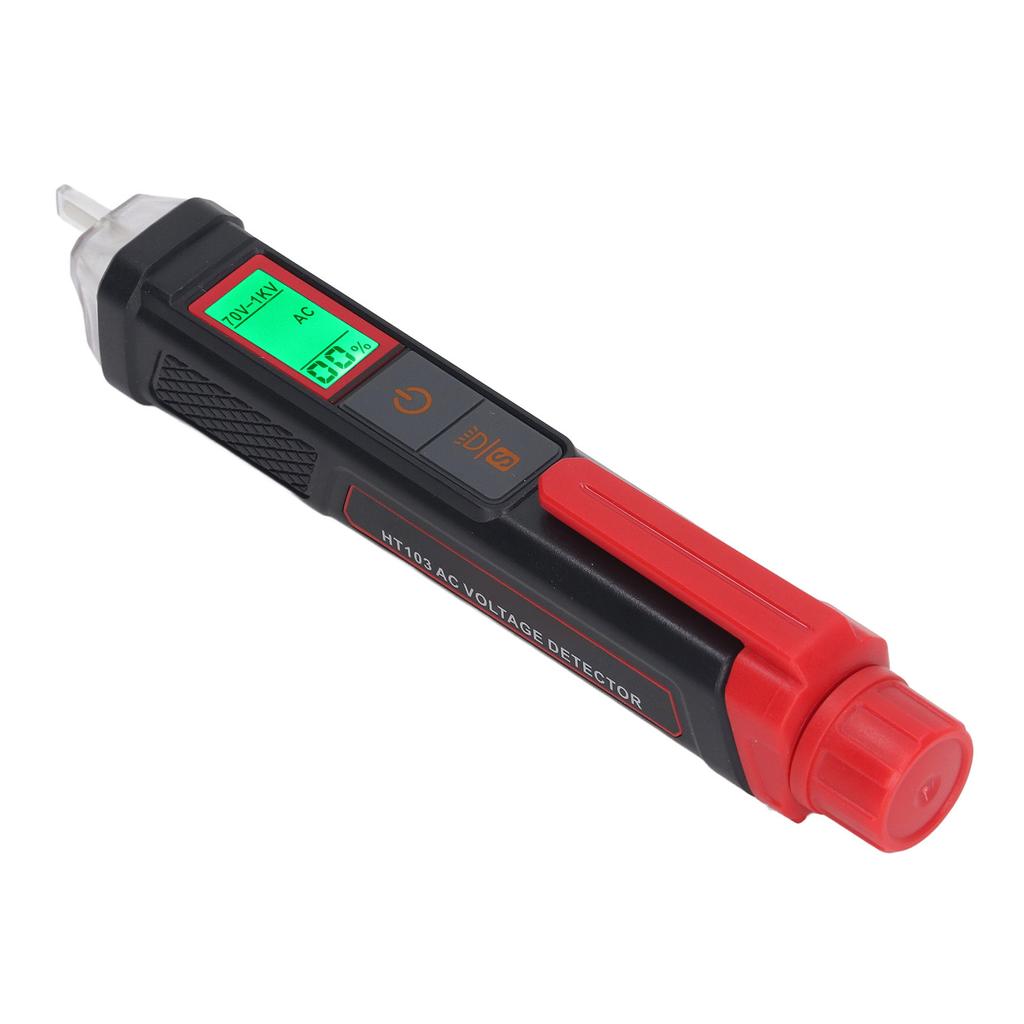

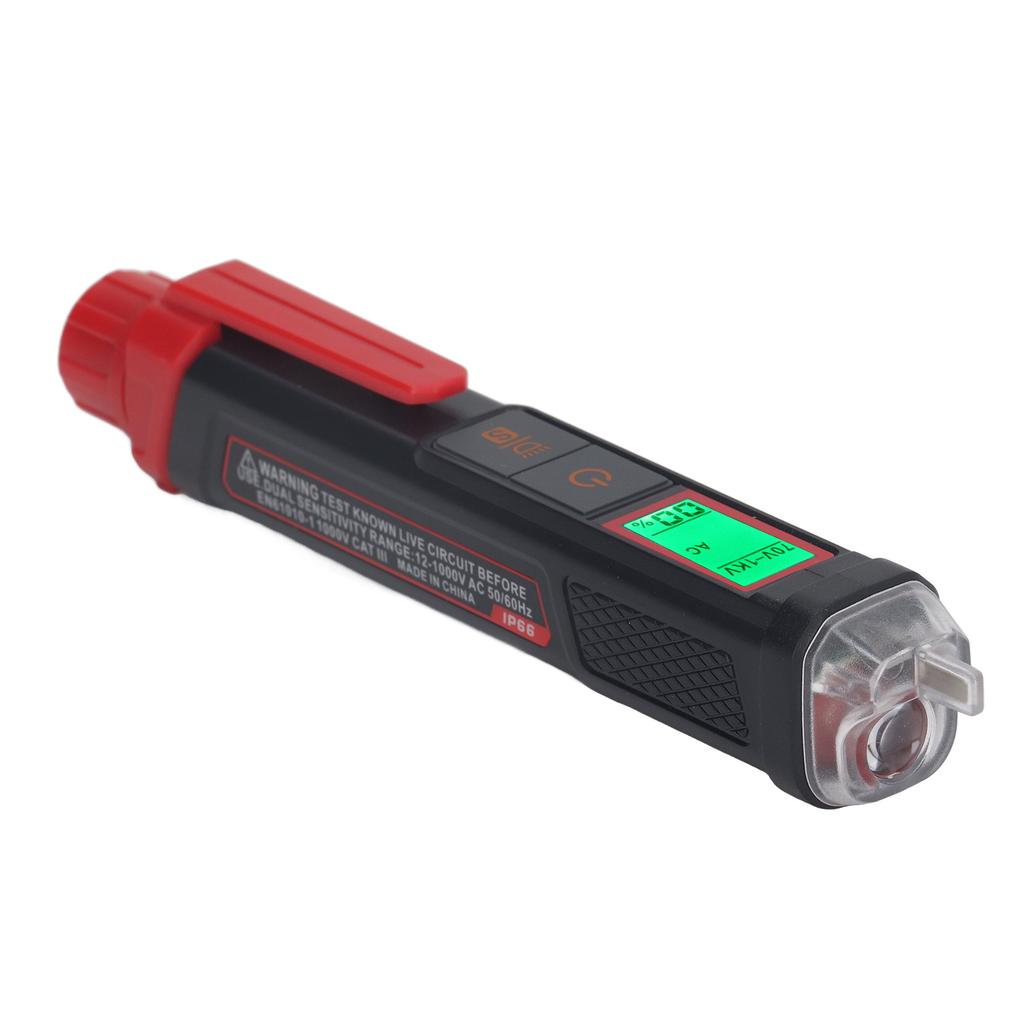

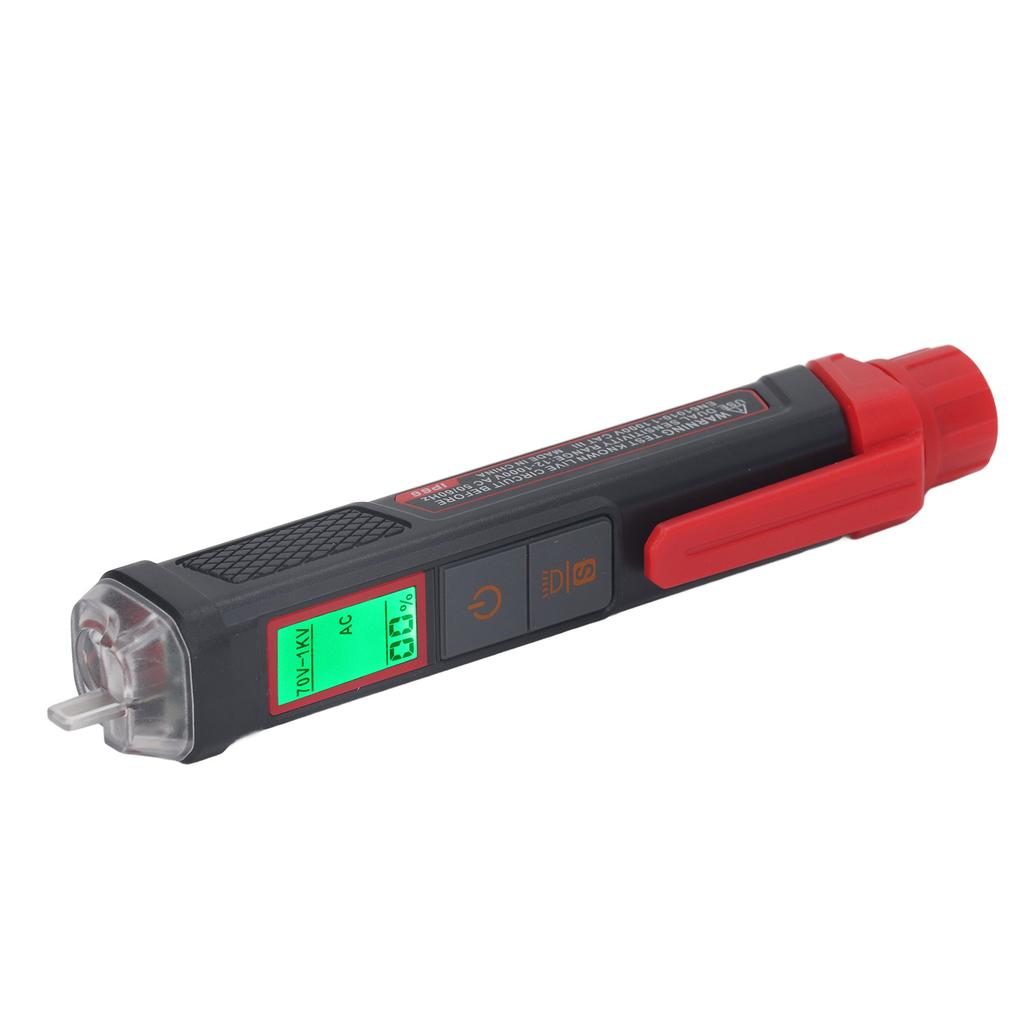

Item Type: Electricity Detector
Model: HT103
Material: ABS
Battery: 2 x 1.5V AAA Battery (not included)
Use: Applicable to detect AC voltage, neutral and live line judgment, and on off point test
Working AC Voltage: 12-1000V, 50/60Hz
Working Temperature: 0-40℃
Storage Temperature: -10-50℃
Humidity: ≤95%
Altitude: ≤2000 Meter
How to Use:
Neutral Line Identification: Place the test pencil at the end of the sensor near the object to be tested. If the simulated grid is lit in green and the buzzer beeps slowly, it is the neutral line.Live Line Identification: Move the end of the test pen sensor close to the object to be tested. If the end of the mesh light up in red and the buzzer rings quickly, it is a live wire.
Package List:
1 x Electricity Detector
1 x User Manual
