Label:Yes
1. IP68 Water & Dust Protection:Rated IP68 for reliable waterproof, dust proof and shockproof effects performance, suitable for use in various environments, ensuring durability and reliability
4. Wide Range of Applications:Commonly used in automotive audio, surveillance systems, railway signaling, medical equipment, instrumentation, LED lighting/strips, and other low-power electronic systems.
5. Durable & Efficient Housing:The plastic housing is designed for everyday use, offering efficient heat dissipation and a practical, durable construction.
3. Comprehensive Safety Protections:Features built-in over-voltage, over-current, over-temperature, and short-circuit protection with auto-recovery after fault conditions are cleared.
2. Stable DC-DC Conversion:Converts an unstable 12V/24V DC input into a stable 5V, 10A DC output for compatible low-voltage devices.
Specifications:

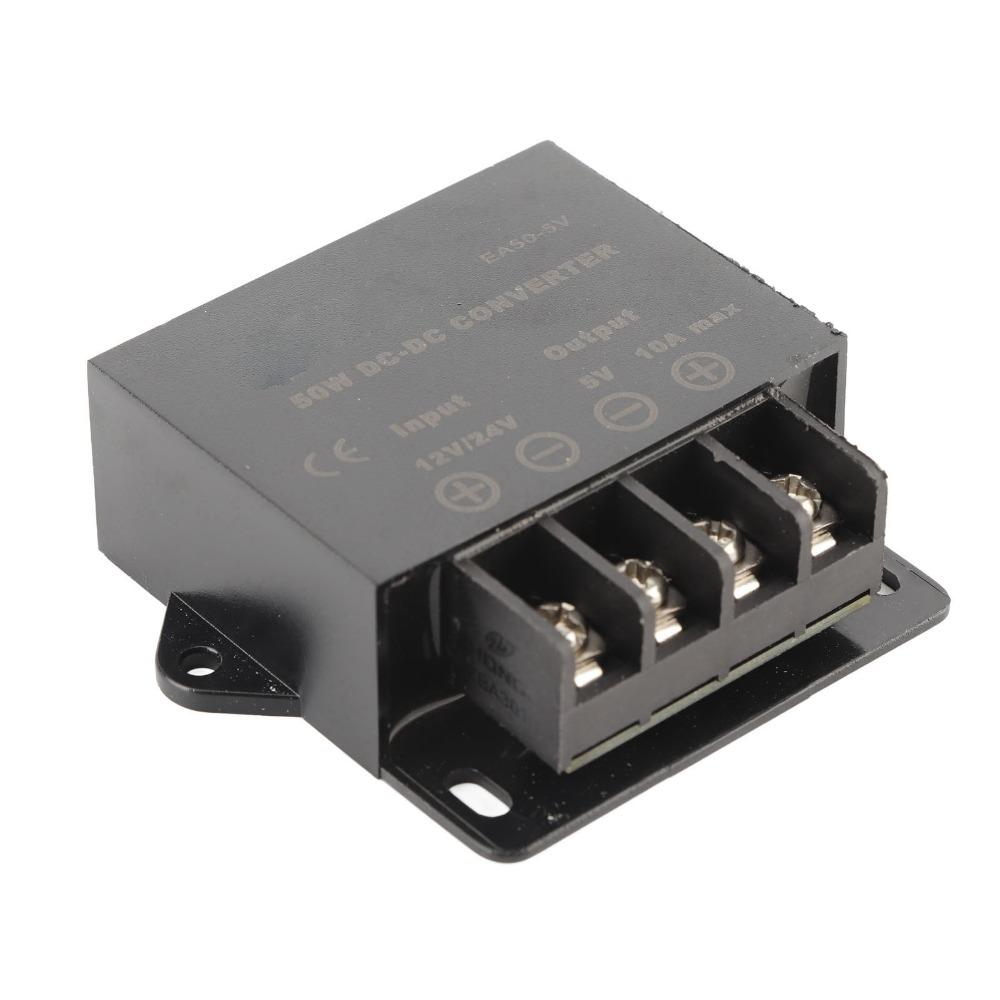

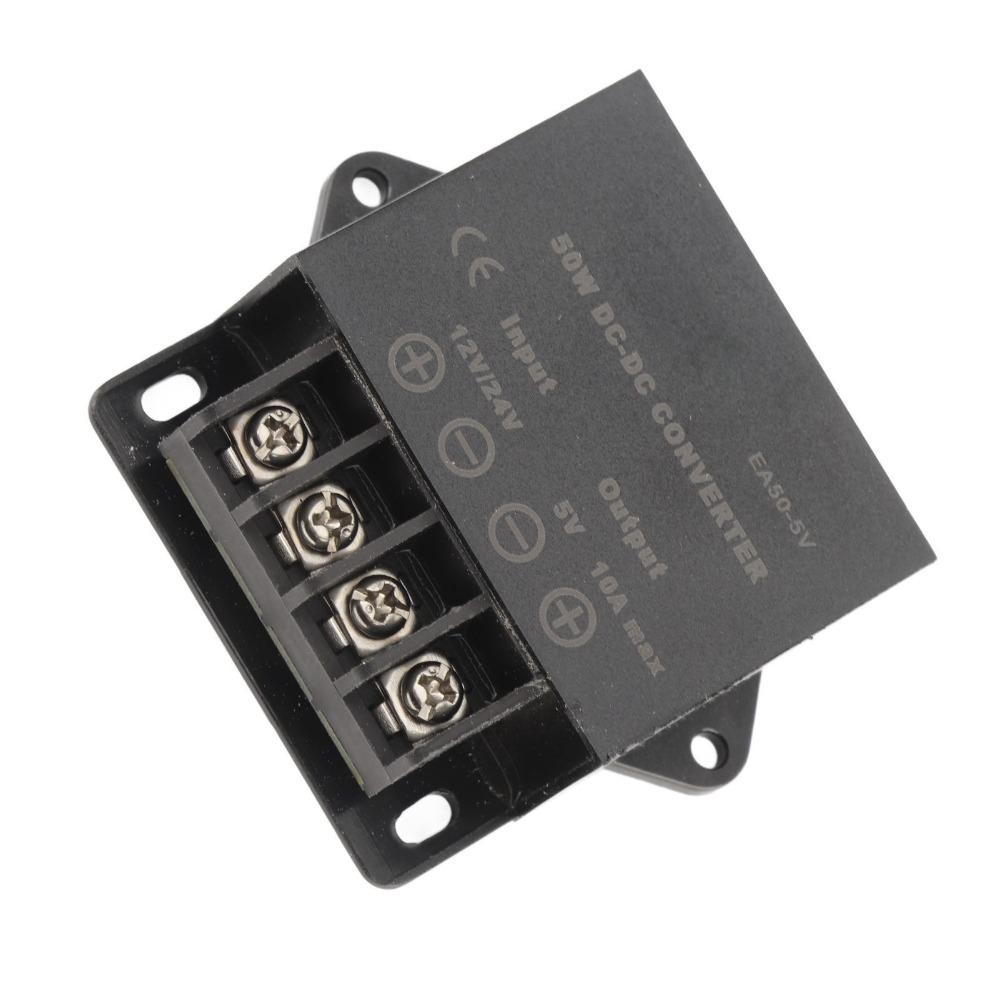

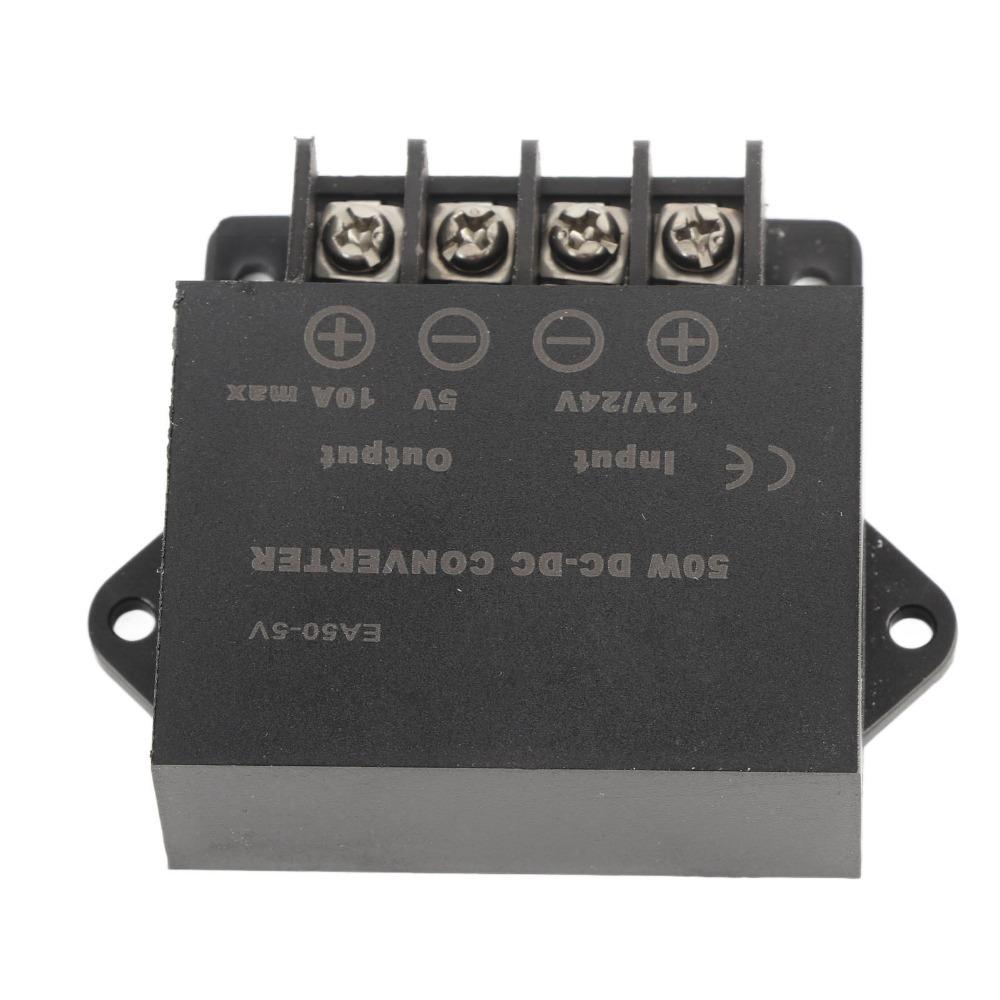

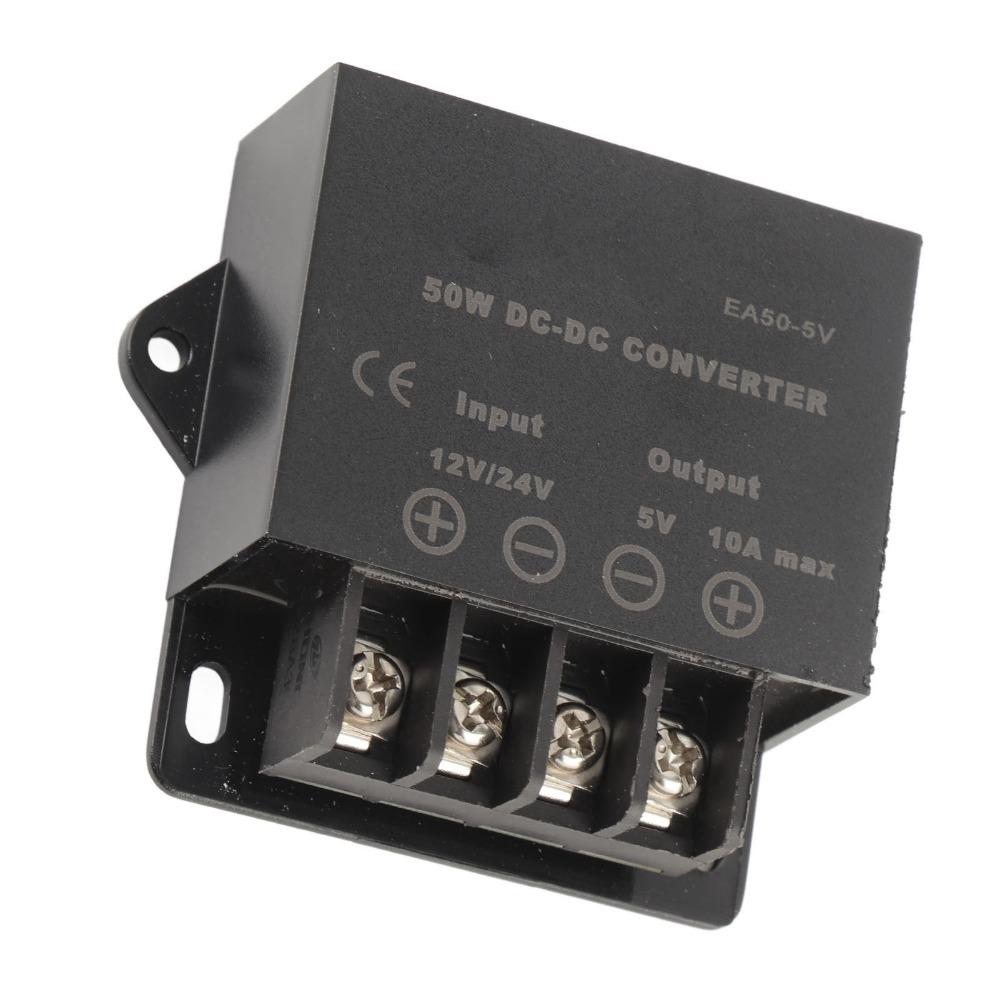

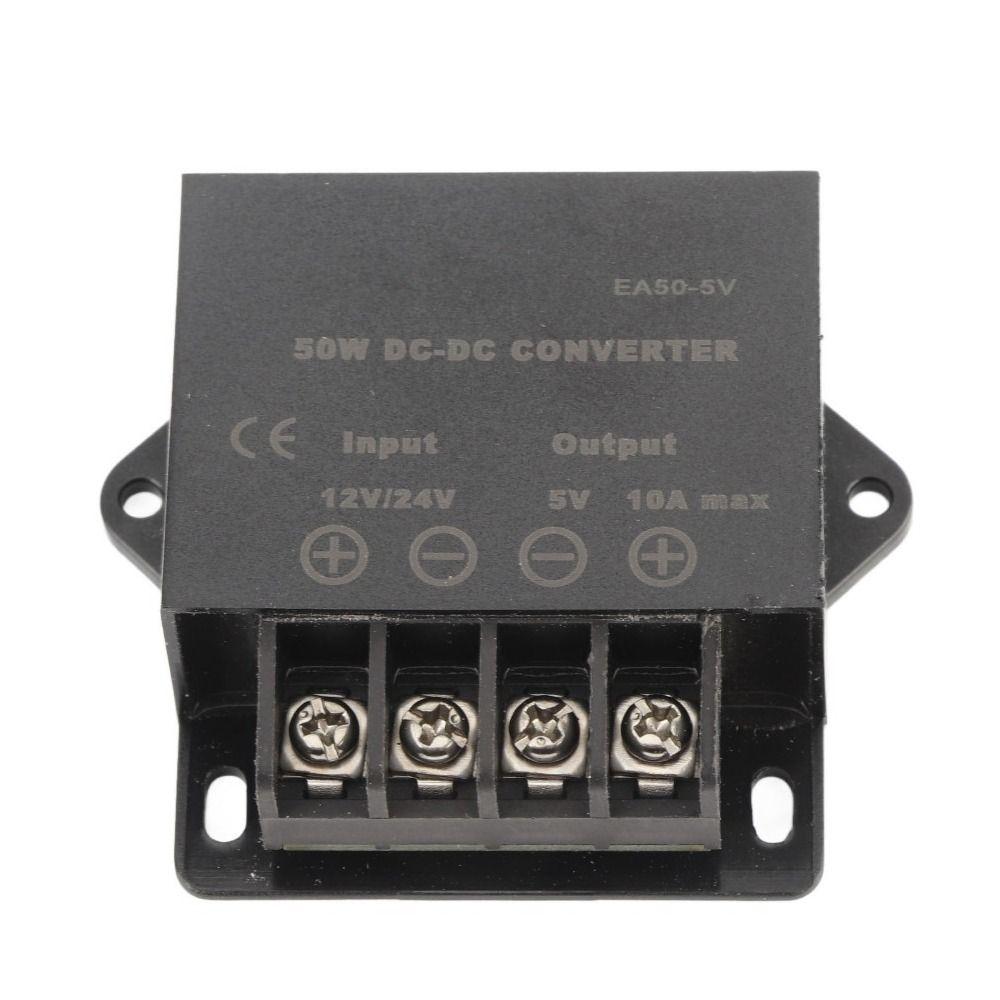

Item Type: Power Converter
Product Model: EA50-5V
Product Material: ABS
Input voltage: 12/24V
Input Voltage Range: 10-35V
Output Voltage: 5V
Output Current: 10A
Output Power: 50W

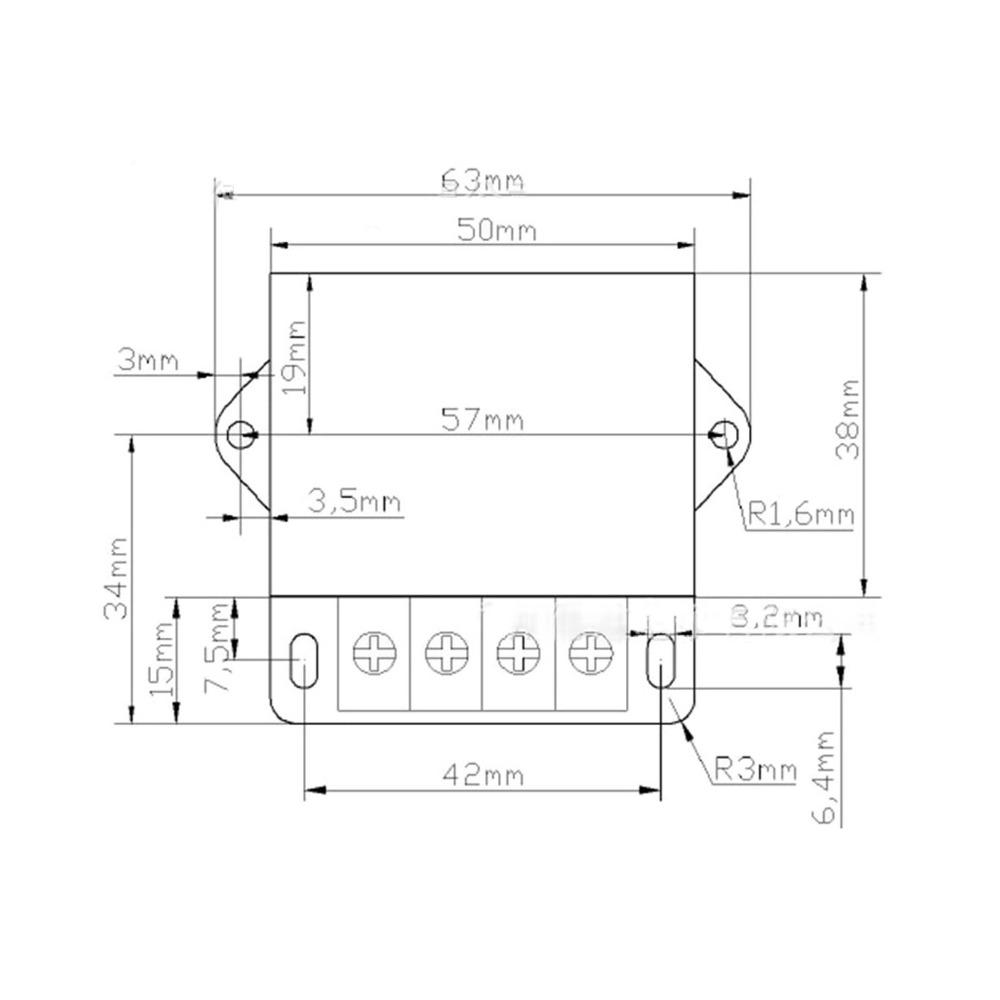

Shell Size: Approx. 64 x 53 x 20mm / 2.5 x 2.1 x 0.8in
Color: Black
Working Temperature: -40℃ - +80℃
Waterproof Grade: IP68
Short-circuit protection:Under normal operations, if the converter output is short-circuited to ground instantaneously, the power converter will not be damaged.
Overcurrent protection:If the output load current is too large, the power module will not be damaged, reducing the power supply failure rate.
Overvoltage protection:If the power supply's abnormal output voltage exceeds the set value, the protection function will activate to avoid damage to the load equipment.
Overtemperature protection:The converter can operate in an ambient temperature range of -40 °C to 85°C. When the shell temperature exceeds 85°C, the converter will activate automatic protection.

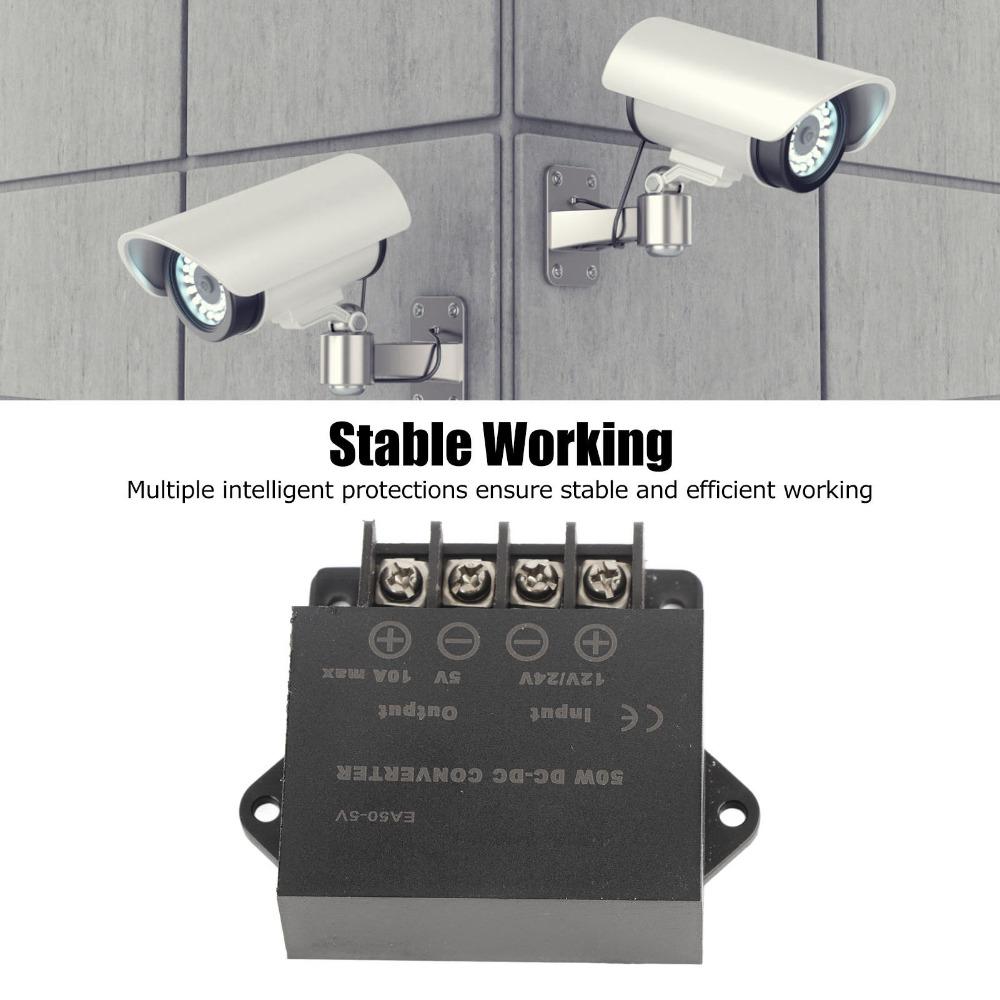

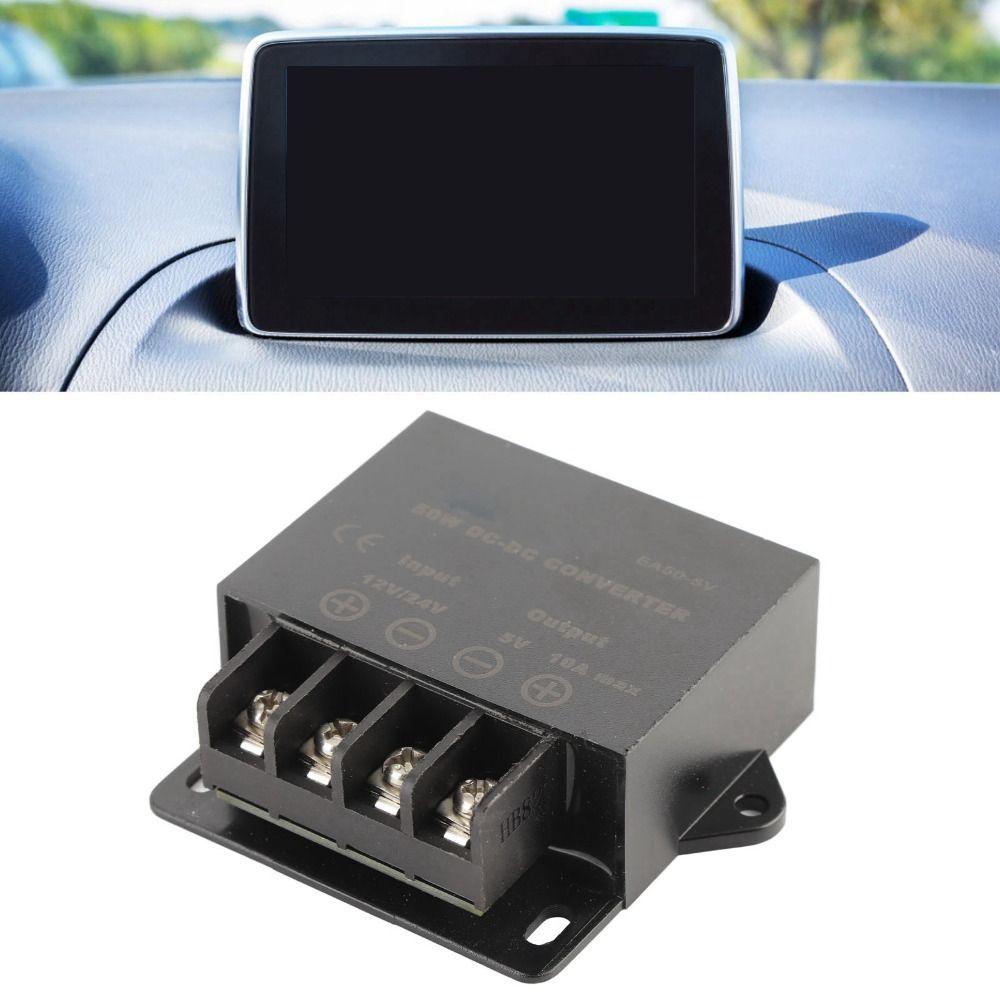

Application: Motor, car navigation system, recorder, photovoltaic panel, LED strip, bulb, fan, camera.
Package List:
1 x Power Converter
Notes:
1.Please wire and install correctly. Only power on the device after confirming that the positive and negative polarities of the input and output are correct.
2.To ensure the normal operations of the power converter, the battery power at the input terminal must be within the input voltage range and have sufficient power.
3.Install the device in a well-ventilated and heat-dissipating environment. Avoid heat accumulation, which may trigger the overtemperature protection of the power converter.
