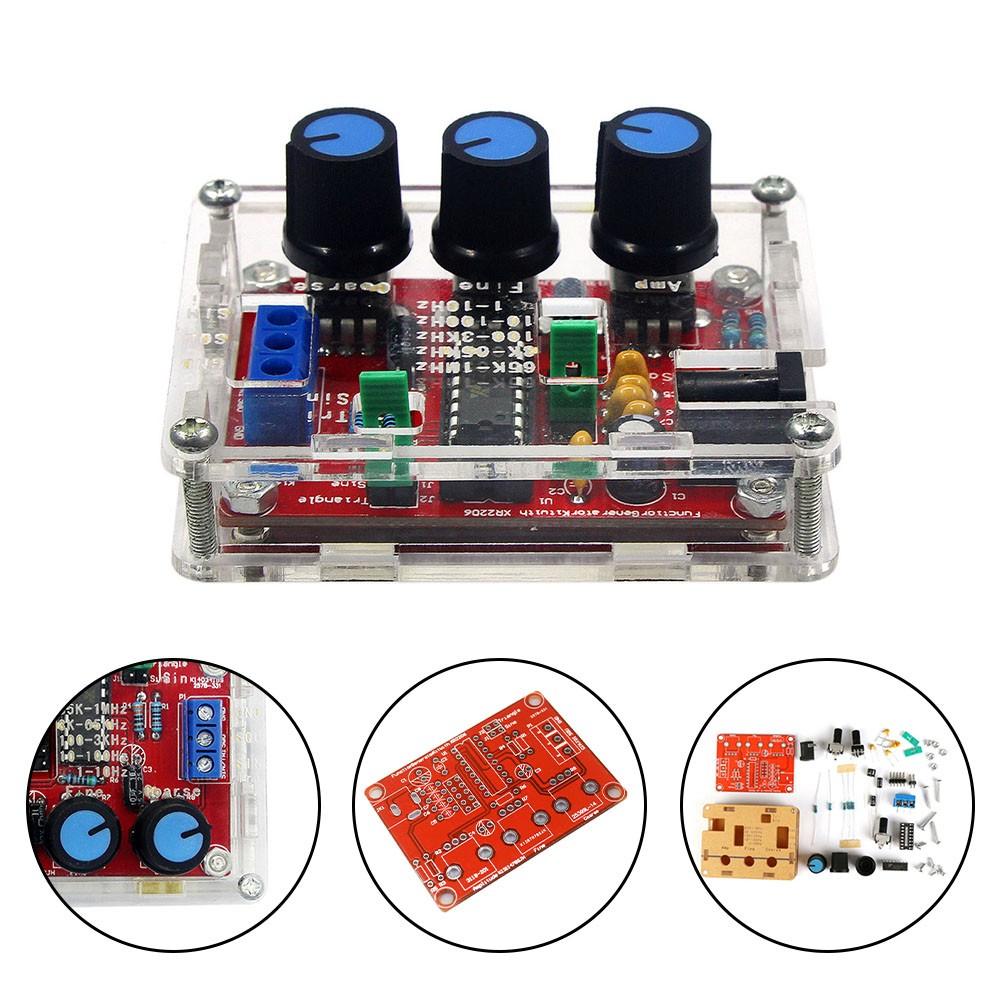

Sine and Triangle Wave Generation For XR2206 DIY Signal Generator Kit

Features: *Versatile Waveform Generation: The for XR2206 Signal Generator allows you to produce three different waveforms—Sine, Triangle, and Square—covering a for Frequency range from 1Hz to 1MHz, making it for various applications in electronics and audio testing. *Adjustable Output Amplitude: With the sine and triangle wave outputs adjustable between 0 to 3V at a 9V DC input, this kit gives you the flexibility to tailor the output to suit your specific project requirements, optimal performance. * for Waveform Characteristics: The signal generator boasts low distortion levels of less than 1% for sine waves at 1kHz, high fidelity in waveform reproduction, which is crucial for accurate signal processing and analysis. *Fast Switching Times: The square wave output features rise and fall times of less than 50ns and 30ns respectively, providing transitions that are essential for high-speed digital applications, enhancing the reliability of your signals. *Comprehensive DIY Kit: This product comes as a complete kit requiring assembly, allowing users to engage in hands-on learning and gain practical experience in electronics while constructing their own signal generator from scratch.

Voltage Supply:9-12VDC Input Waveforms: Square, Sine & Triangle Impedance: 600 Ohm + 10%

for Frequency: 1Hz - 1MHz SINE WAVE Amplitude: 0 - 3V at 9V DC input Distortion: Less than 1% (at 1kHz) Flatness: +0.05dB 1Hz - 100kHz SQUARE WAVE Amplitude: 8V (no load) at 9V DC input Rise Time: Less than 50ns (at 1kHz) Fall Time: Less than 30ns (at 1kHz) Symmetry: Less than 5% (at 1kHz) TRIANGLE WAVE Amplitude:0 - 3V at 9VDC input Linearity: Less than 1% (up to 100kHz) 10mA

*The welding installation considerations, follow these steps:

1. The components are welding the front board, from low to high principles, namely the first low welding components, such as, capacitor, resistor, diode, .

2.Welding for IC socket, terminal blocks, finally power socket, adjustable potentiometer.

3.The back with a diagonal cutting pliers to short the pins as far as possible

*Debugging steps:

1After completion of welding on for IC, for XR2206, pay attention to the direction of for IC, insert the might damage the chip!

2. check the for IC whether against, such as anti please timely correction.

3. Insert the power supply, power supply for 5.5 * 2.1 port, inside outside is negative polarity. For 9-12 v power supply voltage. The waveform may not be stable for more than 12 v

*Using the step

1. J1 cap in, SIN/TRI blue terminals output sine wave (note J1, J2 can only insert 1 of)

2. J2 cap in, SIN/TRI blue terminals output triangular wave (note J1, J2 can only insert 1 of)

3. SQU blue terminals output for pulse

4. AMP : Sine wave, triangle wave amplitude adjustment

5. FINE : for Frequency fine adjustment

6. Coarse : for Frequency of coarse adjustment

Specifications: Part Name:Signal Generator DIY Kit Material:ABS Size:12*8*2cm Color:Red

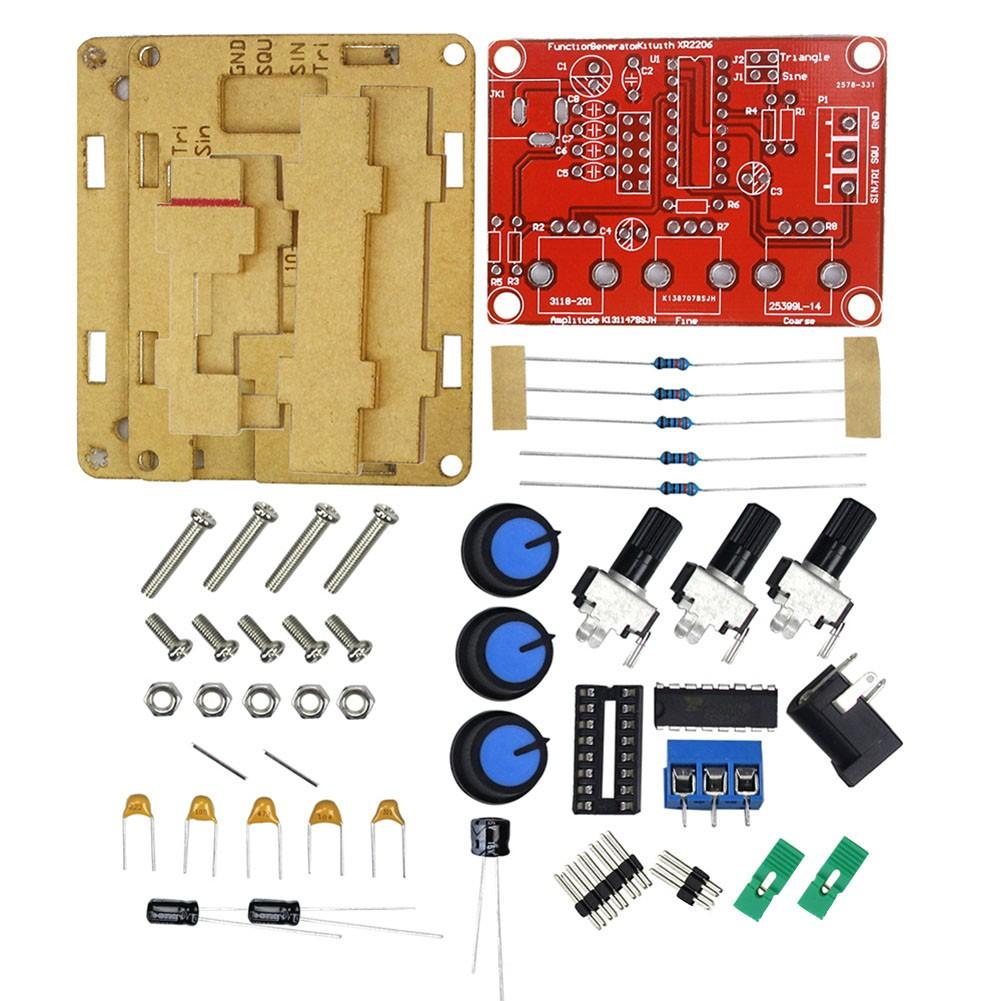

Package Content: 1*Signal Generator DIY Kit
