OTORAM compatible/replaceable Honda/Nissan/Mazda/Daihatsu/Suzuki/Clarion conversion harness for connecting back camera and

• ▶Product Description This product is an adapter for converting OTORAM compatible/replaceable Honda/Nissan/Mazda/Daihatsu/Suzuki/Clarion genuine rear camera coupler to other video output terminals. Ideal for those who are replacing a genuine Honda/Nissan/Mazda/Daihatsu/Suzuki/Clarion navigation system with an aftermarket/commercial navigation system!! Compatible if you are replacing your original navigation system with an aftermarket system that has an RCA video input terminal for your rear camera. When you only want to replace the navigation system. The back camera can be used as is.

• ▶Applicable car models & navigation part numbers: Please check the compatibility table for details. The rear camera used in the model listed in the product image is compatible. Note: Installation requires specialized knowledge. When installing, do not make incorrect connections to prevent damage or danger due to short circuits.

• ▶Easy connection: Stag terminals are shaped like screws and bolts for easy installation. It is easy to remove and can be reused. Good electrical conductivity, the ground stag terminal has a large metal contact surface, so it has good electrical conductivity. This ensures a stable ground connection.

• ▶Installation method: [Genuine rear camera] → [This product] → [Non-brand navigation]. Utilizing our unique know-how, we have created a dedicated rear camera input harness that allows you to connect a genuine Nissan rear (back) camera to a commercially available navigation system.

• ▶Note: This product is an adapter for converting the genuine back camera's dedicated coupler to other video output terminals. The product number varies depending on the car model (model/year/equipment) and the type of rear camera. Please be sure to check the latest compatibility table. Never connect an unsuitable rear camera as this may damage the connected equipment. Product specifications, appearance, and set contents are subject to change without notice due to improvements. Car navigation system, back camera, etc. are not included.

▶Product description

Note: Installation requires specialized knowledge. When installing, do not make incorrect connections to prevent damage or danger due to short circuits. Note: Installation requires specialized knowledge. When installing, do not make incorrect connections to prevent damage or danger due to short circuits.

This product is an adapter for converting OTORAM compatible/replaceable Honda/Nissan/Mazda/Daihatsu/Suzuki/Clarion genuine rear camera coupler to other video output terminals. Ideal for those who are replacing their genuine Honda/Nissan/Mazda/Daihatsu/Suzuki/Clarion navigation system with an aftermarket/commercial navigation system!! If you are replacing it with a third-party product that has an RCA video input terminal for the rear camera, it will be compatible. When you only want to replace the navigation system. The back camera can be used as is.

▶Installation method ① Connect this product to the existing back camera ②Connect the backlight power supply (+12V) to the red wire and the ground to the black wire (tighten together with the screw on the side of the navigation) ③ Connect the yellow RCA terminal to the back camera input terminal of the external navigation system. ④ If your car navigation system does not have a pack camera adapter (if necessary, you will need a back camera adapter (female RCA) in addition to this product)

Product specifications Red wiring: Connect to back lamp power supply (+12V) Black wire: Connect to ground RCA video output (male): Connect to back camera input terminal of car navigation system, etc. *Compatibility is limited to models with a rear camera input terminal. Coupler pin number: 5 pins

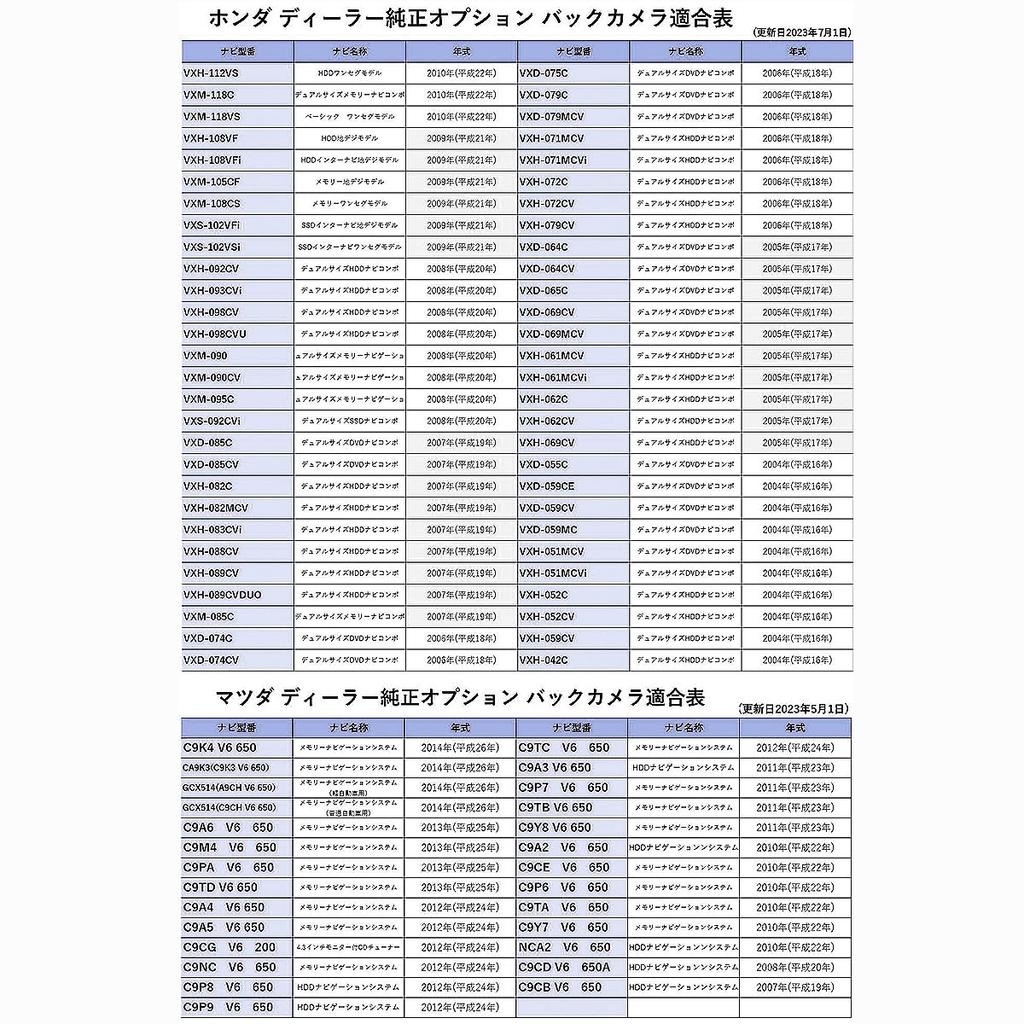

▶Compatible models The rear camera used in the model listed in the product image is compatible.

▶Notes

This product is an adapter for converting the genuine back camera's dedicated coupler to other video output terminals.

The product number varies depending on the car model (model/year/equipment) and the type of rear camera. Please be sure to check the latest compatibility table.

Never connect an unsuitable rear camera as this may damage the connected equipment.

Product specifications, appearance, and set contents are subject to change without notice due to improvements.

Car navigation system, back camera, etc. are not included.
