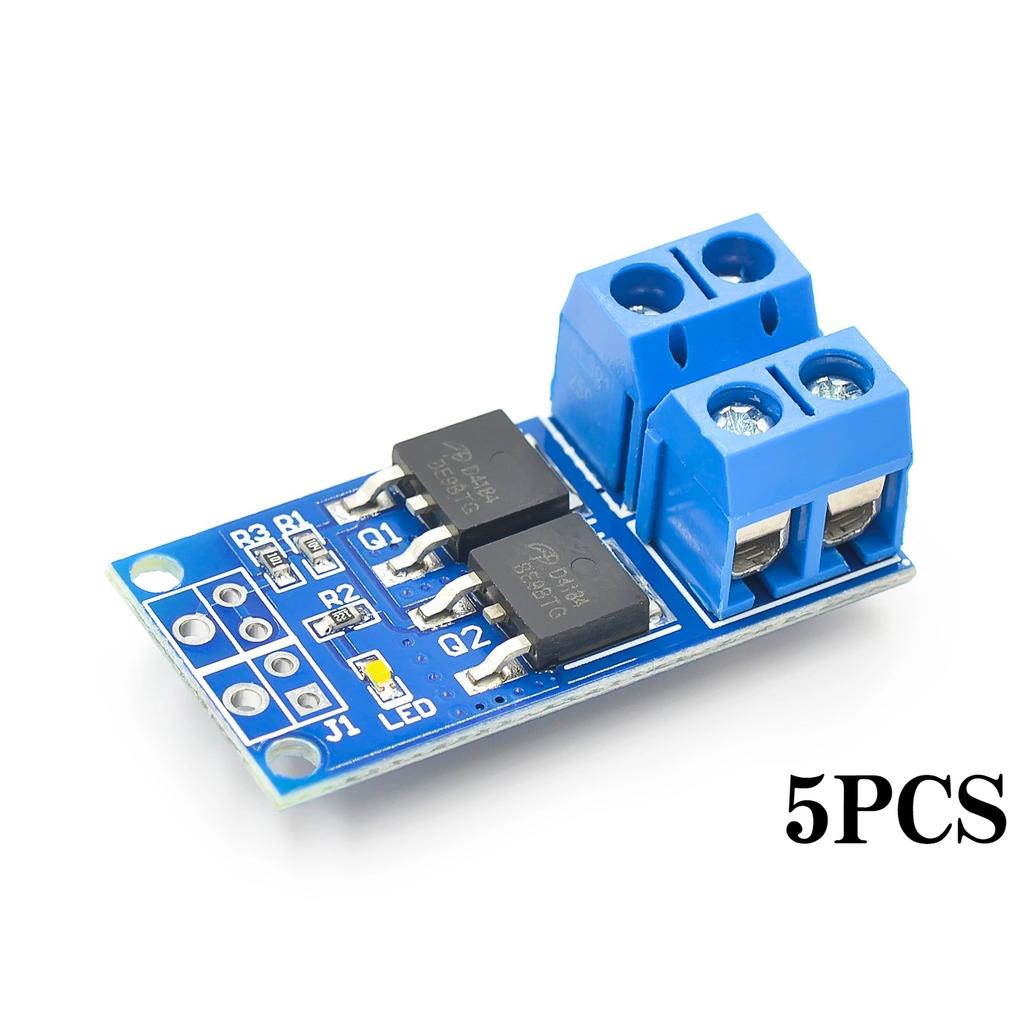

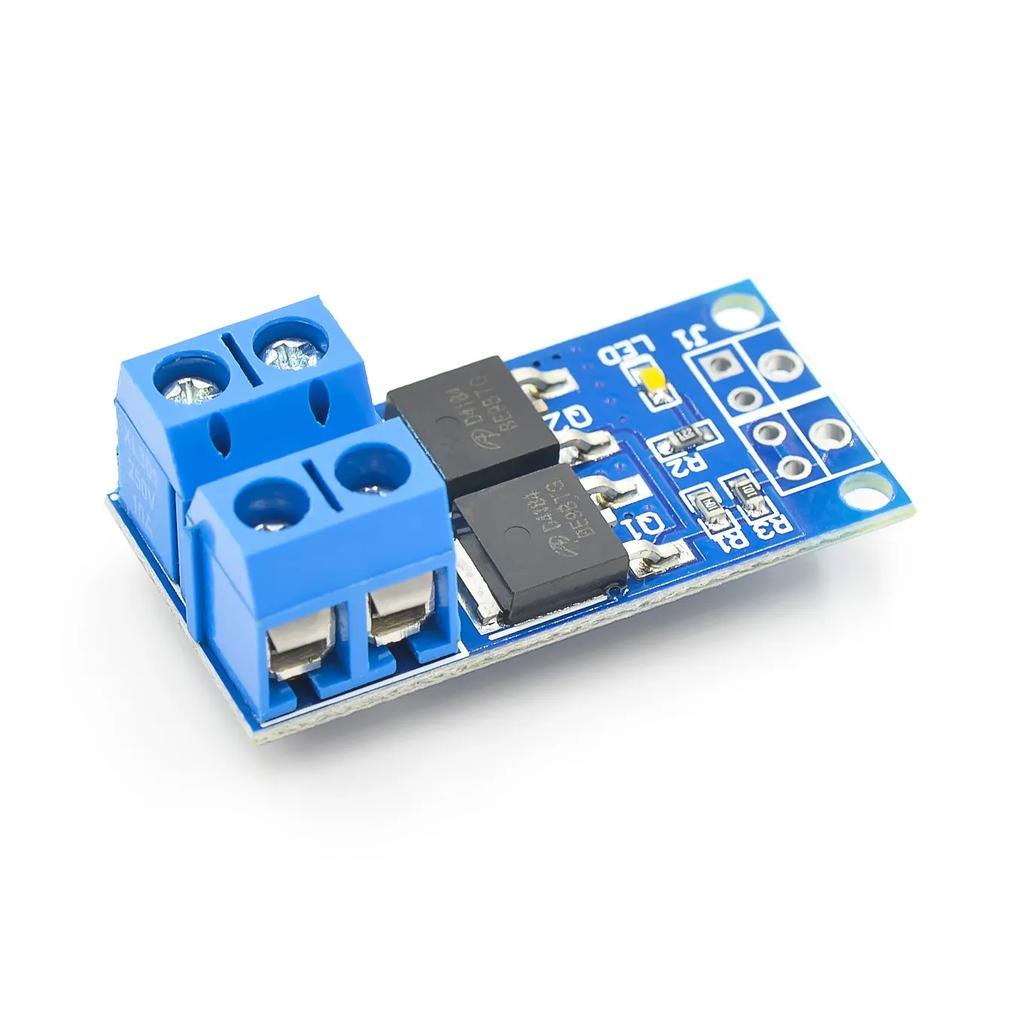

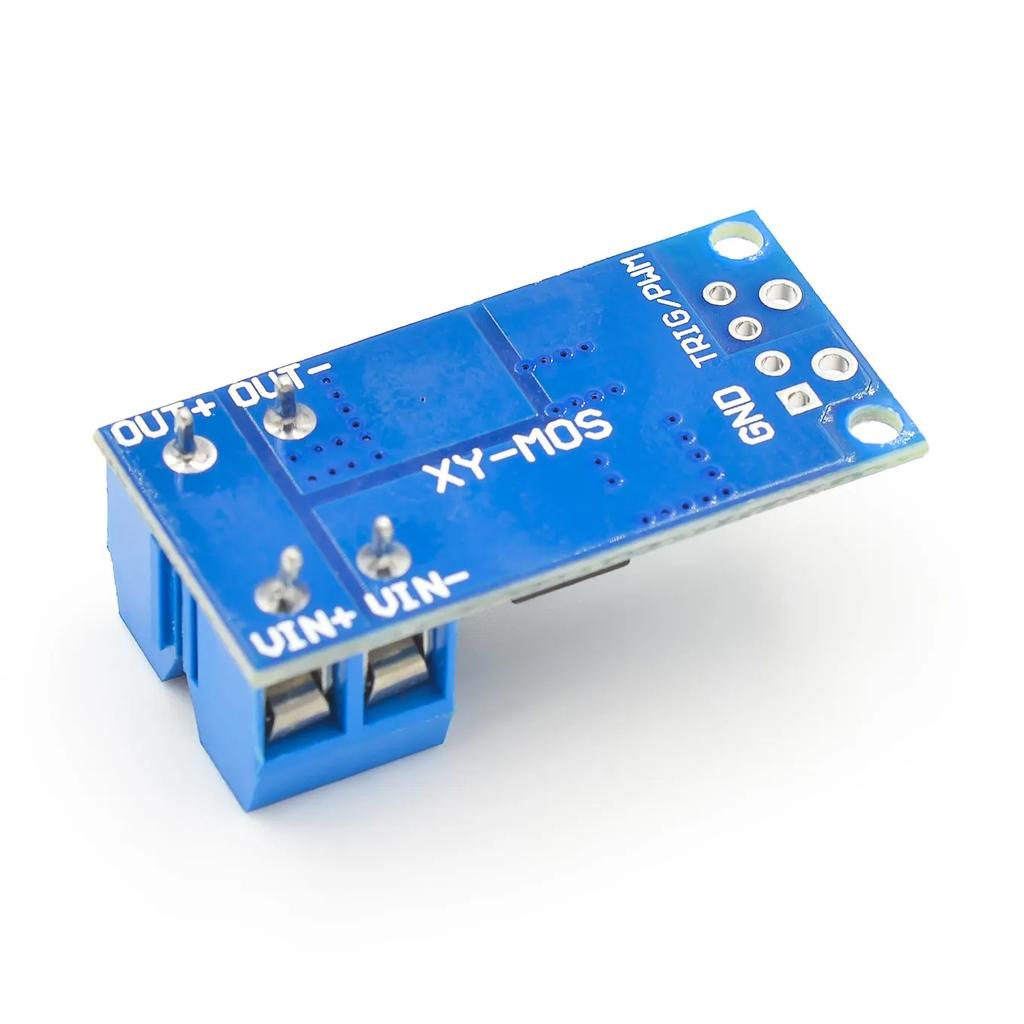

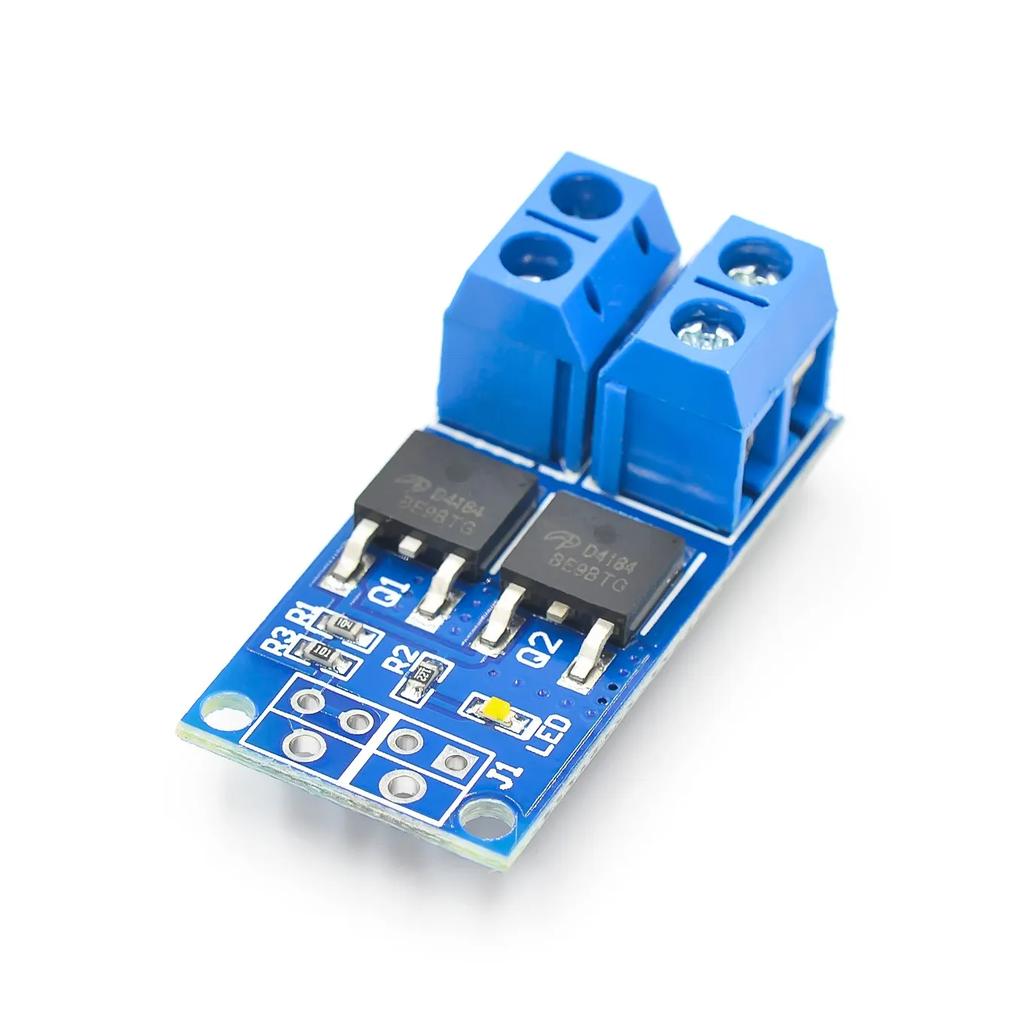

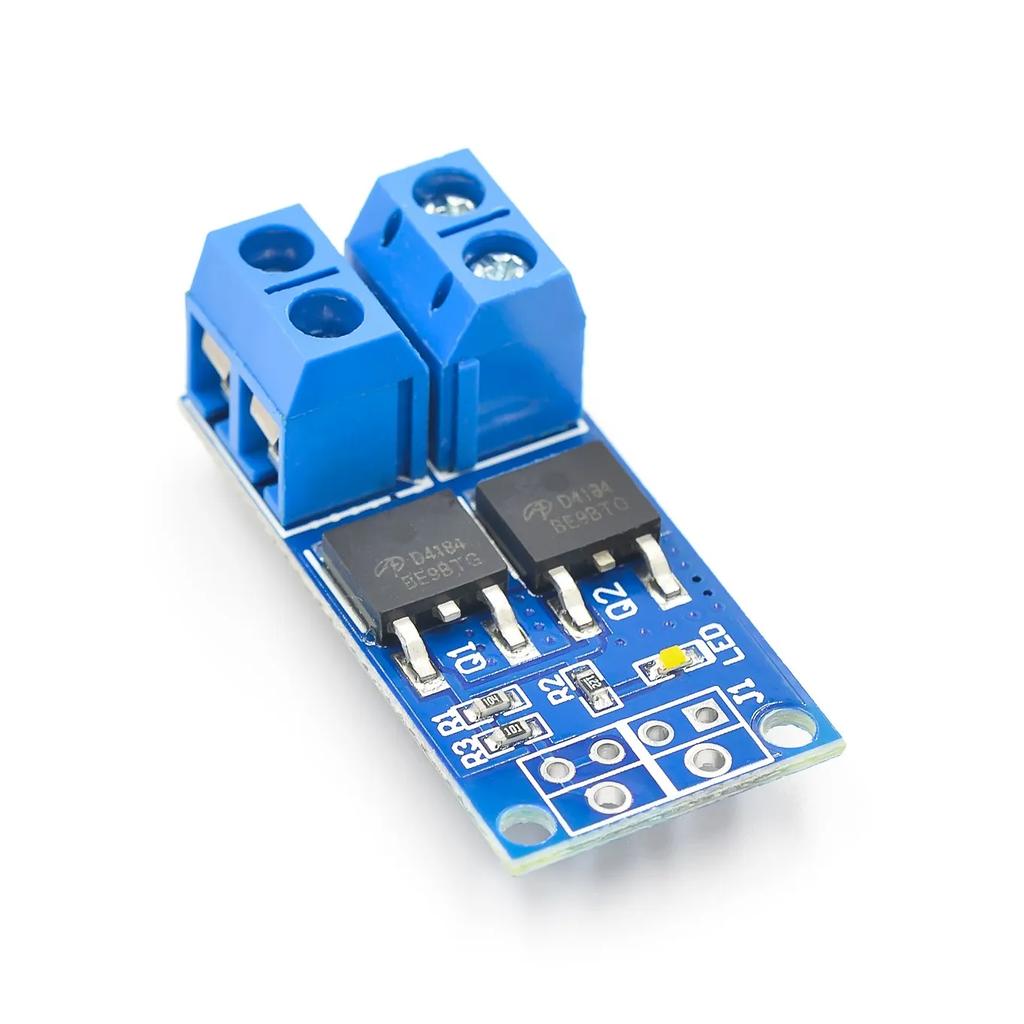

modname=ckeditormodname=ckeditor1. Adopting dual MOS parallel active output, the internal resistance is lower, the current is higher, and the power is strong. At room temperature, it is 15A and 400W, which meets the needs of most devices;
2. Wide voltage, supporting PWM;
3. Easily control high-power devices.
Working voltage: DC 5V --36V;
Trigger signal source: Digital high and low levels (DC3.3V-20V), can be connected to microcontroller IO ports, PLC interfaces, DC power supplies, etc., can be connected to PWM signals, signal frequency support 0-20KHZ.
Output capability: DC 5V-36V, continuous current of 15A at room temperature, power of 400W! Under auxiliary heat dissipation conditions, the current can reach 30A.
Service life: unlimited switching;
Working temperature: -40-85 ℃;
Size: 3.4 * 1.7 * 1.2cm
1. The positive pole of the signal is long on and can be triggered at a low level
2. The negative pole of the signal is long on and can be triggered at a high level
3. PWM control, PWM frequency range 0-20KHZ
High power MOS field effect tube trigger switch driver module PWM regulating electronic switch panel Modules window: 1. Adopt imported from two parallel MOS active output, lower resistance, electric current is bigger, strong power, room temperature 15 a, 400 w, met the most equipment used; 2. Wide voltage, perfect support PWM; 3. The control of high power equipment.
Product parameters and application: 1: working voltage: DC 5 v, 36 v. High and low level 2: the trigger signal source: the digital quantity (DC3.3 V - 20 V), can connect microcontroller IO port, PLC interfaces, dc power supply, etc., can answer the PWM signal, signal frequency 0-20 KHZ perfect support. 3: the output power: DC DC 5 v, 36 v, room temperature sustained current 15 a, power 400 w! Auxiliary cooling conditions, the maximum current can be up to 30 a. 4: application: output terminal can control high power devices, motors, light bulbs, LED lamp belt, dc motor, micro pump, solenoid valve, etc., can input, PWM control motor speed, the brightness of the lamp, etc. 5: life: unlimited switch; Working temperature: - 40-85 ; Size: 3.4 * 1.7 * 1.7 cm
