FX-AUDIO- FX-98E "Silver" 160W High-Power Digital Amplifier with TDA7498E Digital Amplifier IC

FX-AUDIO Brand Digital Stereo Power Amplifier (High-Power Output Class) Standard Model Equipped with the ST Microelectronics TDA7498E digital amplifier IC, this model delivers up to 160W x 2-channel stereo output. Designed for use as a simple power amplifier, this cost-effective model delivers rich expressive power. Based on a reference circuit, it utilizes cost-effective components that promise improved sound quality and is efficiently arranged, without omitting any circuitry that affects sound quality. Furthermore, by using high-grade components, including custom-made audio components, in key areas that affect sound quality, it achieves high-resolution, flat sound quality while keeping costs down.

Product Features

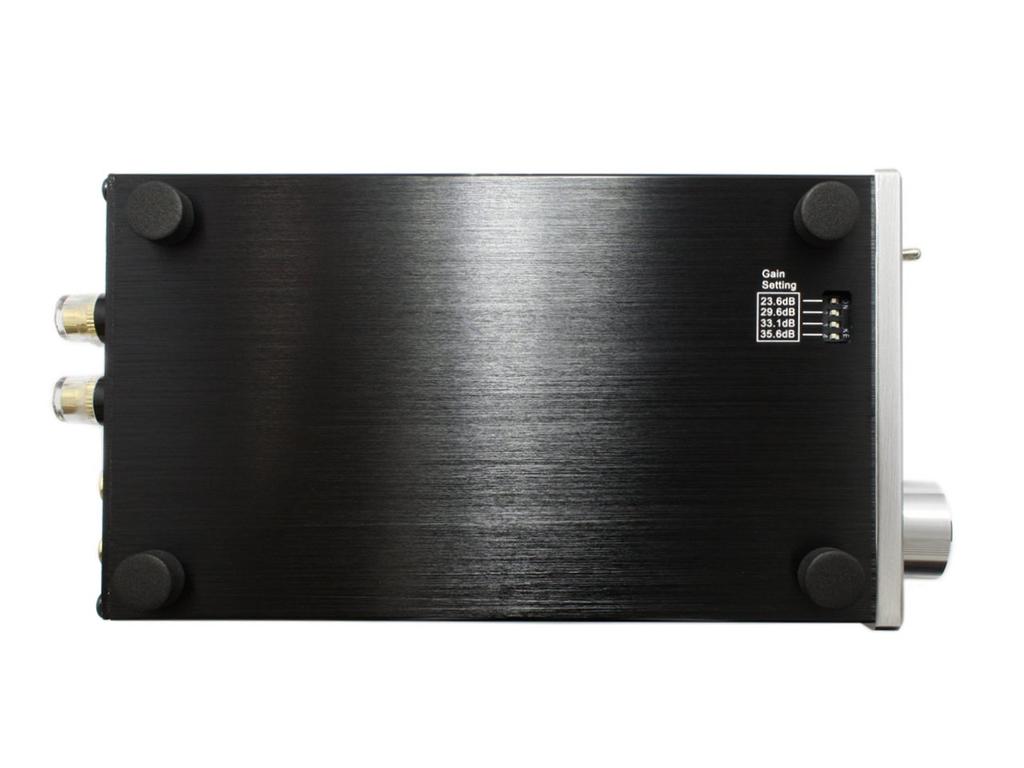

◆Equipped with a DIP Switch for Bass Gain Setting Four bass gain settings—23.6dB, 29.6dB, 33.1dB, and 35.6dB—can be selected using the DIP switch on the rear of the unit. Adjustments and combinations can be tailored to suit the type, capabilities, and gain of the preamplifier. *Default setting (ALL OFF): 23.6dB *Turn the gain setting switch with the power off.

-Backlighting on the back of the volume knob -Gold-plated RCA input connectors, gold-plated speaker output connectors, compatible with both straight and banana plugs -Lightweight, highly rigid aluminum alloy housing with a hairline finish -Anodized aluminum body for increased scratch resistance -CNC-machined front panel control holes with tapered edges for a high-quality finish

[Notes]

-The product warranty period is 6 months from the date of purchase. -Always turn the unit off when adjusting the gain. -This product's power supply is sold separately. An AC adapter is required.

[Product Specifications]

Color: Silver Warranty Period: 6 months from the date of purchase Digital Amplifier IC: ST Microelectronics TDA7498E Dual-BTL Class-D Digital Amplifier IC Maximum Output: 160W x 2 channels (32V power input, 4Ω) Signal-to-Noise Ratio: 92dB Speaker Compatible: 4Ω-16Ω Input Terminals: Stereo RCA Terminals (Gold-Plated) Output Terminals: 2-Channel Stereo Speaker Output (Gold-Plated Banana Plug Compatible Terminals) Power Specifications: DC 12V-32V, 2.5A or higher recommended (AC adapter sold separately) Power Connector: DC Jack (5.5mm outer diameter, 2.5mm inner diameter, center positive) Included Accessories: Simple Instruction Manual Dimensions: 33mm H x 96mm W x 168mm D (excluding protrusions) Weight: 495g Specifications and design are subject to change without notice for product improvement purposes. Standard model of high-output amplifier Audio-grade components are used for key capacitors that affect sound quality Toroidal core inductors are used Improved power supply for improved signal-to-noise ratio Active filter added to the power supply input stage
