Product Description
12KG TD-9512MG 180° High Torque Short Body Servo with Metal Gear, Low-Profile Digital Flex. Designed for 1:10, 1:8, and 1:12 RC Cars, SCX10, TRX4, Drift Robots, and Crawlers, these servos provide exceptional torque and control. Product Model: TD-9512MG
Dimensions: 40.8*20.2*28.5mm
Weight: 60g±5%
No-Load Speed: 0.12sec/60°@4.8V / 0.09sec/60°@7.2V
No-Load Current: 210mA@4.8V / 260mA@7.2V
Blocking Torque: 11.5kg.cm@4.8V / 14.5kg.cm@7.2V
Blocking Current: 2000mA±10%@4.8V 2700mA 10% @ 7.2V
Control Signal: Pulse Width Modified
Pulse Width: 500-2500µs
Neutral: 1500µs

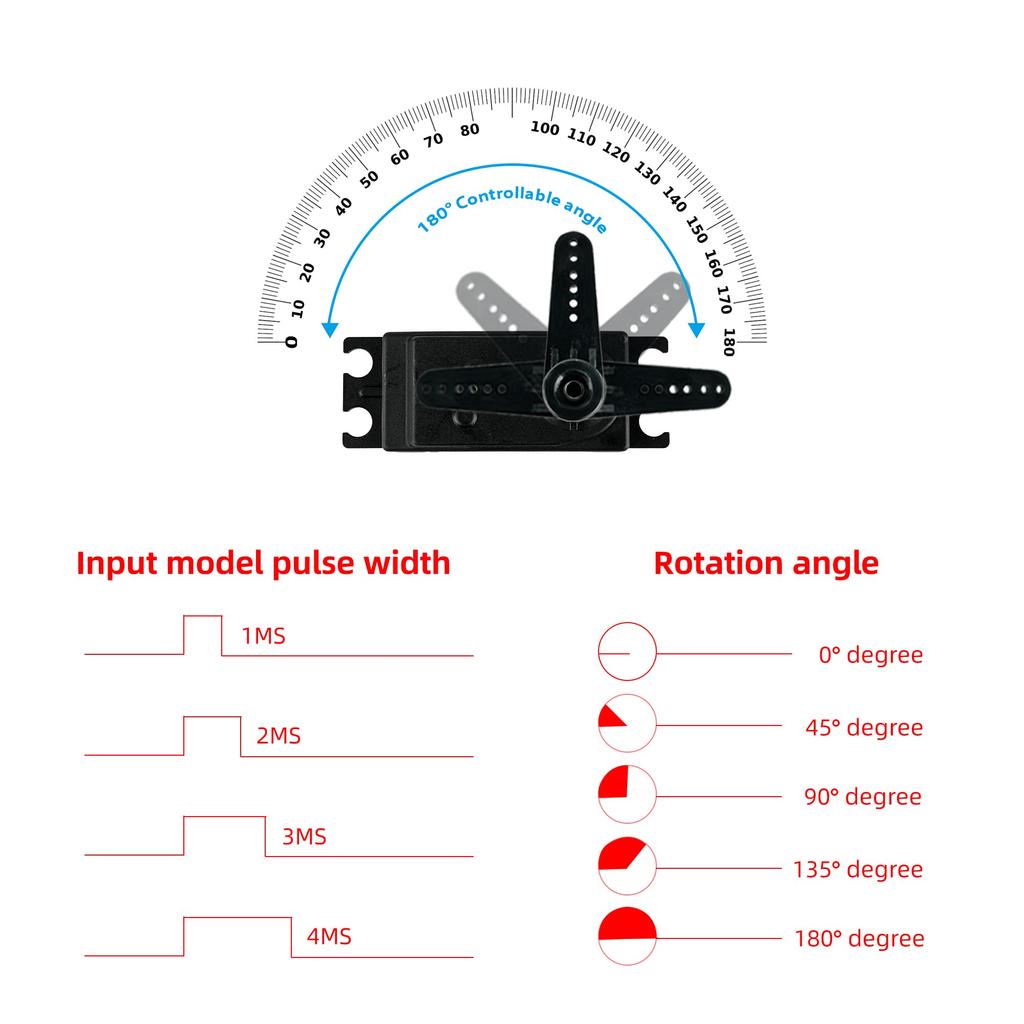

Rotation Angle: 180° +/- 3° (500-2500µs)
Remote Control: 180° +/- 3° (1000-2000µs)
Deadband Width: 5µs
Cable Length: 30cm
Yellow Signal Wire
Red Positive Wire
Brown Negative Wire
Safety Warning
Choking Hazard - Small Parts
High-Torque Servo Motor: High Voltage & Torque: 4.8-7.2V Torque: 11.5-14.5kg.cm Speed: 0.09-0.12sec/60°

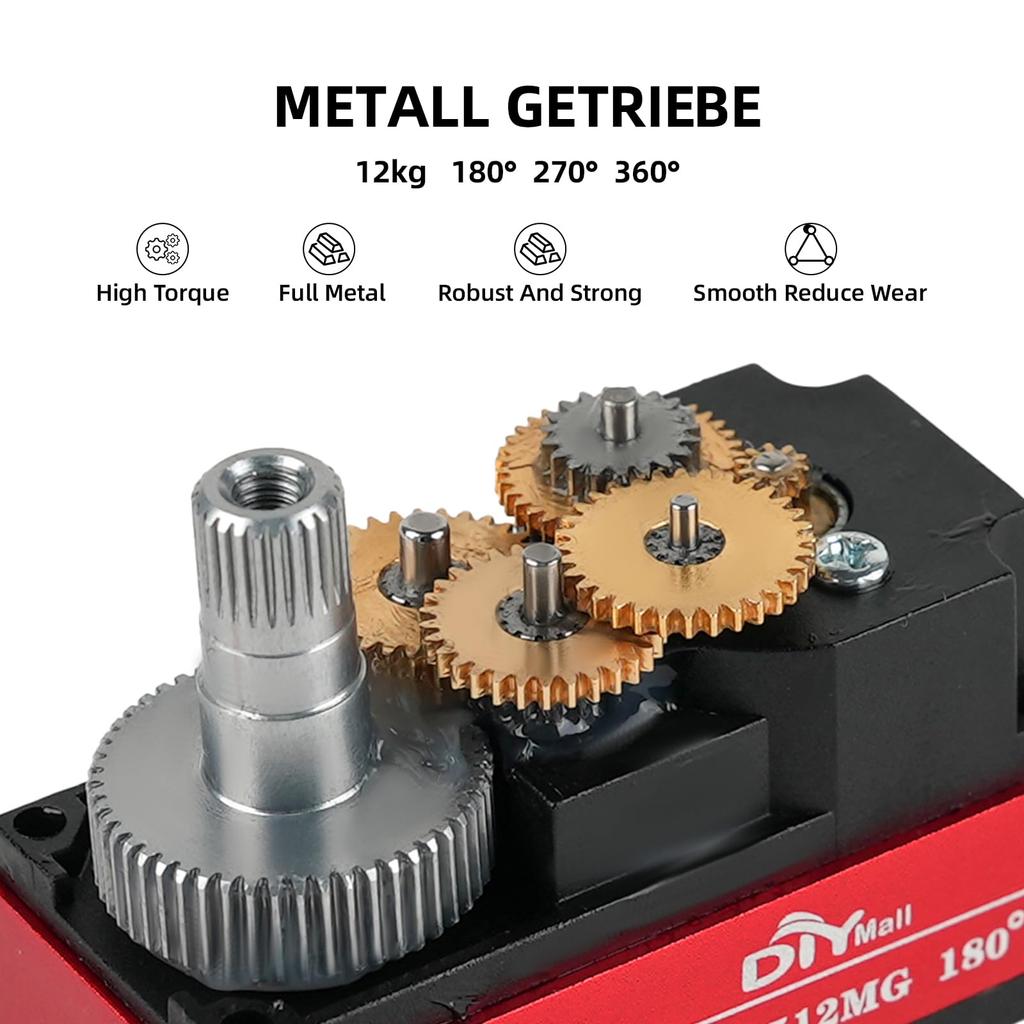

Rugged Construction: The metal gear train and durable plastic casing ensure long-lasting performance even under heavy loads. 180-degree angle control (500-2500 usec)
[Wide Rotation Range] 180-degree rotation allows for a wide range of movement and positioning.
[Compact Design] The short, low-profile body fits neatly into tight spaces with 1:10, 1:8, and 1:12 scale RC models. Suitable for road cars, airplanes, RC robots, drift cars, flatbed cars, electric cars, and RC helicopter models.
[Complete Package] Includes all necessary accessories, including horns, screws, and gaskets, for easy installation and setup.
