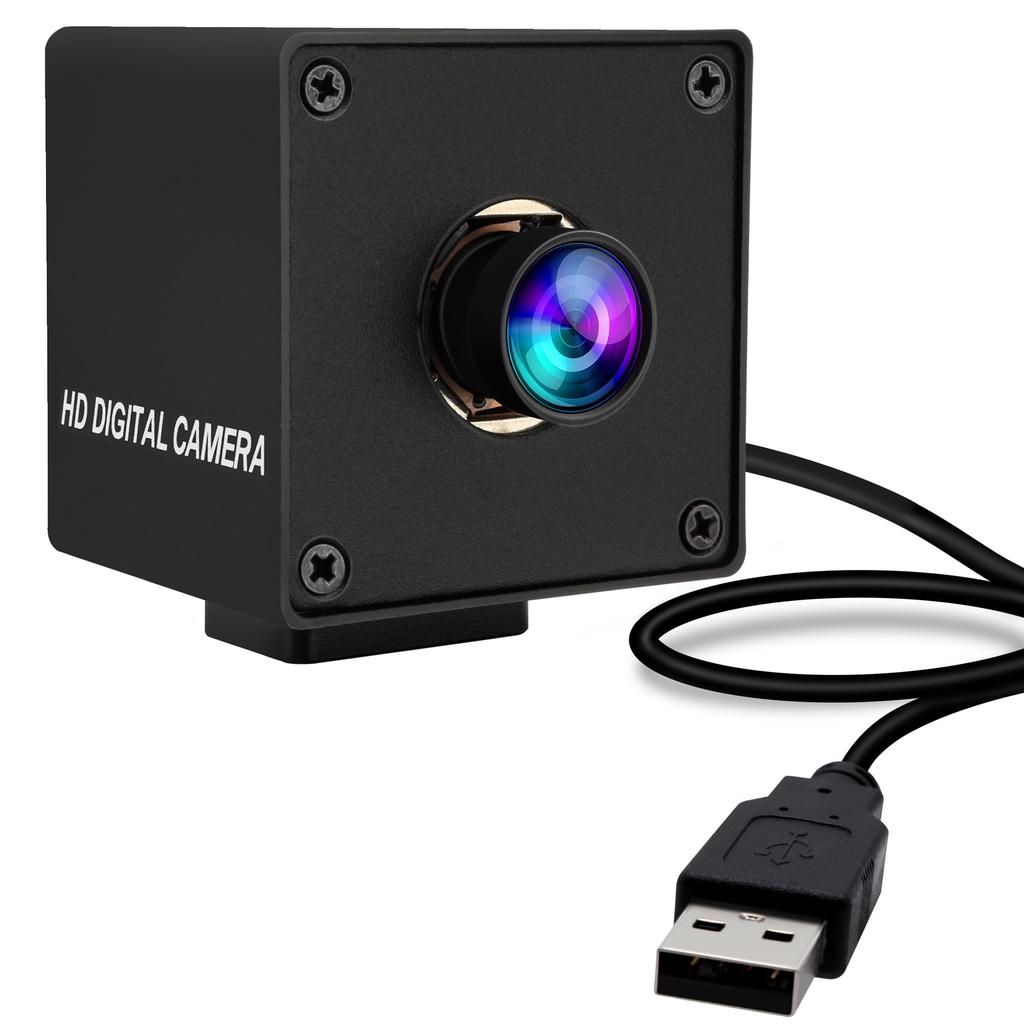

12 Megapixel USB Camera Module, high resolution, max resolution 3840X3040.
Capture fast-moving objects with high-speed frame rate of 1080P@120fps.
The 1/2.3-inch sensor IMX577 delivers high image quality and low power consumption.
HD megapixel wide-angle 100 degree low distortion lens, wide viewing angle, HFOV about 88 degree.
YUY and MJPEG compression formats are optional.
Mini illumination: 0.1Lux.
High-speed USB 2.0 interface for high-resolution PC camera interfacing.
Small, lightweight, ultra-small outline, low profile for embedded applications.

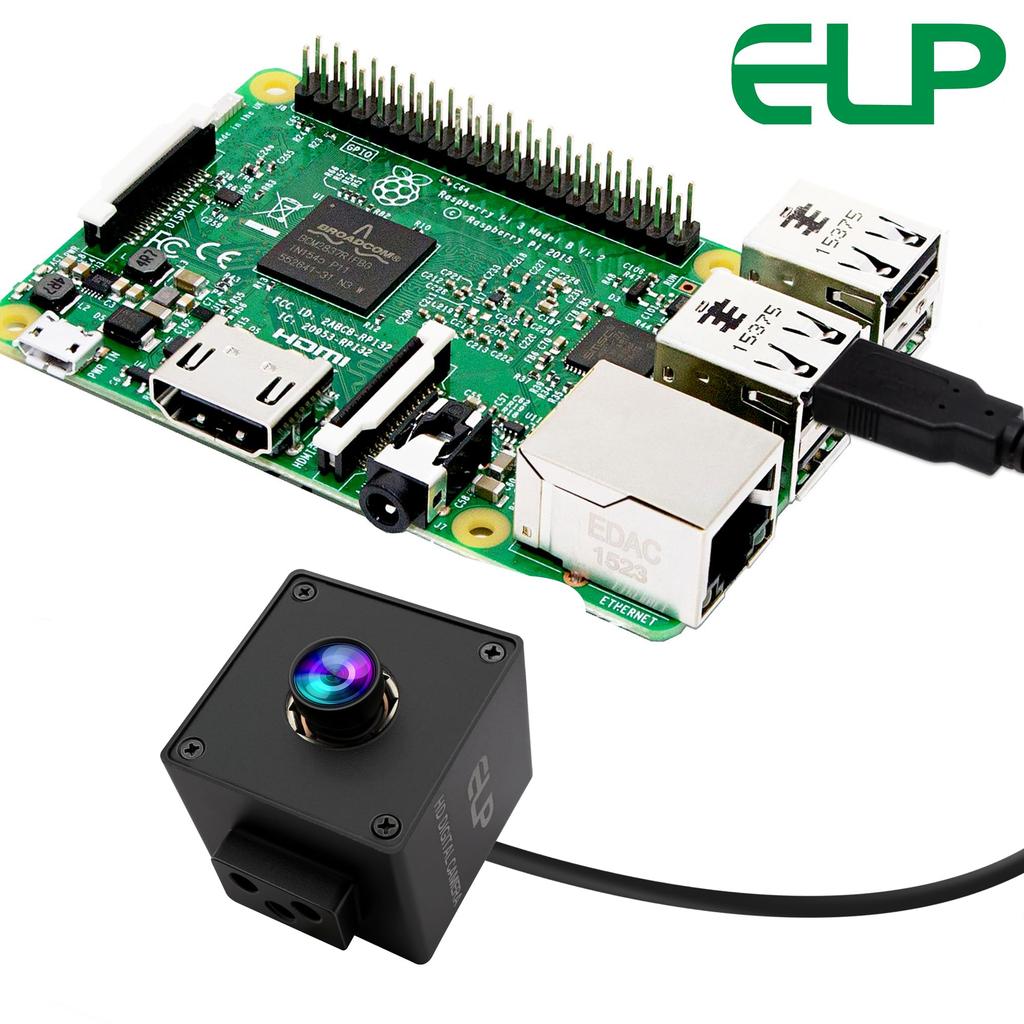

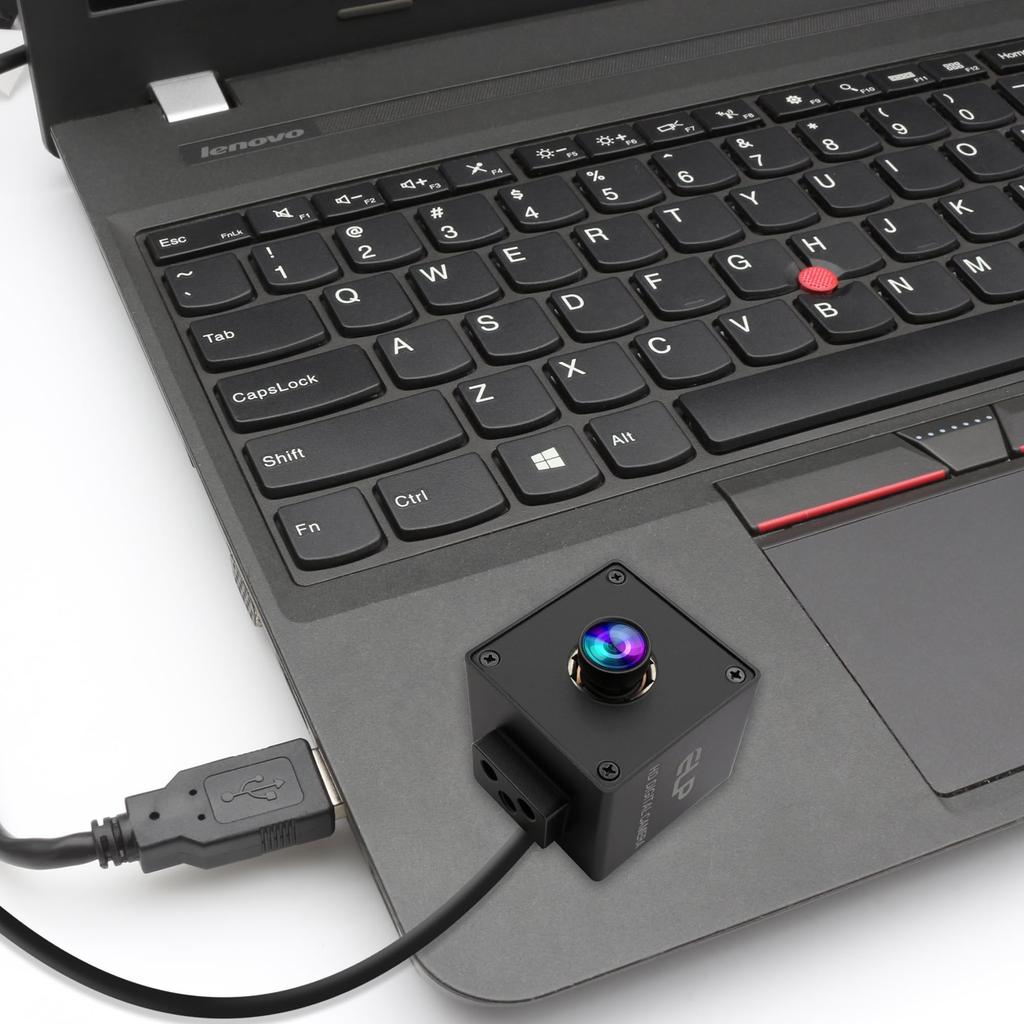

Camera with UVC for Computer, Laptop, PC, Raspberry Pi, Jetson Nano etc.
Applications: This mini 38mmx38mm camera board can be mounted in the most hidden and tight positions, such as home surveillance system, wildlife photography, dash cam, baby camera, 3D printer monitoring, mini light barn camera for laser engraving machine, etc.
Model Number: ELP-USB12MP01-AFKV100
Image sensor SONY IMX577 (1/2.3 inch)
maximum. Resolution 3840(H) *3040(V)
Sensor size/Image size 10.7mm x 8.5mm/5.95mm x 4.71mm
Default resolution 3840(H) *2880(V)
Compression format: MJPEG / YUY2 (YUYV)
Resolution and frame rate 3840X3040 MJPEG@20fps YUY2@1fps
3840X2880 MJPEG@20fps YUY2@1fps
3840X2160 MJPEG@30fps YUY2@1fps
2592X1944 MJPEG@30fps YUY2@1fps
2048X1536 MJPEG@30fps YUY2@3fps
1600X1200 MJPEG@30fps YUY2@5fps
1920X1080 MJPEG@120fps YUY2@5fps
1280X960 MJPEG@120fps YUY2@5fps
1280X720 MJPEG@120fps YUY2@5fps
1024X768 MJPEG@120fps YUY2@5fps
960X720 MJPEG@120fps YUY2@5fps
800X600 MJPEG@120fps YUY2@20fps
640X480 MJPEG@120fps YUY2@30fps
320X240 MJPEG@120fps YUY2@30fps
Center resolution 1000LW/PH (center)
S/N ratio 24dB
Sensitivity 0.65V/lux-sec@550nm
Minimum illuminance 0.1lux
Shutter Type: Electronic Rolling Shutter / Frame Exposure
Connection port type: USB2.0 high speed
AEC/AWB/AGC support
Autofocus support (optional)
Adjustable parameters: Brightness, contrast, hue, saturation, sharpness, gamma, white
Balance, exposure
Lens parameters: Distortion-free lens, HFOV approx. 88 degrees (other lenses are optional)
Power Supply and Connectors USB Bus Power 4P-2.0mm Socket
Power supply voltage DC 5V
Power supply current 240mA
Operating temperature -10°C to 65°C
Storage temperature -20°C to 85°C
USB cable 3M
Operating system support: Win XP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
UVC-compatible Linux (linux-2.6.26 or later)
MAC-OS X 10.4.8 or later
UVC compatible Android 4.0 or later
