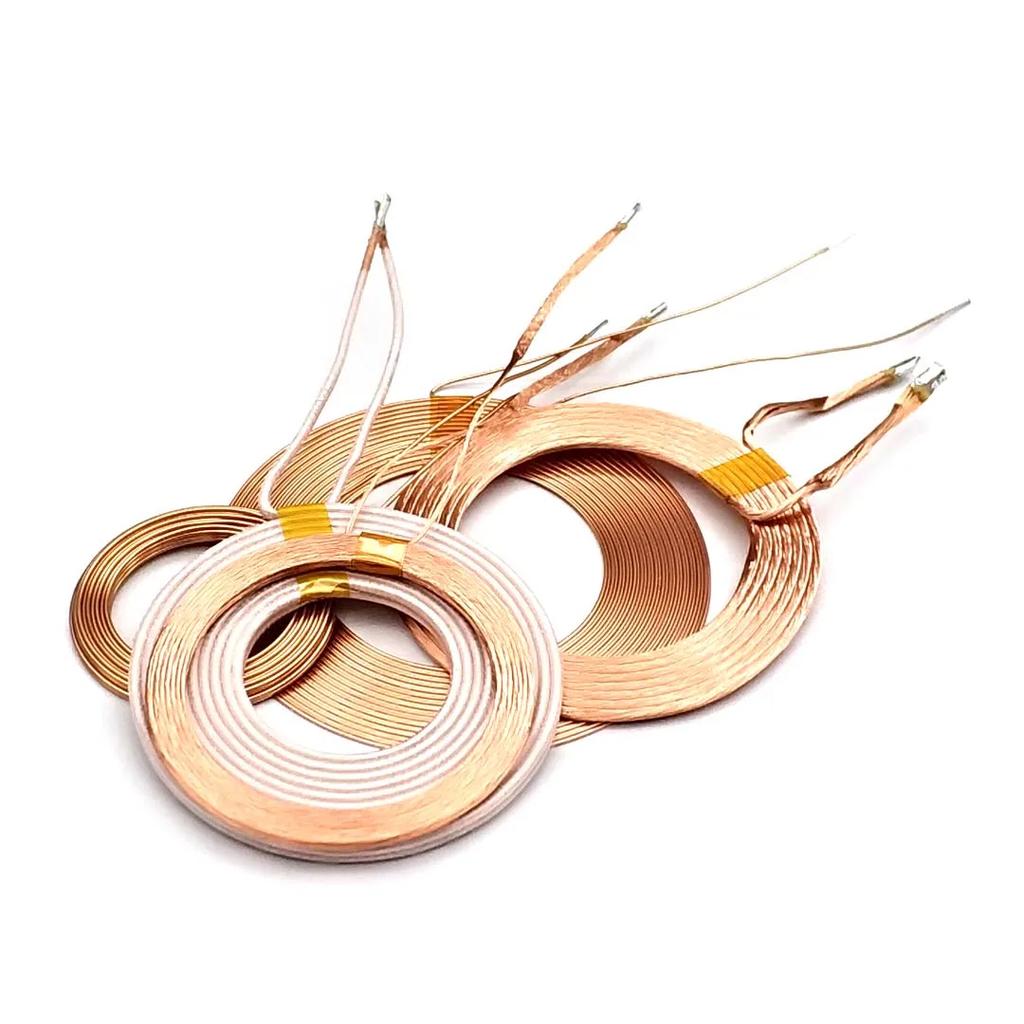

47x32MM 12.6uH
Product name:12.6uH antimagnetic receiving coil
Length: 47mm
Width 32mm
Lead length 50mm
10MM 20uH
Coil specifications:
Wire diameter: 0.2mm
Coil outer diameter: 10mm
Coil thickness: 1.3mm
Coil inductance: 20uH
32MM 3.7uH
Outside diameter: 32mm
Inductance: 3.7uH
Thickness: 1mm
Multi strand high current coil
43MM 14uH
The line diameter 1.1mm
The outer diameter 43mm
The inner diameter 20mm
Single layer thickness 2.3mm
Can be applied to the XKT-412 chip
Working current 2000mA, this coil is mainly used in wireless charging scheme, this coil is a standard machine.
52MM 50uH
Coil Specification:
Wire Diameter:0.4mm
Coil Outer Diameter:52mm
Coil Thickness:1mm
Coil Inductance:50uH
38MM 30uH
Coil Specifications:
Diameter:0.5mm
Coil Diameter:30mm
Diameter:38mm
Coil Thickness:1.8mm
Coil Inductance:30uH
20MM 10uH
Coil Specification:
Wire Diameter:0.3mm
Coil Outer Diameter:19mm
Coil Thickness:0.6mm
Coil Inductance:10uH
30MM 30uH
Coil Specification:
Wire Diameter:0.5mm
Coil Outer Diameter:30mm
Coil Thickness:1.9mm
Coil Inductance:30uH
38MM 28.5uH
Coil Specification:
Coil Outer Diameter:38mm
Coil Inner Giameter:28mm
Coil Thickness:1.5mm
Coil Inductance:28.5uH
45MM 3uH
Outer diameter: 45mm
Inner diameter: 30mm
Inductance: 3uh
Wire diameter: 1.1mm
Lead length: 25mm
Package Included
1 Pcs Wireless charging coil
