Feature:
1. PA66, ALUMINUM ALLOY MATERIAL: Flexible coupler is made of premium PA66 material, which has good wear resistance, corrosion resistance, and electrical insulation.
2. SLIDING DESIGN: More effective compensation for radial and angular deviations, achieving more accurate operation.
3. EASY TO INSTALL: Detachable design, easy to install, with clamping screw fastening method, not easy to loosen.
4. SCOPE OF APPLICATION: Mainly used for CNC machine tools, servo motors, spindles, stepper motors, etc.
5. EXCELLENT PERFORMANCE: Strong torsion can absorb vibration and drive with appropriate large torsion. Strong hardness, durable, and responsive.
Specification:

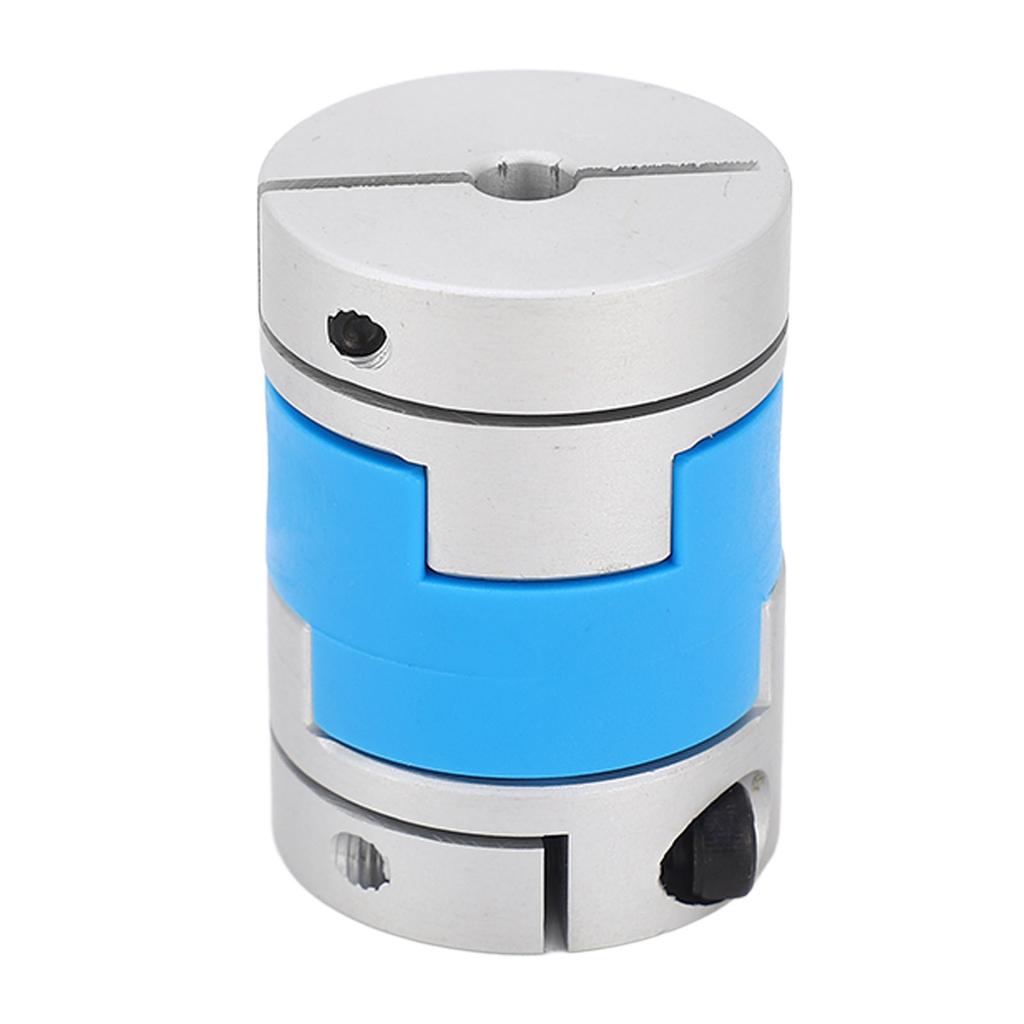

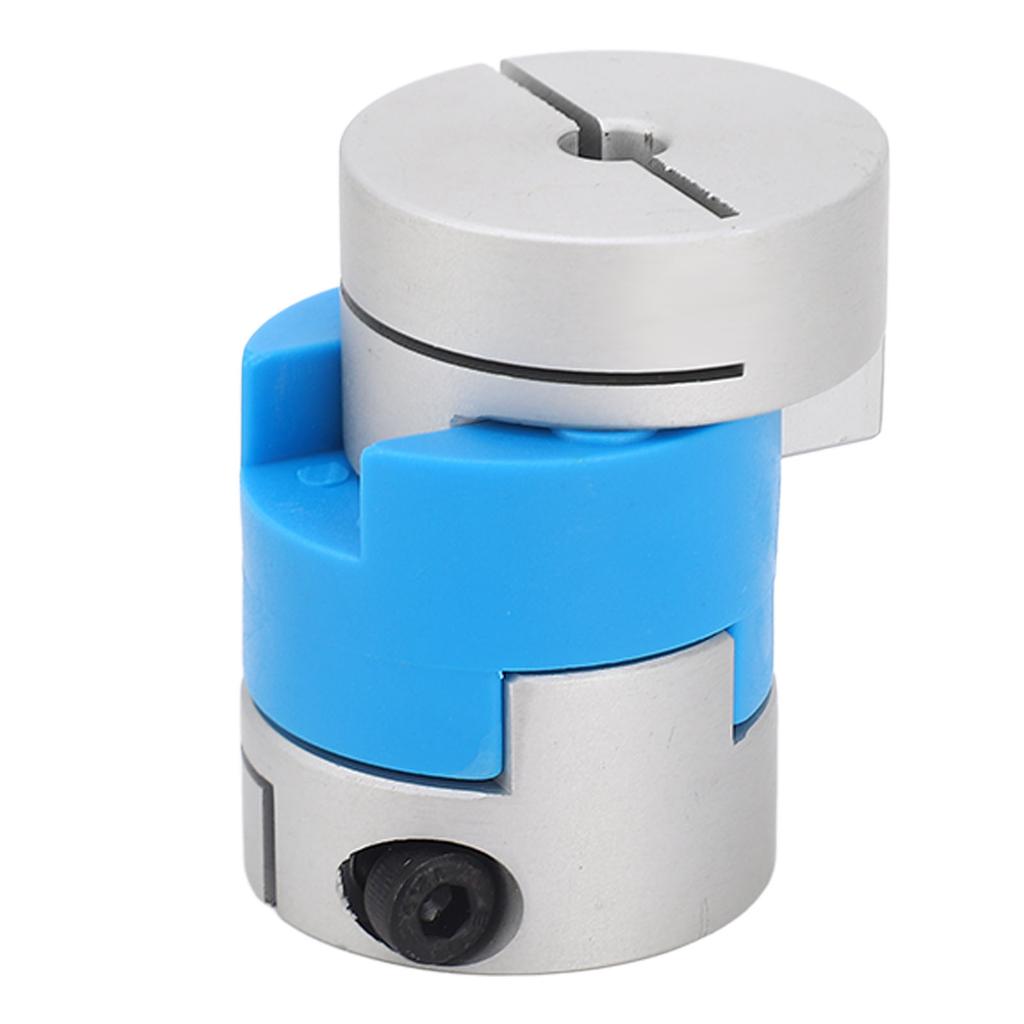

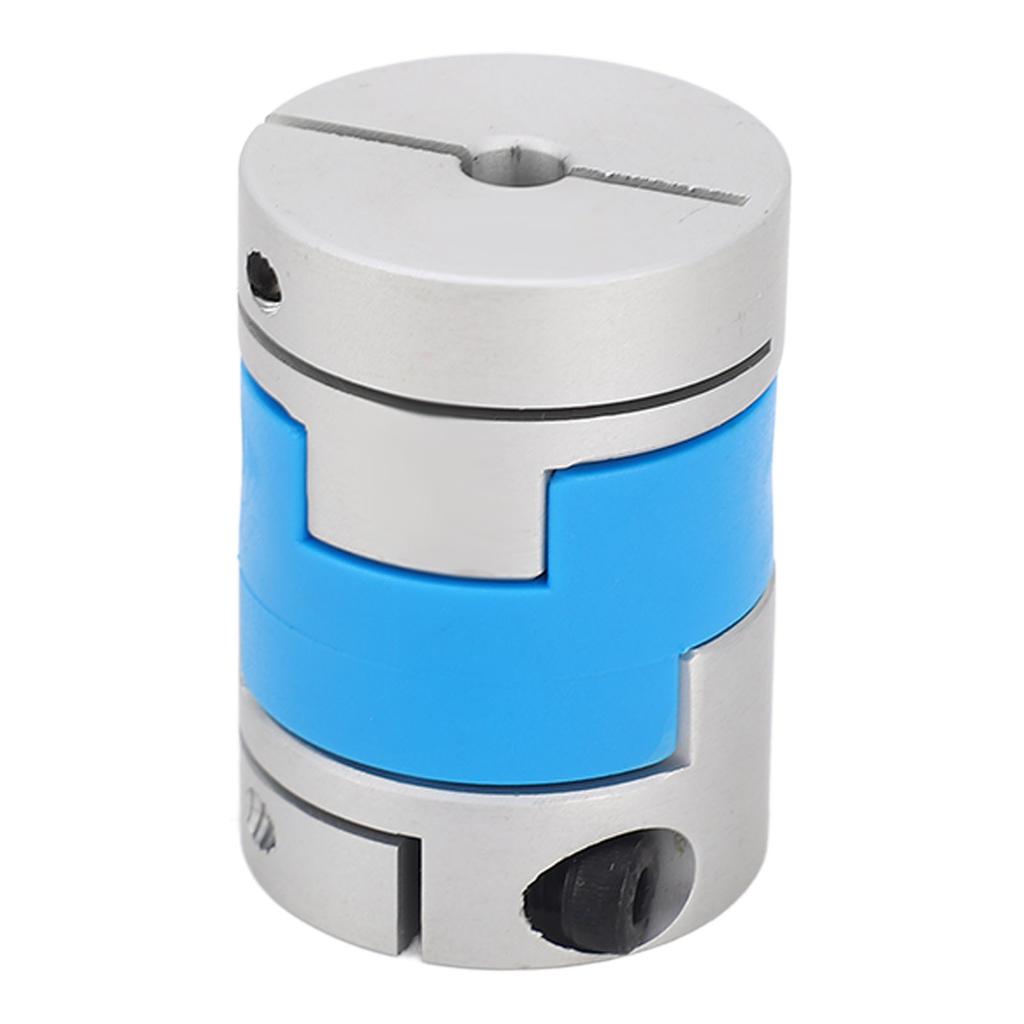

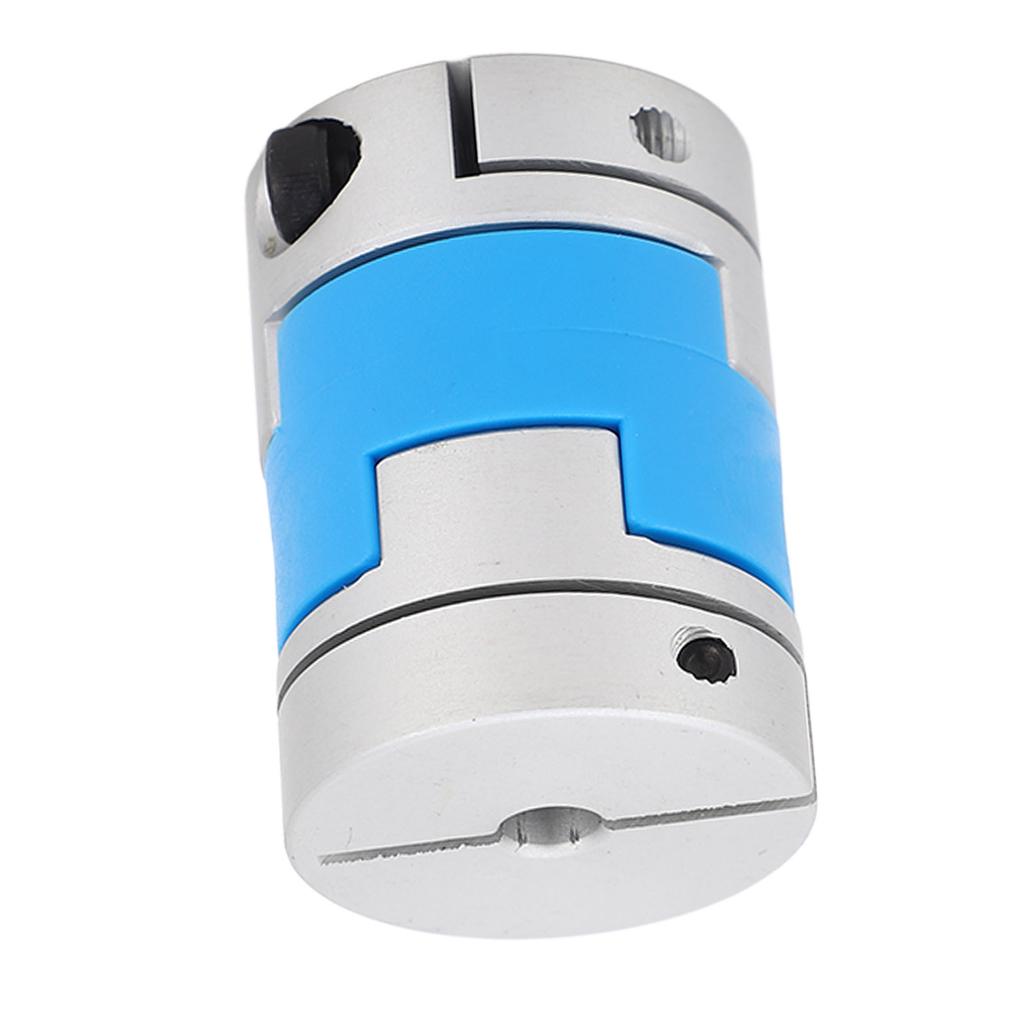

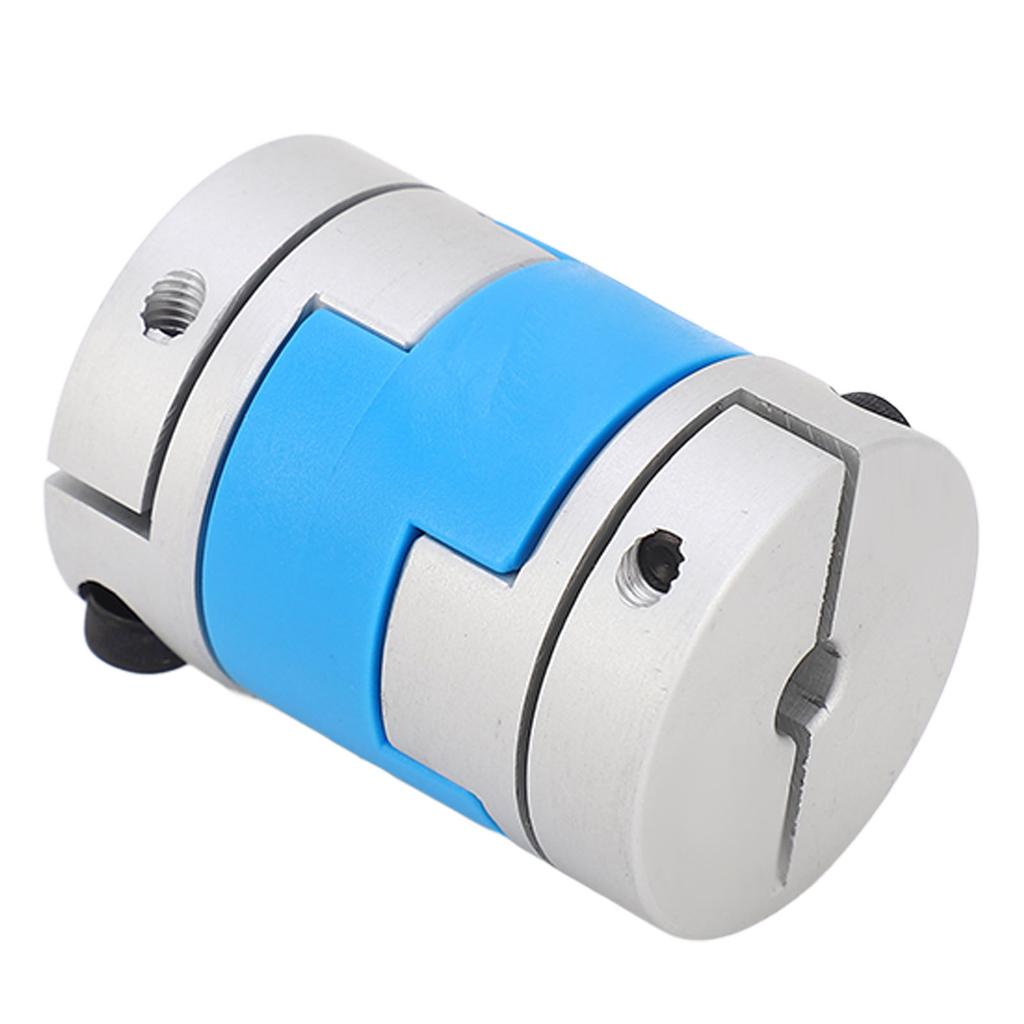

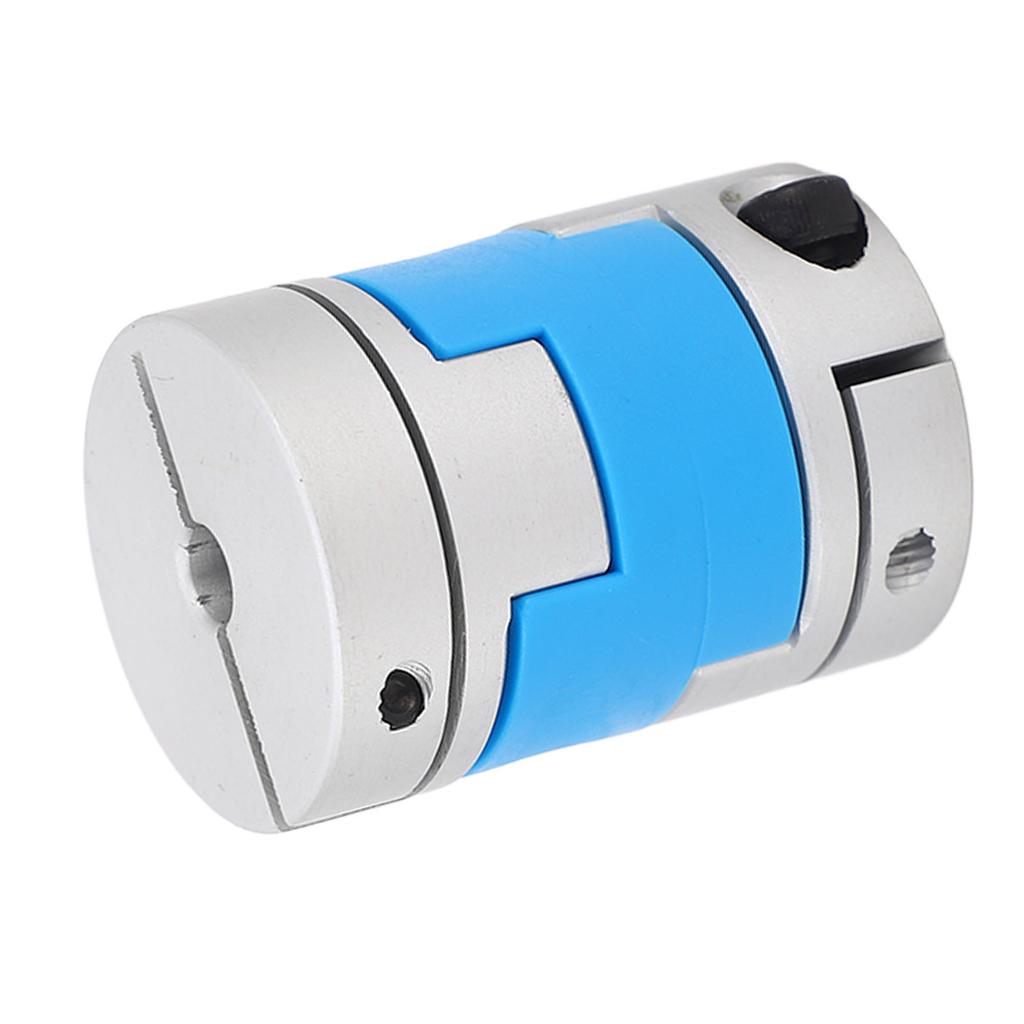

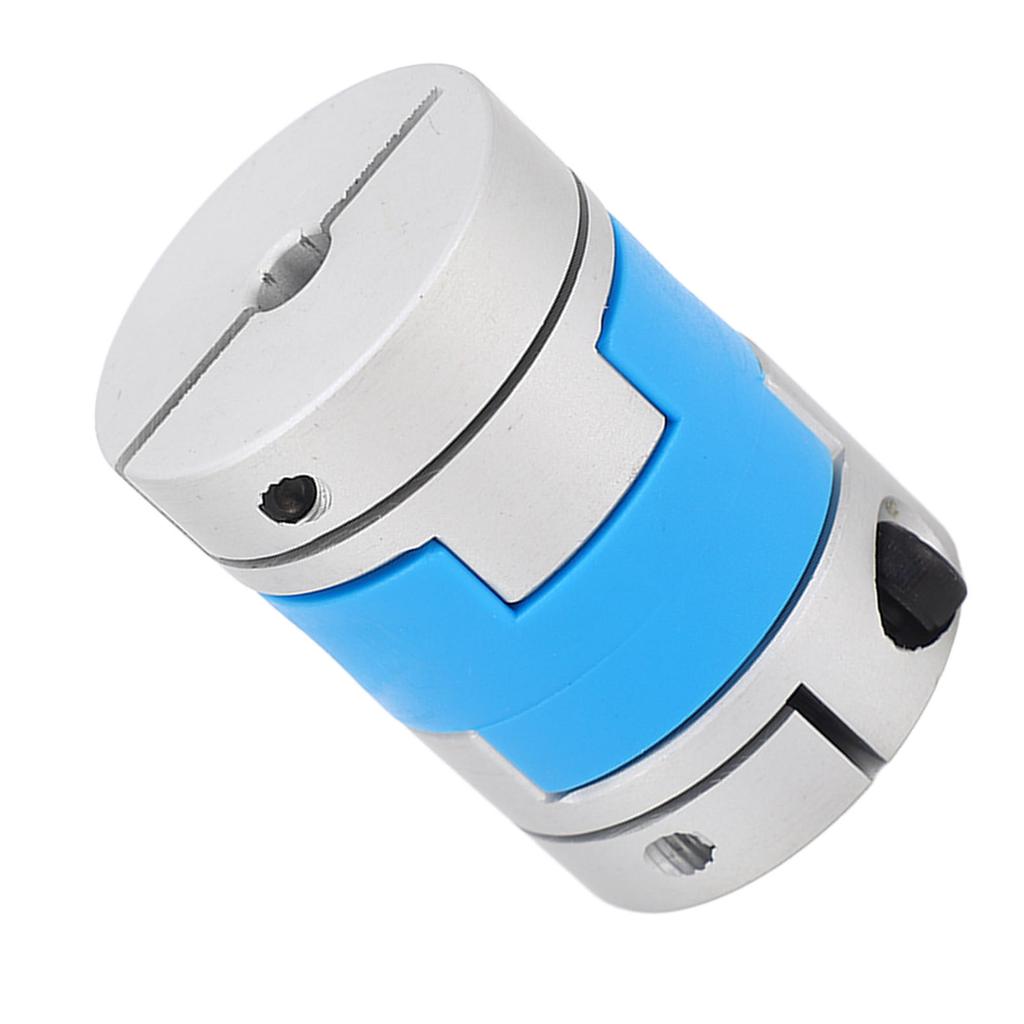

Item Type: Flexible Coupler
Mode: D32L45
Product Size: Approx. 32 x 45mm 1.26 x 1.77in
Rated Torsion: 4.5N. M
Allowable Eccentricity: Approx. 2mm 0.08in
Allowable Deviation Angle: Approx. 3mm 0.12in
Maximum Speed: 4800rpm
Static Torsion Stiffness: 270N.Mrad
Commonly Used D1, D2, Shaft Diameter (mm): Approx. 5mm 0.2in, 6mm 0.24in, 8mm 0.31in, 9mm 0.35in, 9.525mm 0.38in, 10mm 0.39in, 11mm 0.43in, 12mm 0.47in, 12.7mm 0.5in, 14mm 0.55in, 15mm 0.59in, 16mm 0.63in
Thread: M4
Shaft Sleeve Material: Aluminum Alloy
Rubber Block Material: PA66
Surface Treatment: Anodizing treatment.
Package List:
1 x
Flexible CouplerPA66, ALUMINUM ALLOY MATERIAL: Flexible coupler is made of premium PA66 material, which has good wear resistance, corrosion resistance, and electrical insulation.
SLIDING DESIGN: More effective compensation for radial and angular deviations, achieving more accurate operation.
EASY TO INSTALL: Detachable design, easy to install, with clamping screw fastening method, not easy to loosen.
SCOPE OF APPLICATION: Mainly used for CNC machine tools, servo motors, spindles, stepper motors, etc.
EXCELLENT PERFORMANCE: Strong torsion can absorb vibration and drive with appropriate large torsion. Strong hardness, durable, and responsive.
