Feature:

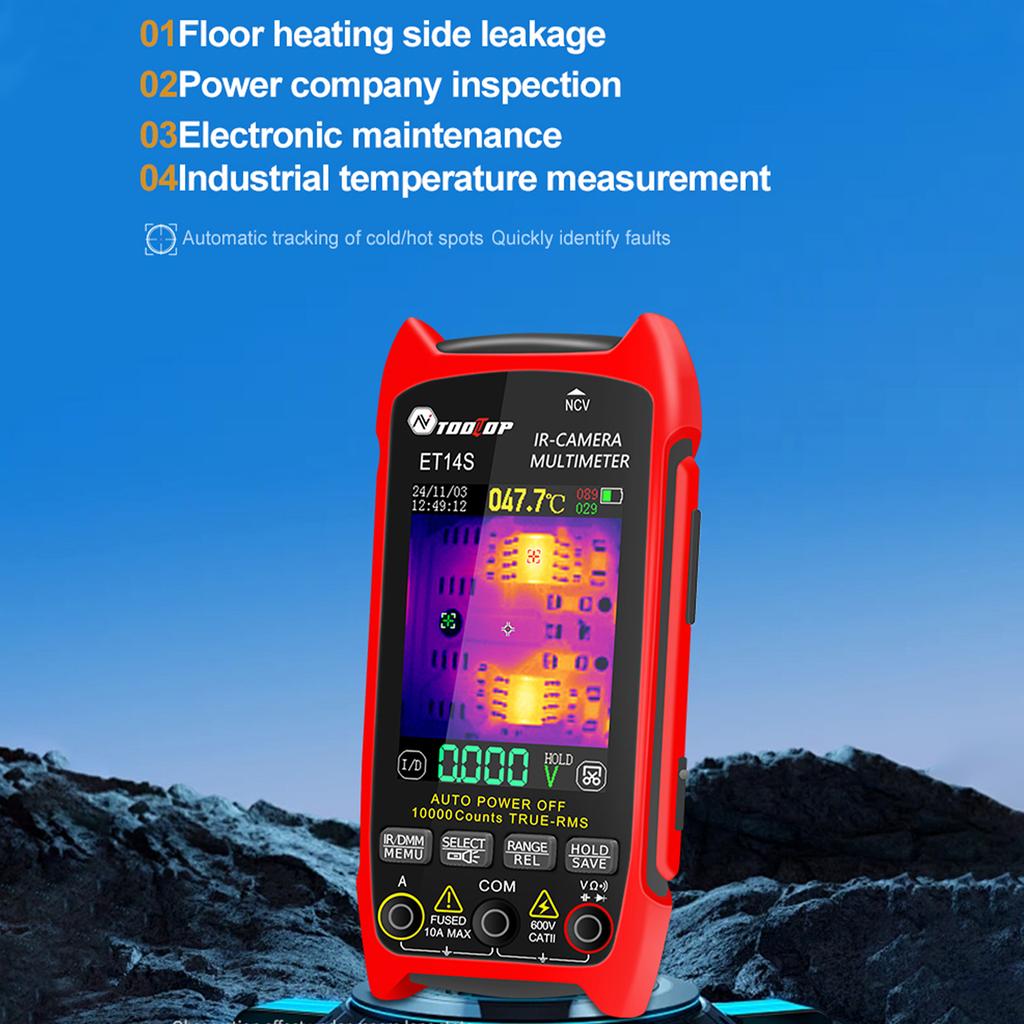

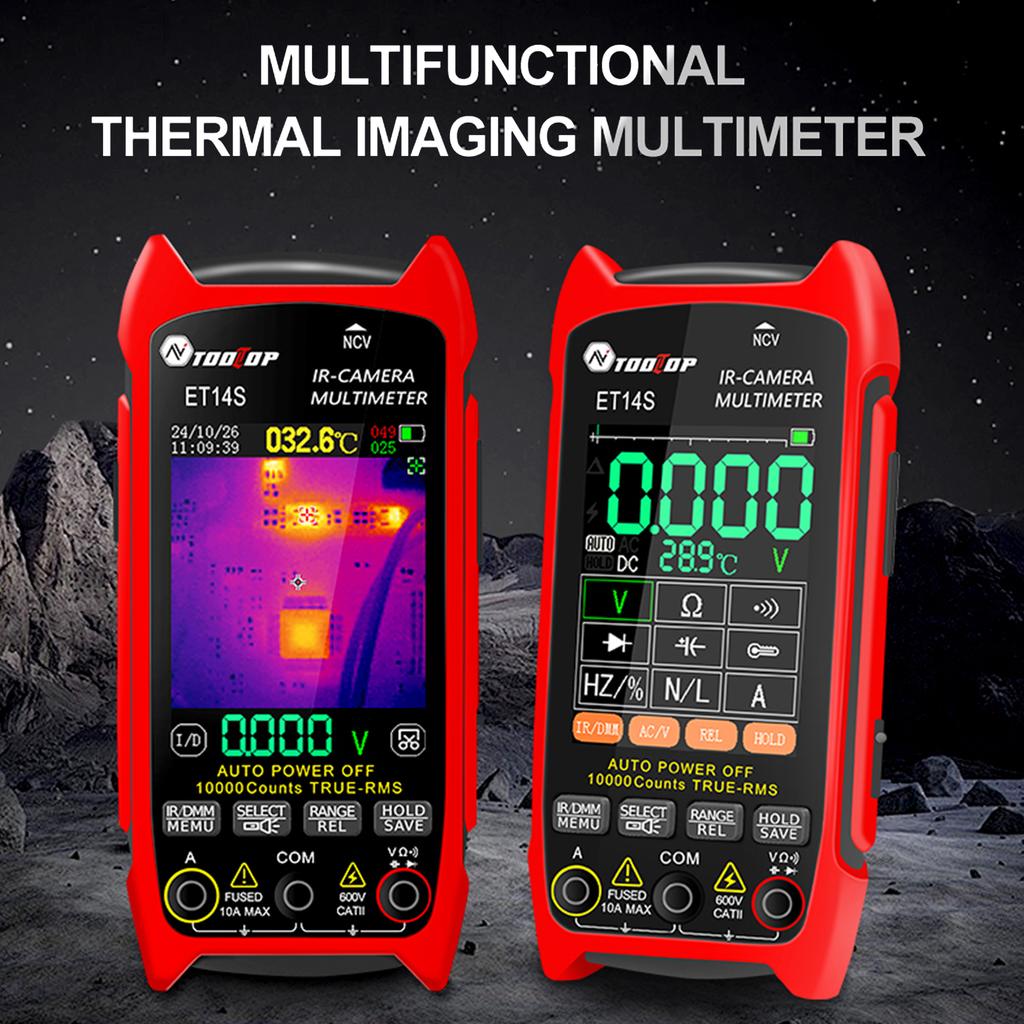

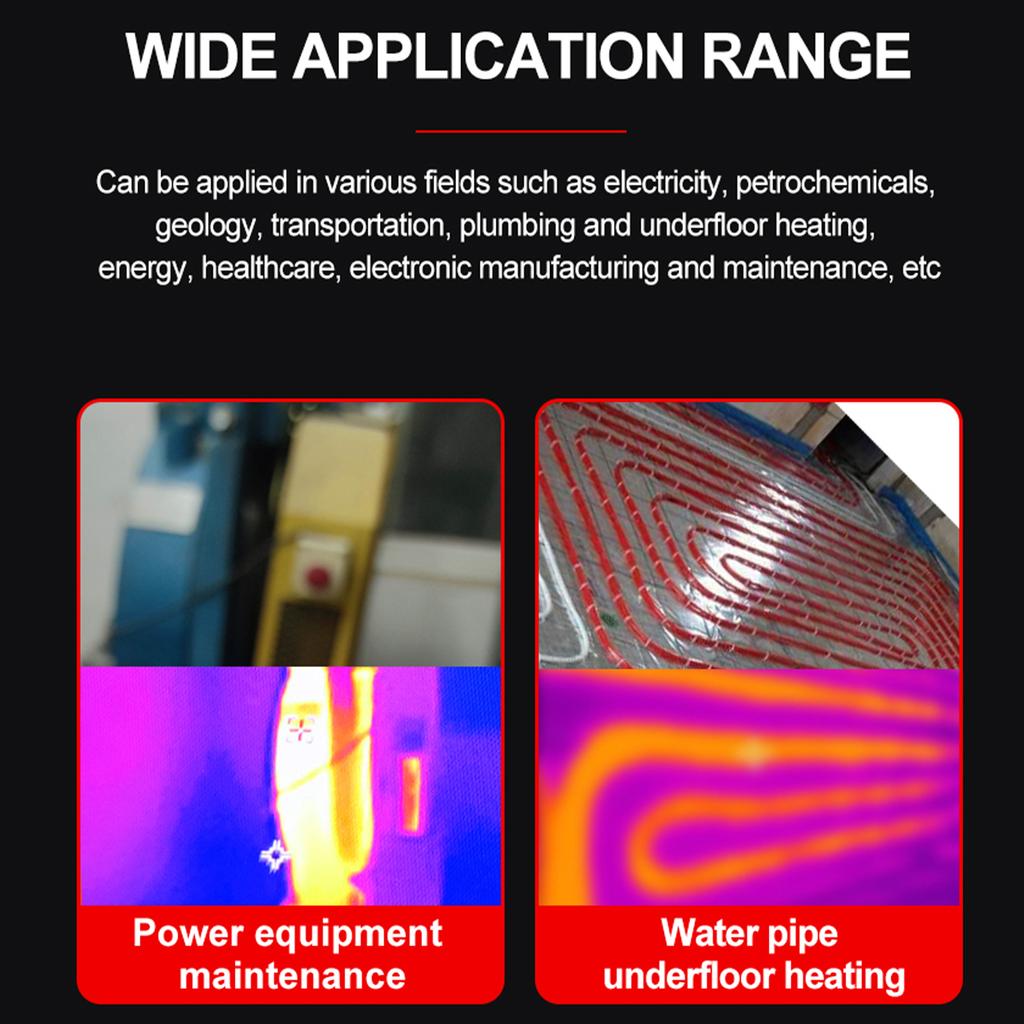

1. 2-in-1 Design: Thermal Imaging Multimeter integrates thermal imaging and multimeter functions to meet various measurement needs. It can accurately measure the temperature range of -20 celsius to 550 celsius , providing an integrated solution for temperature detection and electrical parameter measurement. Compact and lightweight, easy to carry to various work sites such as transportation, energy, electronic manufacturing, etc., it is a practical tool for electricians and maintenance technicians.

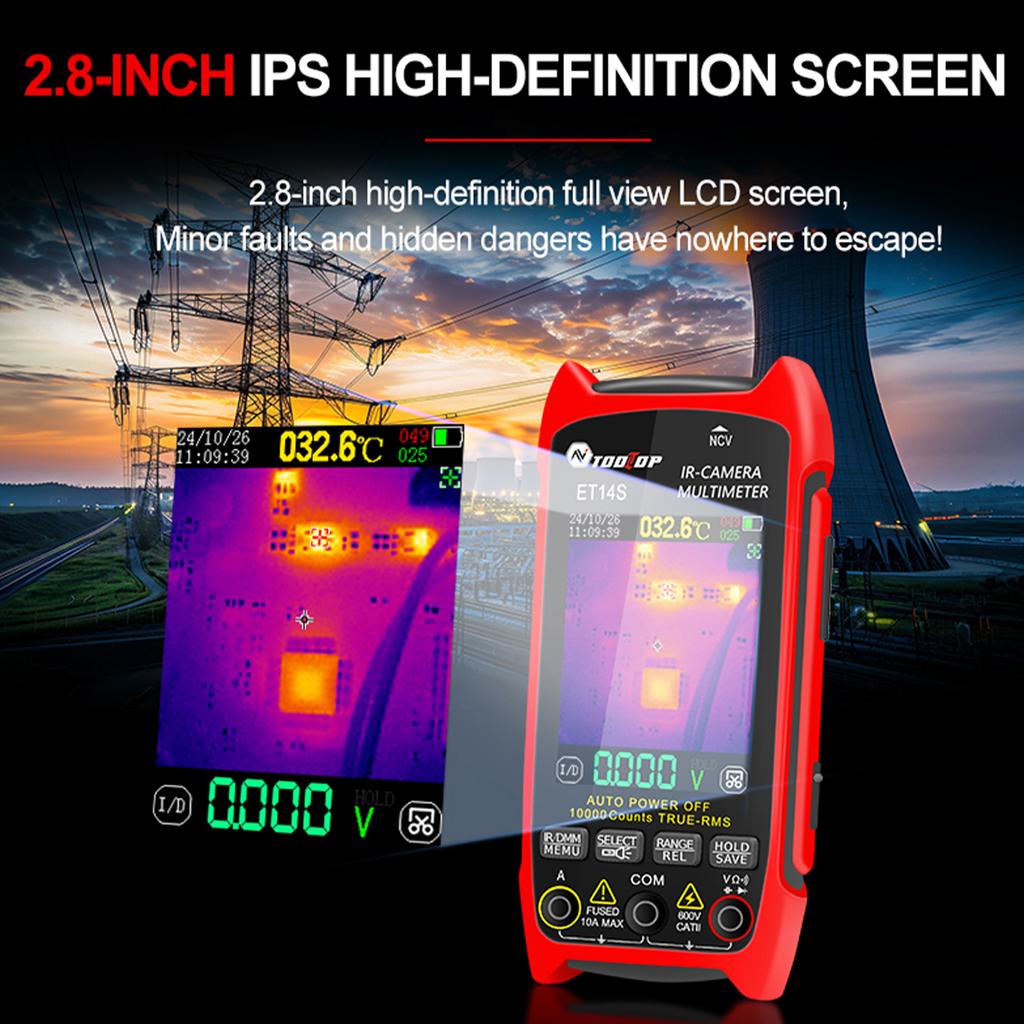

2. 2.8-inch Touch Screen: Equipped with a 2.8-inch touch screen, 240 * 240 high infrared resolution provides clear imaging. Support one click direct access function, with simple and intuitive operation. Users can set parameters as needed to make the measurement results more accurate.

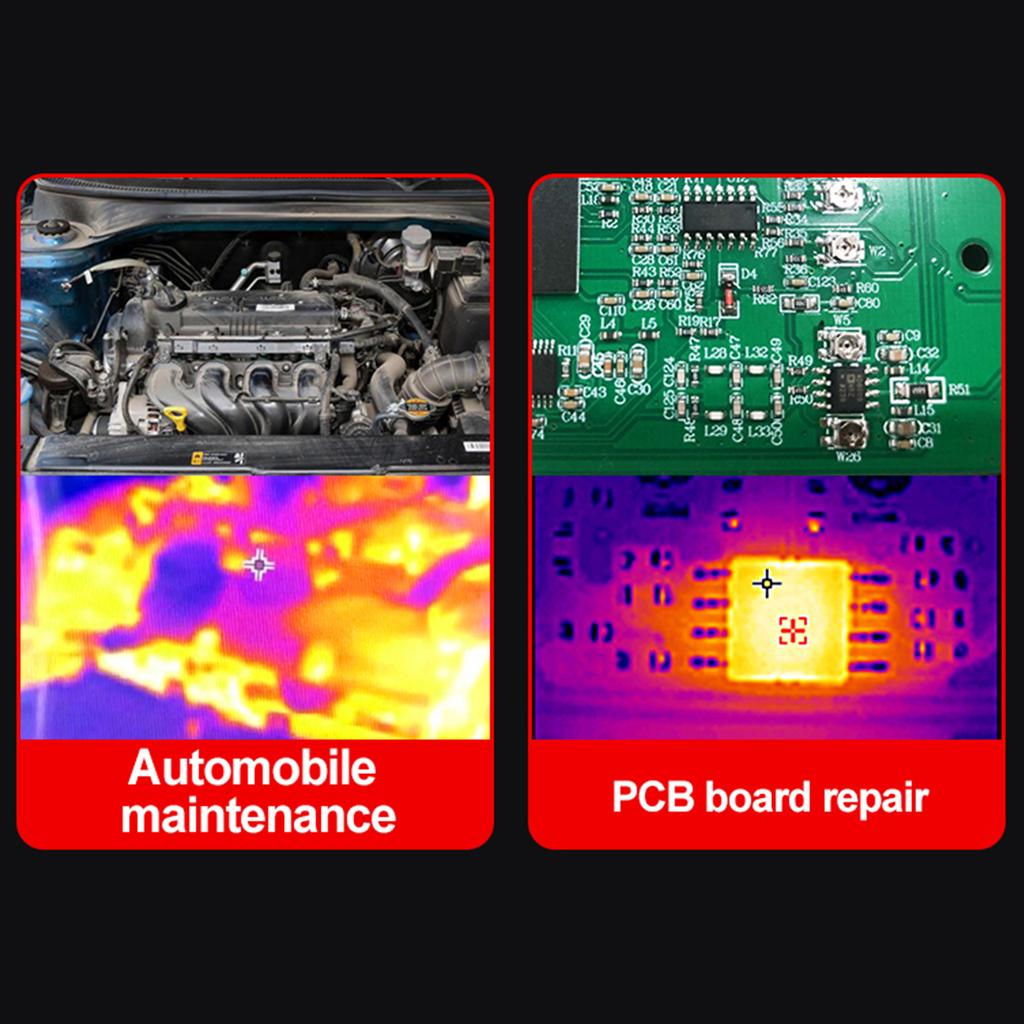

3. Thermal Imager Function: The display screen clearly shows the maximum, minimum, and center temperatures, allowing users to have a more comprehensive understanding of temperature distribution. The product is pre-set with five color palettes: iron red, rainbow color, fusion color, white hot, and white hot highlight. Users can freely switch according to their actual needs to enhance the observation effect. And it has automatic testing hotspot tracking function, which can quickly locate temperature abnormal areas.

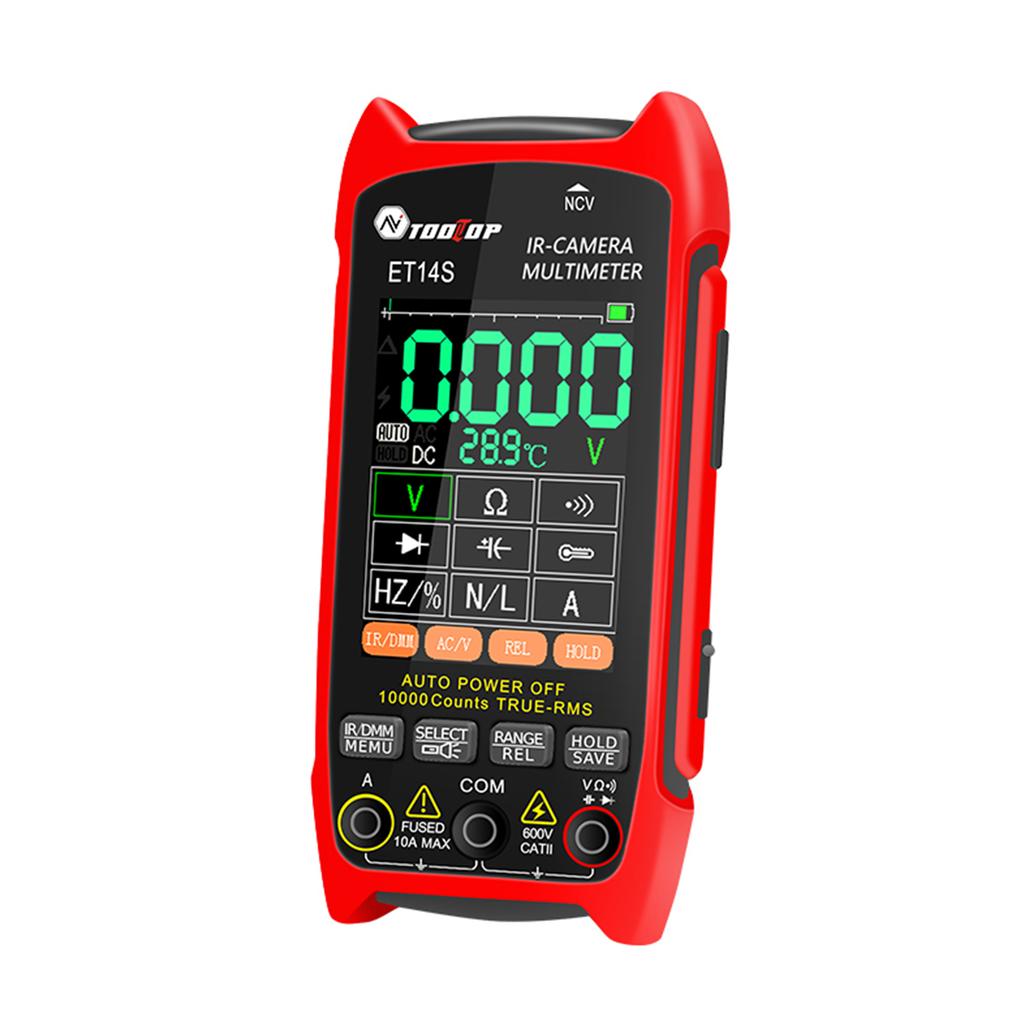

4. 10000 Count Multimeter Function: The multimeter has comprehensive functions, including DC voltage, AC voltage, DC current, AC current, resistance, diode, on-off, capacitance, temperature, NCV (non-contact measurement), LIVE (zero line recognition) and other measurement modes. In addition, with the help of multimeter data chart recording and data transmission functions, measurement data can be saved in the device and transmitted to the computer through USB interface for in-depth analysis using upper computer software.
5. Intelligent Power-saving and Convenient Charging: Equipped with a built-in 3.7V 2000mAh lithium battery, supports USB charging, and has automatic screen and shutdown functions, effectively extending battery life. Equipped with a USB Type-C data transfer interface, it facilitates data transfer and analysis, further improving work efficiency and portability.
Specification:
Item: Thermal Imaging MultimeterMain Material: ABSMain Color: Red, BlackBattery: 1 * Built in 2000mAh Lithium BatteryImage Capture Frequency: 25HzThermal Imaging Pixel: 240 * 240Display Image Resolution: 240 * 240Field of View (Fov): 50.0 ° (H) × 50 ° (V)/72.1 ° (D)Emissivity: Adjustable from 0.1-0.99, Default 0.95Measurement Temperature Range: -20 celsius to+550 celsius Mode: Automatic GainColor Palette: Iron Red, Rainbow, Fusion, White Heat, White Heat HighlightsTemperature Measurement Error:>0 celsius ± 2 celsius or ± 2percent ≤ 0 celsius ± 5 celsius or ± 5Display Temperature Accuracy: 0.1 celsius /0.1 Fahrenheit Multimeter Parameters:DC Maximum Input Voltage: 1000VMaximum Input Voltage for Communication: 750VMaximum Measured Current: 10AMaximum Measured Resistance: 99.9 Μ ΩMaximum Measured Capacitance: 99.99 mFDuty Cycle Measurement Range: 0.1percent -99.9percent Diode Measurement Range: 0V-3VMaximum Resistance for on-off Detection: 999.9 ΩDisplay Quantity: 9999 Words Updated Approximately 3 Times Per SecondOther Parameters of the Device:Display Screen: 2.8inches, 240 * 320 ResolutionTouch Screen: Resistive Touch ScreenUSB Interface: Type-C USBStorage Capacity: 7.5MBImage Format: BMP FileStorage Temperature: -20-60 celsius (-4-140 Fahrenheit )Working Temperature: 0-50 celsius (32-122 Fahrenheit )Working Humidity:< 85percent RH (Non Condensing)Product Size: 13.5*6.5*3cm/5.31*2.56*1.18inchPackage Size: 18*11*6cmPackage Weight: 180g
Package List:

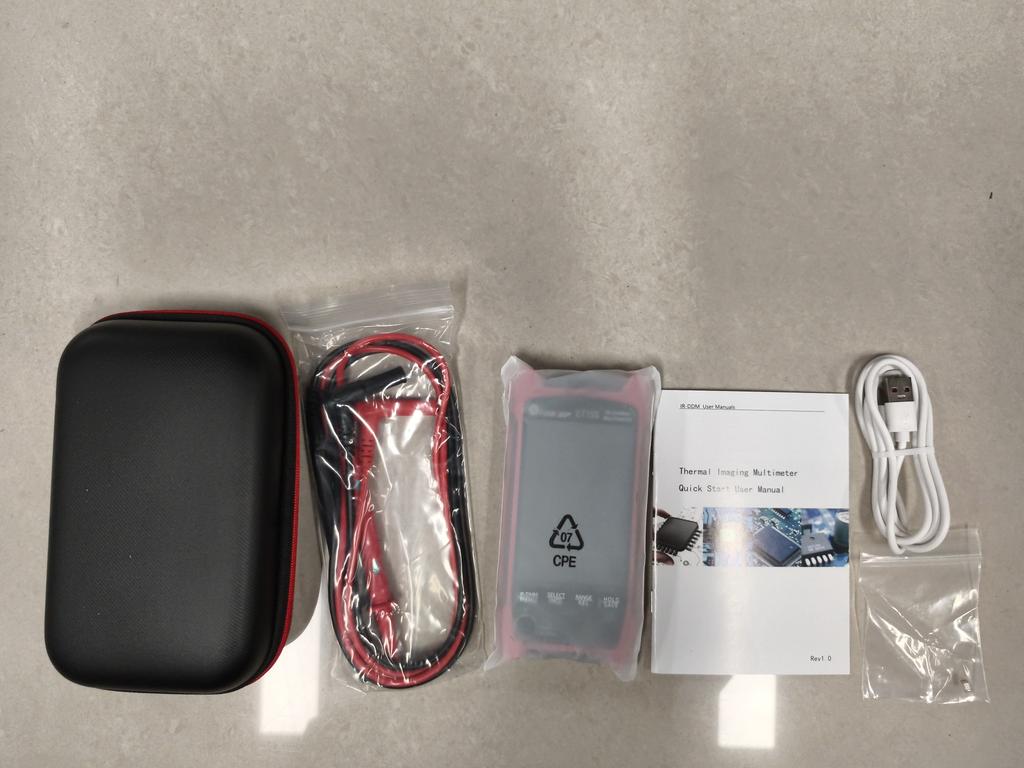

1 * Thermal Imaging Multimeter1 * Instruction Manual2* Pen Sets1 * Charging Cable1 * Fuse1 * Cloth Bag
