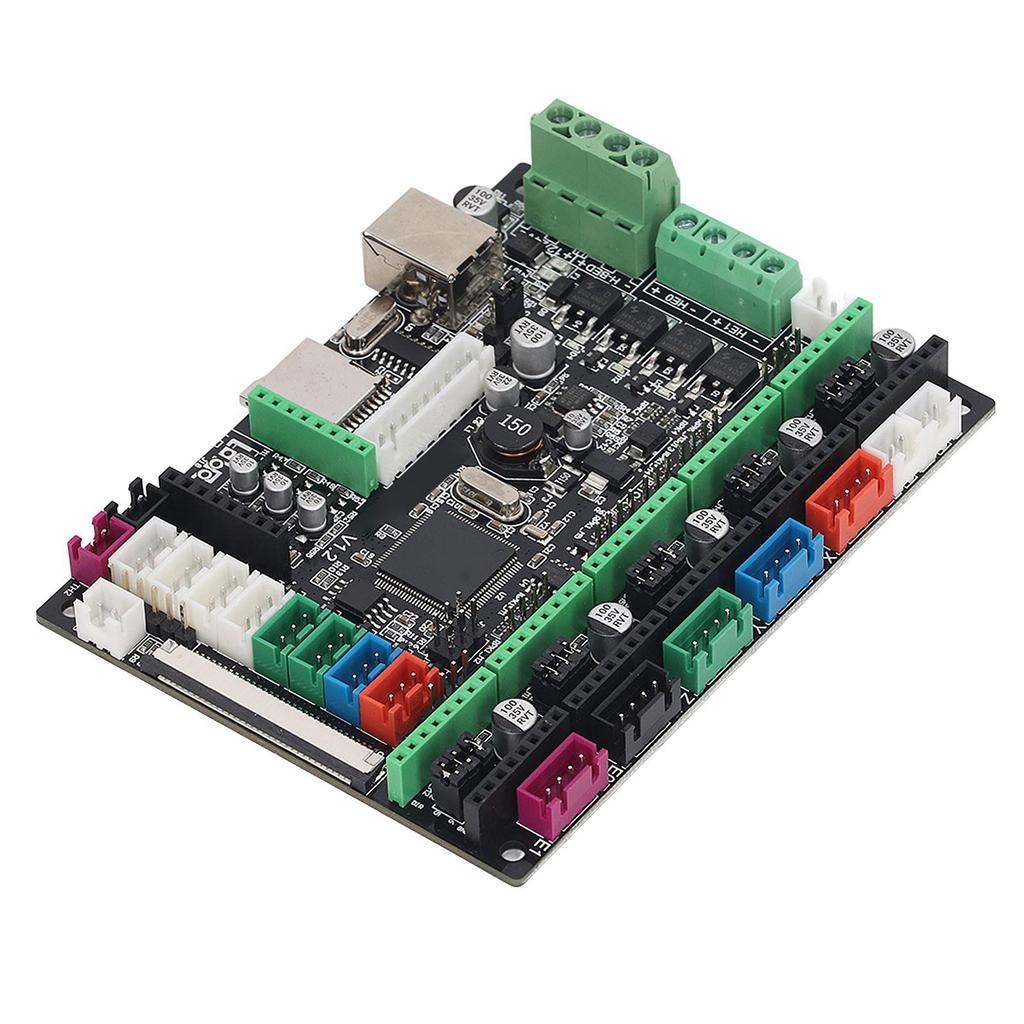

3D Printer 12?24V Motherboard Connecting Cable Stepper Motor Driver Heat Sink Kit 3D Printing

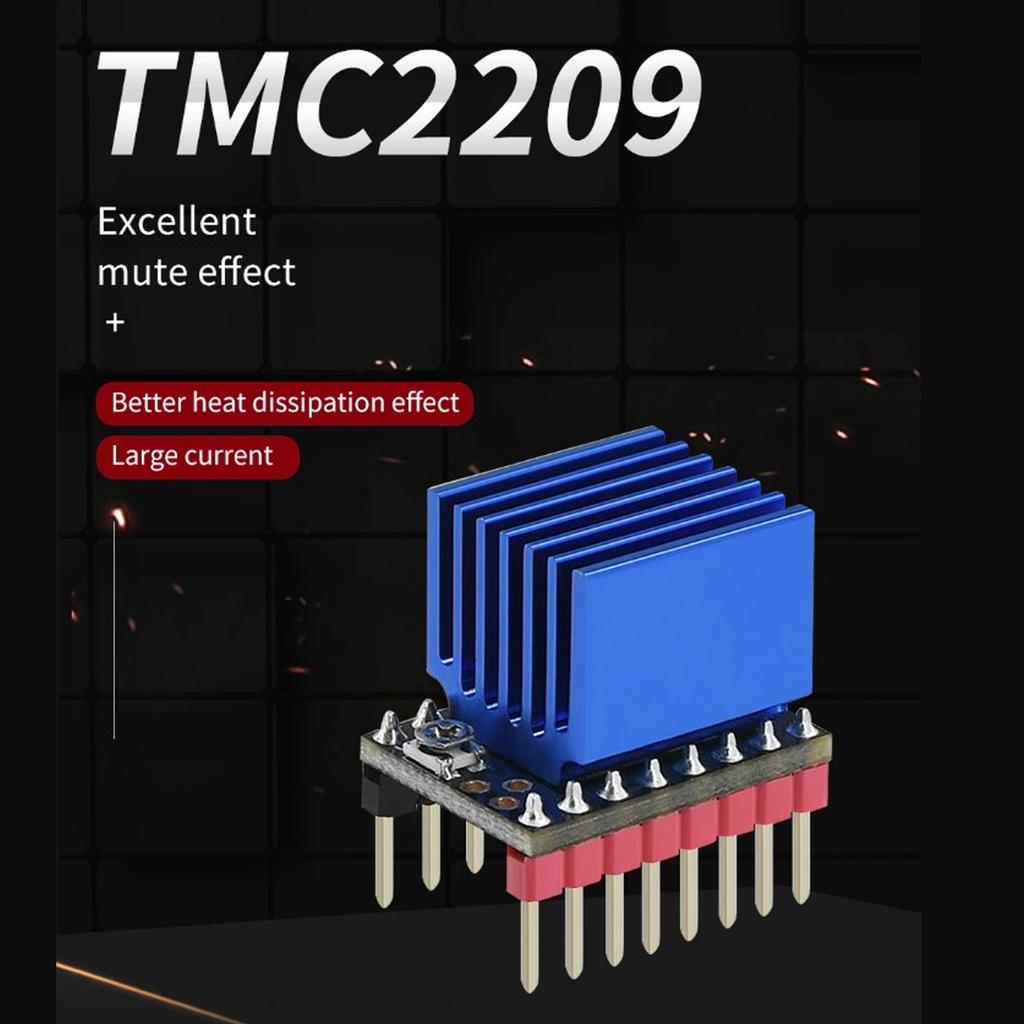

Feature: 1. Support Touch Screen: This 32 bit 3D printing motherboard is supported for TFT 3.5in touch screen(not including). Efficient heat dissipation. 2. Stepper Motor Driver: This 3D printer motherboard kit is with the stepper motor driver which allows no noise, high accuracy chopper algorithm. 3. 256 Subdivision: The stepper motor driver interpolation unit provides up to 256 subdivisions, enabling perfect sinusoidal control even in systems with limited pulse frequencies. 4. Versatile: You can design your own startup icon and all the buttons with this 3D printing motherboard kit, and you can customize at least 15 commanding buttons. Supports breakpoint resume, power saving, power failure detection, automatic shutdown and other functions. 5. Via Storage Card: This 3D printing motherboard kit is available via storage card to upgrade and with high speed WiFi module. Specification: Item Type: 3D Printer Control Motherboard Opening Size: Approx. 102 x 76mm 4 x 3in External Size: Approx. 110 x 84mm 4.3 x 3.3in Processor: For STM32 Input Voltage: 12V24V 5A15A Stepper Driver: 4988, 8825, 8729, 2100, 2208. Temperature Sensor Interface: For NTC100K, 31855 Print File Format: G Coding Support Machine Building: For XYZ, for Kossel, for Corexy Recommended Software: For Cura, For Simplify3d, For Pronterface, For Prpetier Host Firmware Upgrade: Storage Card Stepper Motor Driver Model: TMC2209 V2.0 Material: PCB, Aluminum Alloy Micro Step: 256 Subdivision Drive Current: 2.8A Configuration: STEP Or DIR Or UART Default Factory Current: 0.85A Load Drive Motor Voltage: 5.528V IC Logic Working Voltage: 35V Application: All Kinds Of 3D Main Control Board Recommended Current: No More Than 1.7A. Package List: 1 x Motherboard 1 x Connecting Cable5 x Driver5 x Heat Sink Note: Stepper Motor Driver Notes:1. For Verf measure the voltage of for Gnd and potentiometer.2. Please do not connect the motor when measuring the voltage, otherwise it is easy to burn out the driver.3. Please connect the power supply when measuring the voltage, do not only connect the USB power supply.4. Please pay attention to the direction, please do not insert by mistake!Support Touch Screen: This 32 bit 3D printing motherboard is supported for TFT 3.5in touch screen(not including). Efficient heat dissipation. Stepper Motor Driver: This 3D printer motherboard kit is with the stepper motor driver which allows no noise, high accuracy chopper algorithm. 256 Subdivision: The stepper motor driver interpolation unit provides up to 256 subdivisions, enabling perfect sinusoidal control even in systems with limited pulse frequencies. Versatile: You can design your own startup icon and all the buttons with this 3D printing motherboard kit, and you can customize at least 15 commanding buttons. Supports breakpoint resume, power saving, power failure detection, automatic shutdown and oth Via Storage Card: This 3D printing motherboard kit is available via storage card to upgrade and with high speed WiFi module.
