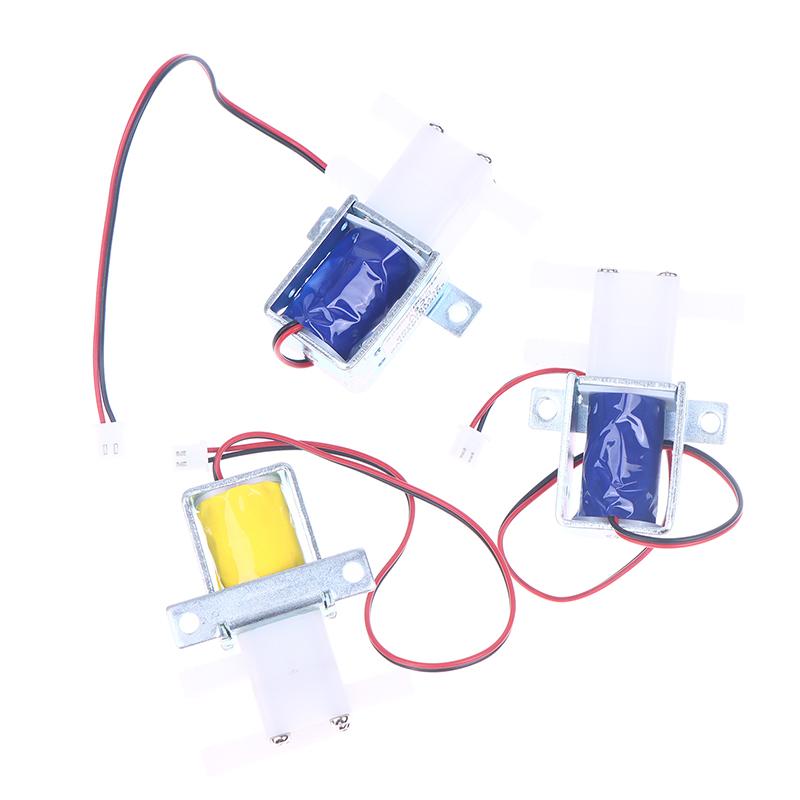

DC 6V/12V/24V Two-Position Three-Way Electric Solenoid Valve N/O N/C For Water Air Dual-Use Chiller Dehumidifier Valve

Specifications: Material: Plastic+Metal Size: 2.36*1.97in/6*5cm Colors: As Shown in the Picture Rated voltage: DC 6.0V / 12.0V / DC 24.0V Rated current: < 450mA < 200mA < 220mA Pressure range: 0-300 Kpa Sealability: The inflation is stopped after the inflation pressure is from 0 to 300 mmHg in a 500 cc container, and the pressure reduced is less than 5 mmHg/min after 30 seconds of stabilization. Use fluid: Water / Air Service life: In a 500CC container, inflate for 10 seconds and exhaust for 5 seconds for a loop test more than 50,000 times. Operating temperature range: 0℃ ~90℃ Power: < 6W Working mode: Normally Closed and Normally Open Working principle: When power on, port 1 and port 2 open, port 3 closed; When power off, port 1 and port 3 open, port 2 closed. Package Included: 1 x Mini Valve Note: 1. Please note that the photo does not show actual size please refer to Description for size details. 2. Please allow differences due to manual measurement thanks. 3. Due to the difference between different monitors the image may not reflect the actual color of the item.
