A.T.FIELD Dial-Type Temperature Control Soldering Iron, Zero Model ATF-1003

This soldering iron, featuring the motif of Eva Unit-0, is a collaboration between the Evangelion work brand "A.T.FIELD EVANGELION WORK" and Hakko, a soldering iron manufacturer that produces a wide range of tools for both professional and hobby use.

This model packs professional-grade performance, including temperature control, into a single grip.

Lightweight and fast heating, it's ideal for soldering electronic components such as ICs, LEDs, and printed circuit boards.

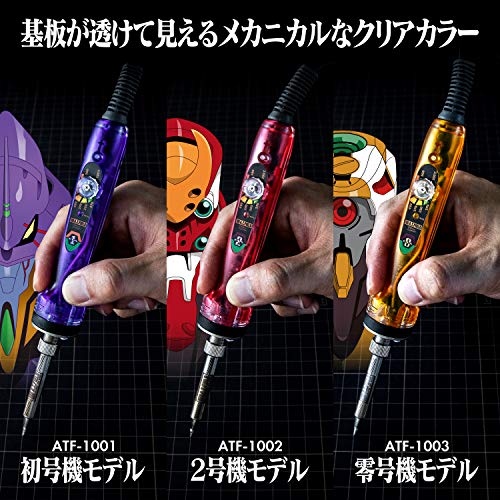

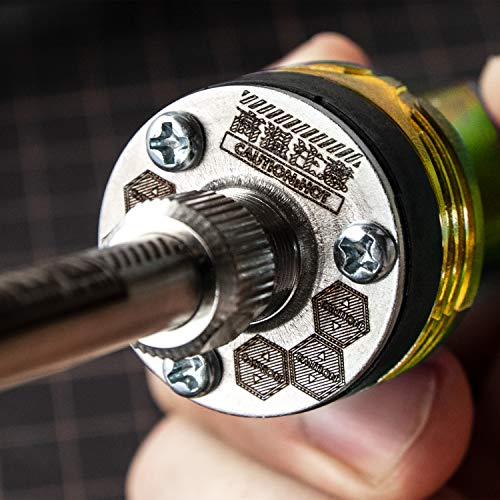

The mechanical clear color allows the circuit board to be seen through, and the laser markings on the metal parts express the world of Evangelion. The unit number logo on the grip illuminates with an LED during use.

The temperature can be adjusted from 200 to 500°C by simply turning the dial (no temperature controller required). Easily adjust the optimal temperature for your task. The LED lamp indicates temperature changes (it lights up when the temperature is rising, flashes when the set temperature is reached, and turns off when the temperature is decreasing).

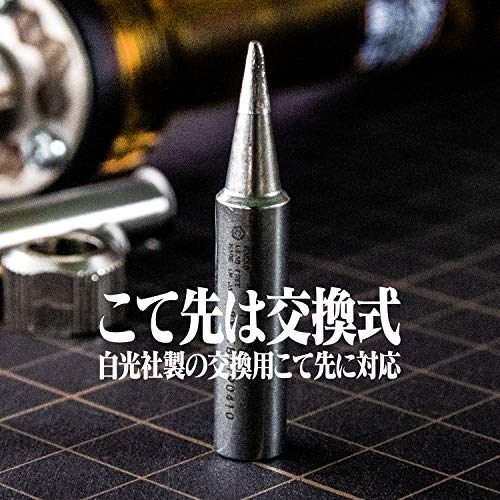

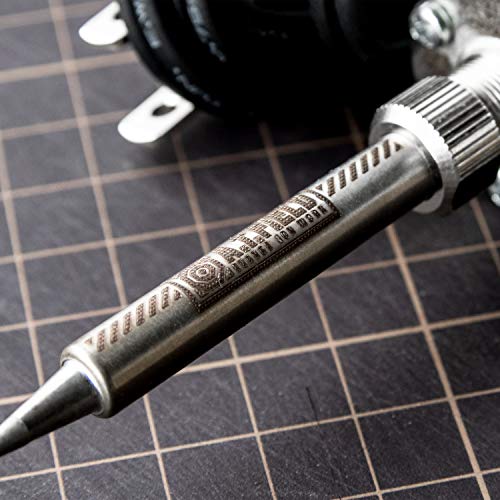

This ceramic heater type quickly reaches the set temperature, allowing for speedy work. Its excellent insulation properties make it suitable for soldering delicate electronic components such as ICs. The short length from grip to tip makes it feel like holding a pencil. ●The tip has been redesigned with an improved exterior, design, and internal structure for excellent thermal conductivity, achieving a powerful heat recovery rate without increasing power consumption (wattage). ●The tip is a "lead-free" iron that does not contain lead, which is harmful to the environment and human body. It can also be used with lead-free solder. ●Equipped with a lock function that prevents temperature changes by removing the dial. A lock key is included for changing the temperature while locked. ●Compatible with over 30 types of Hakko replacement tips. Size: Approx. 30 x 233 x 30 mm (with tip, excluding power cord) Weight: Approx. 61 g (with tip, excluding power cord) Power Supply: AC 100V 50/60 Hz, Power Consumption: 50 W, Temperature Range: 200-500°C Ripple Temperature: ±1°C (No Load) Heater: Ceramic Included Tip: Length 14.5 mm, Tip R0.5 (Manufacturer Part Number: T18-B) Replacement Tip: Hakko T18 Series (Manufacturer Part Numbers: T18-)
