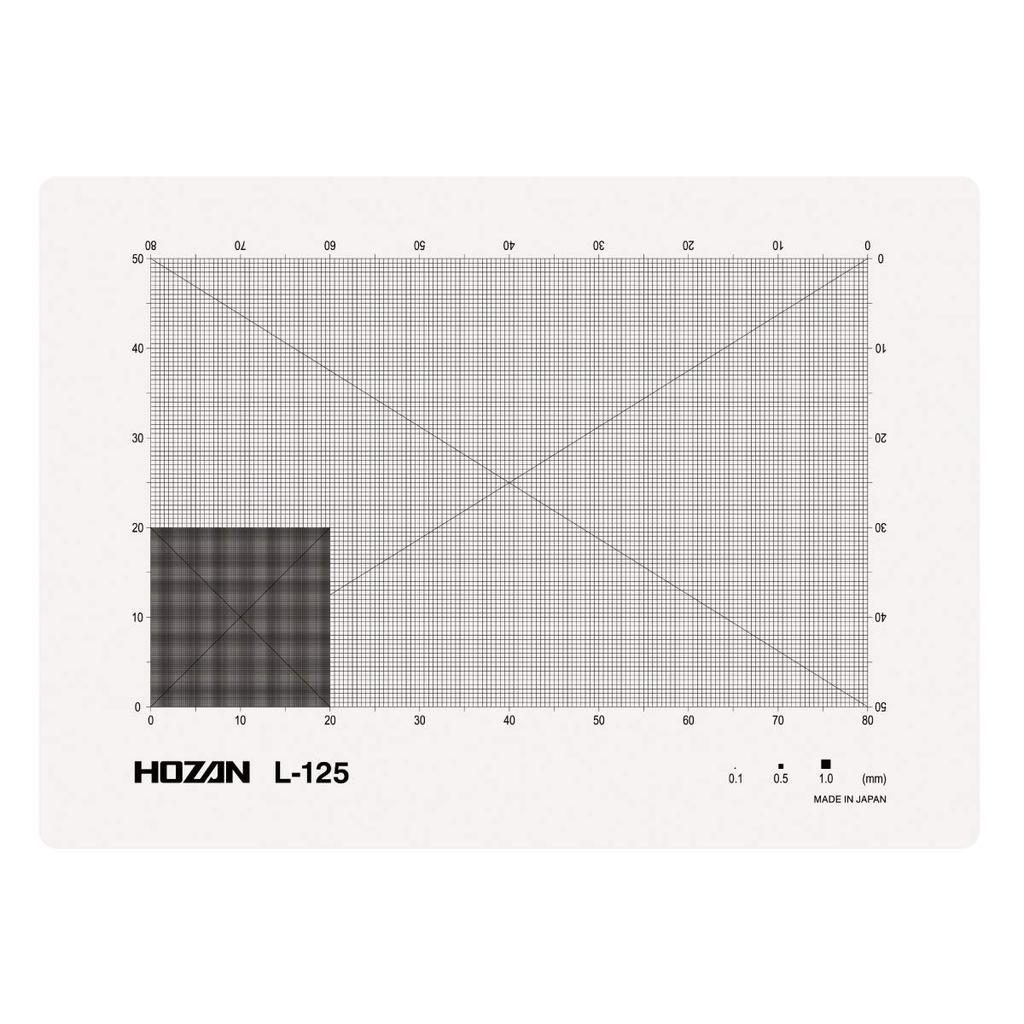

HOZAN L-125 Scale Sheet, Square Gauge, for Checking and Measuring the Size of Small Parts, Dimensions: 75 X 105mm

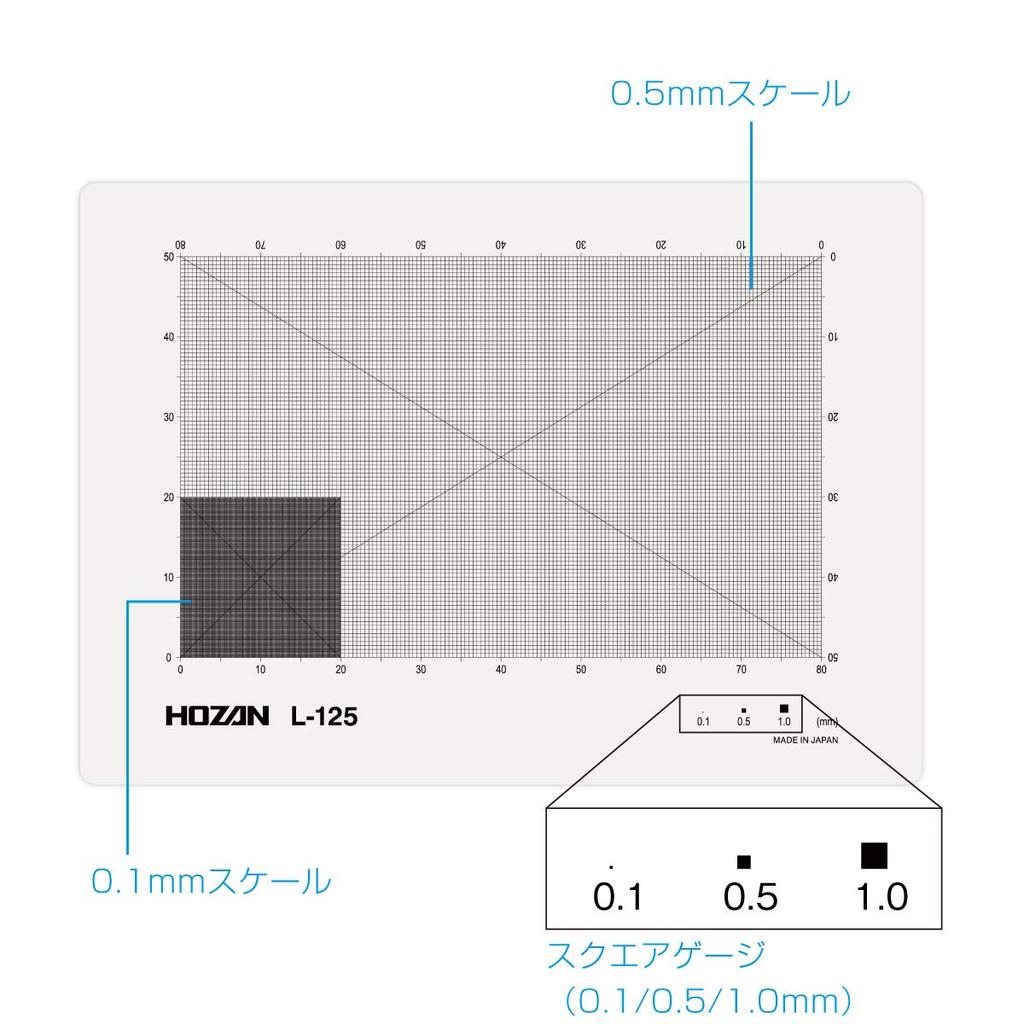

The L-125 scale sheet is an essential tool for checking the size and measuring of tiny parts. Its use in conjunction with a microscope allows for highly accurate measurements. It comes with two pitches, 0.1mm and 0.5mm, making it suitable for a wide range of applications. The ultra-fine 0.007mm line width ensures clear visibility even at high magnifications. It features scale markings on the top, bottom, left, and right, allowing for free rotation for measurements from various angles. Dimensions: 75 x 105mm; Scale: 50 x 80mm (±0.005mm); Line Pitch: 0.1mm/0.5mm; Line Width: 0.007mm (±0.001mm); Thickness: 0.175mm; Material: Polyester The L-125 scale sheet is an essential tool for checking the size and measuring of tiny parts. Its use in conjunction with a microscope allows for highly accurate measurements. Available in two pitches, 0.1mm and 0.5mm, it is suitable for a wide range of applications. The ultra-fine 0.007mm line width ensures clear visibility even at high magnifications. It features scales on the top, bottom, left, and right, allowing for free rotation for measurements from various angles. [External Dimensions] 75 x 105mm [Scale] 50 x 80mm (±0.005mm) [Line Pitch] 0.1mm/0.5mm [Line Width] 0.007mm (±0.001mm) [Thickness] 0.175mm [Material] Polyester
