Feature:
1. High Efficiency: The maximum power tracking algorithm is adopted to significantly improve the energy utilization rate of the system, and the charging efficiency is 30% higher than that of the PWM method. It has faster response speed and higher tracking efficiency.
2. Full Protection: With multiple protections, such as battery reverse connection protection, PV reverse connection protection, PV short circuit protection, charging overcurrent protection. Support for Modbus protocol to meet the communication needs in various environments.
3. Adjustable Parameters: Provides current limiting charging mode, when the power of the solar panel is too large and the charging current is higher than the rated value, the controller automatically reduces the charging power to make the solar panel work under the rated charging current.
4. Safe to Use: Built in temperature compensation, through derating charging, no need for a fan, and stable operation in extreme temperature environments. The LCD screen can check the operation data and status of the equipment.
5. Multi Purpose: Solar charger controller supports a variety of batteries such as lithium batteries, gel batteries, etc., suitable for solar photovoltaic systems such as home power generation, base stations, RVs, yachts, ships, etc.
Specification:

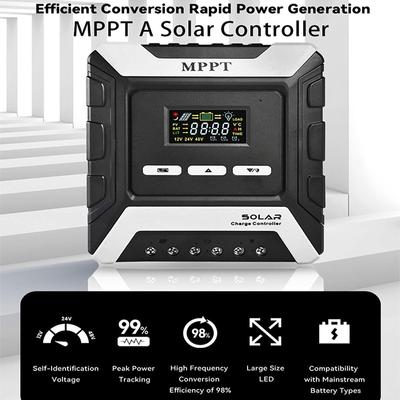

Item Type: Solar Charger Controller
Material: ABS
Charging Type: MPPT
Working Voltage: 12V 24V Automatic Identification
Maximum Charge and Discharge Current: 30A
Maximum Open Circuit Voltage of Solar Panel: 100V (at the lowest temperature), 92V (at the standard temperature of 25℃)
Maximum Photovoltaic Input Power: 390W (12V), 780W (24V)
USB Output Voltage: 5V 1A x 2
Standby Consumption: ≤50mA
Working Temperature: -20℃-+55℃
Terminal Wire Gauge: 10mm² per 7AWG
Waterproof Grade: IP30
Rechargeable Battery: Flooded battery, colloidal battery (GEL), maintenance free battery, lithium battery
Applicable Scenarios: Solar photovoltaic systems such as home power generation, base stations, RVs, yachts, ships, etc.
Package List:
1 x Solar Charger Controller
1 x Manual
