[Important Note - For Overseas Customers]
Thank you for purchasing this product. Please read the following important notes carefully before using this product overseas.
1. Legislation and safety standards
This product complies with Japanese safety standards. Please check compatibility with local regulations and safety standards before use in your country.
Certain product categories (electronics, cosmetics, food, etc.) may require certification from the importing country.
2. About electrical products
[Voltage compatible]
When using electrical appliances, please note that they are designed according to Japanese voltage specifications (90-110V), so using them at a different voltage may cause malfunctions.
[Plug type]
Our products use the Japanese plug type (A type or B type).
Please use a conversion adapter if necessary.
[Important notes regarding transformers and adapters]
A transformer adjusts the voltage to suit the requirements of the equipment.
Conversion adapters only change the shape of the plug and do not adjust the voltage.
Using only the conversion adapter without a transformer may damage the product.
[About responsibility]
We are not responsible for any failure or damage caused by improper usage, such as operating the product without a transformer.
3. Language and manual
Product instructions and displays may only be in Japanese.
Body size (approx.): [Base] Height 57 x Width 31 mm

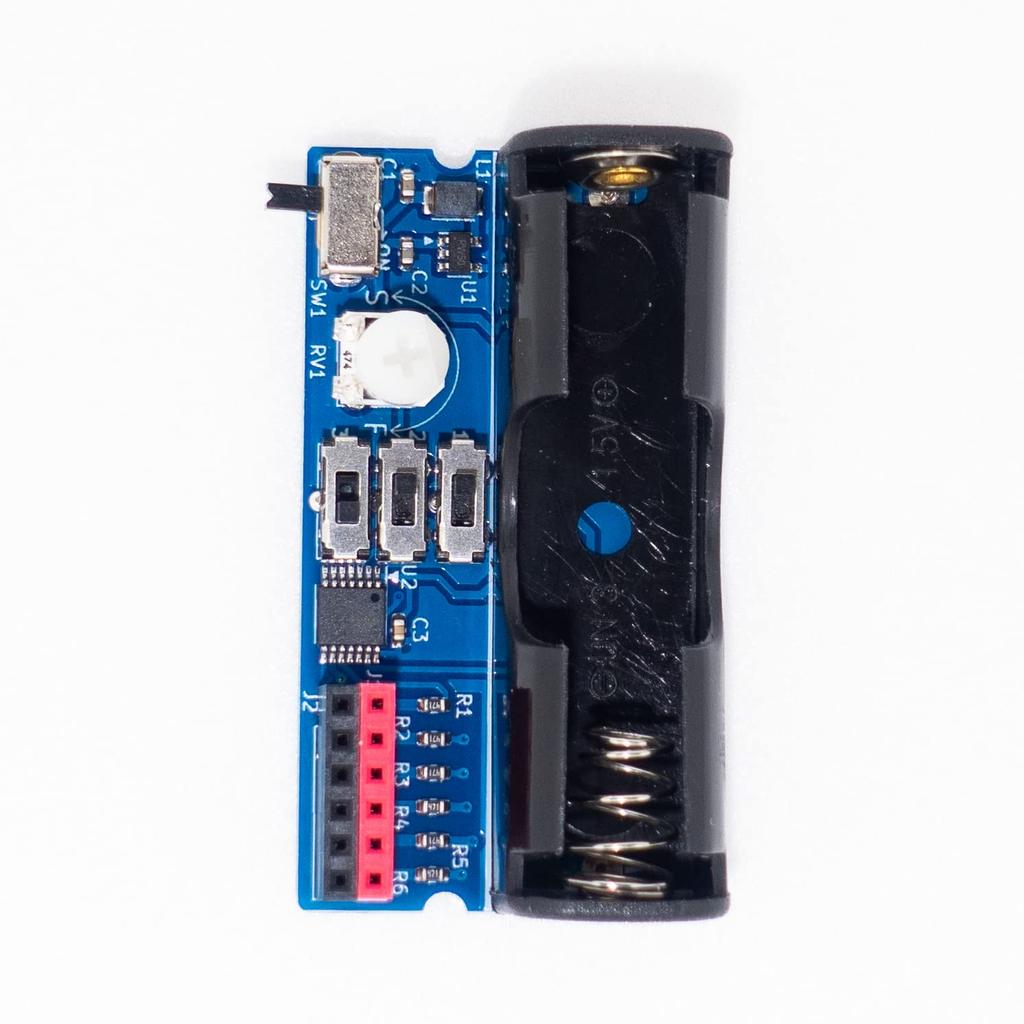

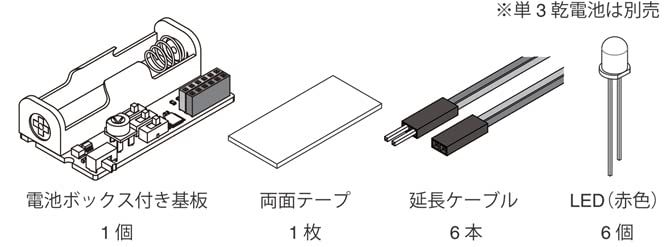

Just plug in your LED and you're ready to go! [Features] - This battery box comes with a pre-assembled circuit board that can light up six LEDs in eight different lighting patterns using a single AA battery. - Simply plug your LED into the connector to light it up, eliminating the need to worry about calculating the resistors needed for your LED circuit! - With eight lighting patterns, it can be used to light up your homemade models or for simple illumination. [How to Use] - Simply insert an AA battery into the battery box and plug your LED into the connector on the main unit. - You can also use the included extension cable to move the LED away from the circuit board. - You can also combine LEDs of different colors. [Specifications] - Power Supply: 1 x AA alkaline battery (sold separately) or 1 x NiMH rechargeable battery - Circuit Board Size: 57mm x 31mm (excluding protrusions) - Maximum Number of LEDs Connected: 6 - Current Draw: Maximum 28-165mA (Varies depending on lighting pattern and speed, etc.) [Lighting patterns] Flashing mode, Slow flashing mode, Dimming mode, Random flashing mode, One-way sequential lighting mode, Round-trip sequential lighting mode, One-way sequential lighting mode with afterglow, Round-trip lighting mode with afterglow
Reverse lighting mode
